Greenlee ECCXL - Head and Ram Assembly (EK12 IDL)

Battery-powered Pistol Grip Tools
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
17

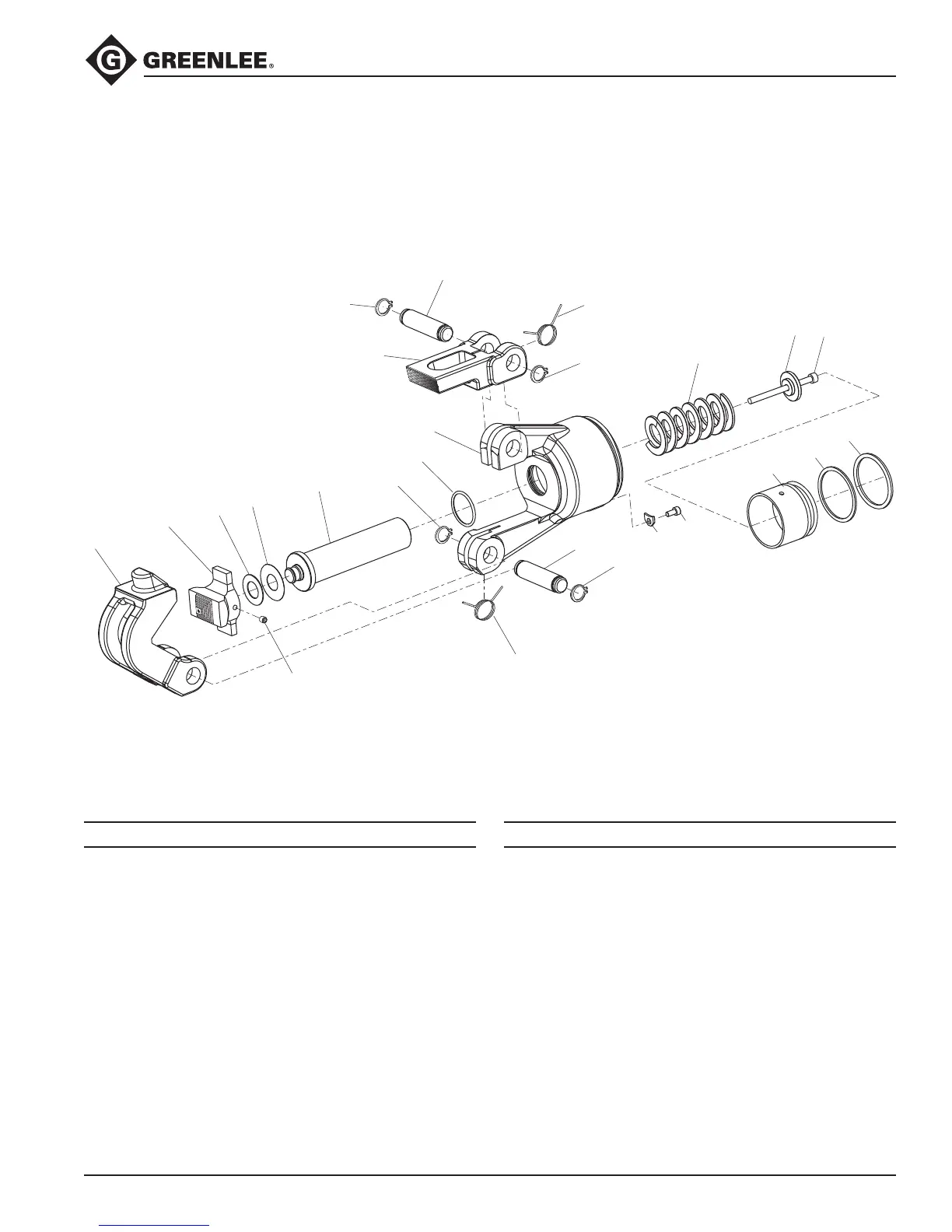

Head and Ram Illustration and Parts List—EK12IDL
52024011 Head and ram unit (includes 1–17)
1 52020271 Yoke ........................................................... 1
2 O-ring (included in 52054906) ................... 1
3 52020510 Ram ........................................................... 1
4 52020512 Spacer, .010 x 1.181 x .531.......(as needed)
5 50337300 Spacer, .025 x .997 x .549.........(as needed)
6 52025013 Indenter ..................................................... 1
7 90513533 Retaining ring ............................................ 4
8 52020513 Pivot pin .................................................... 2
9 Screw, #10-32 x .25 skt set cone pt ......... 1
10 52064268 Crimp head ................................................ 1
11 52020273 Latch ......................................................... 1
Key Part No. Description Qty
12 50111230 Torsion spring ............................................ 2
13 Spring ........................................................ 1
14 Screw, M6-1.0 x 80 mm skt head cap ...... 1
15 End cap ..................................................... 1
16 Screw, M5-0.8 x 10 mm skt head cap ...... 1
17 Stop ........................................................... 1
20 O-ring (included in 52054906) ................... 1
21 Backup ring (included in 52054906) .......... 1
22 50067796 Piston ........................................................ 1
52021550 Spring kit (includes 2, 13–17)
Key Part No. Description Qty
10
6
3
8
8
11
7
1
7
12
7
5
4
9
12
16
17
7
2
13
14
15
22
21
20
