Greenlee ECCXL - Head and Ram Assembly (ESG55 L)

Battery-powered Pistol Grip Tools
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
26

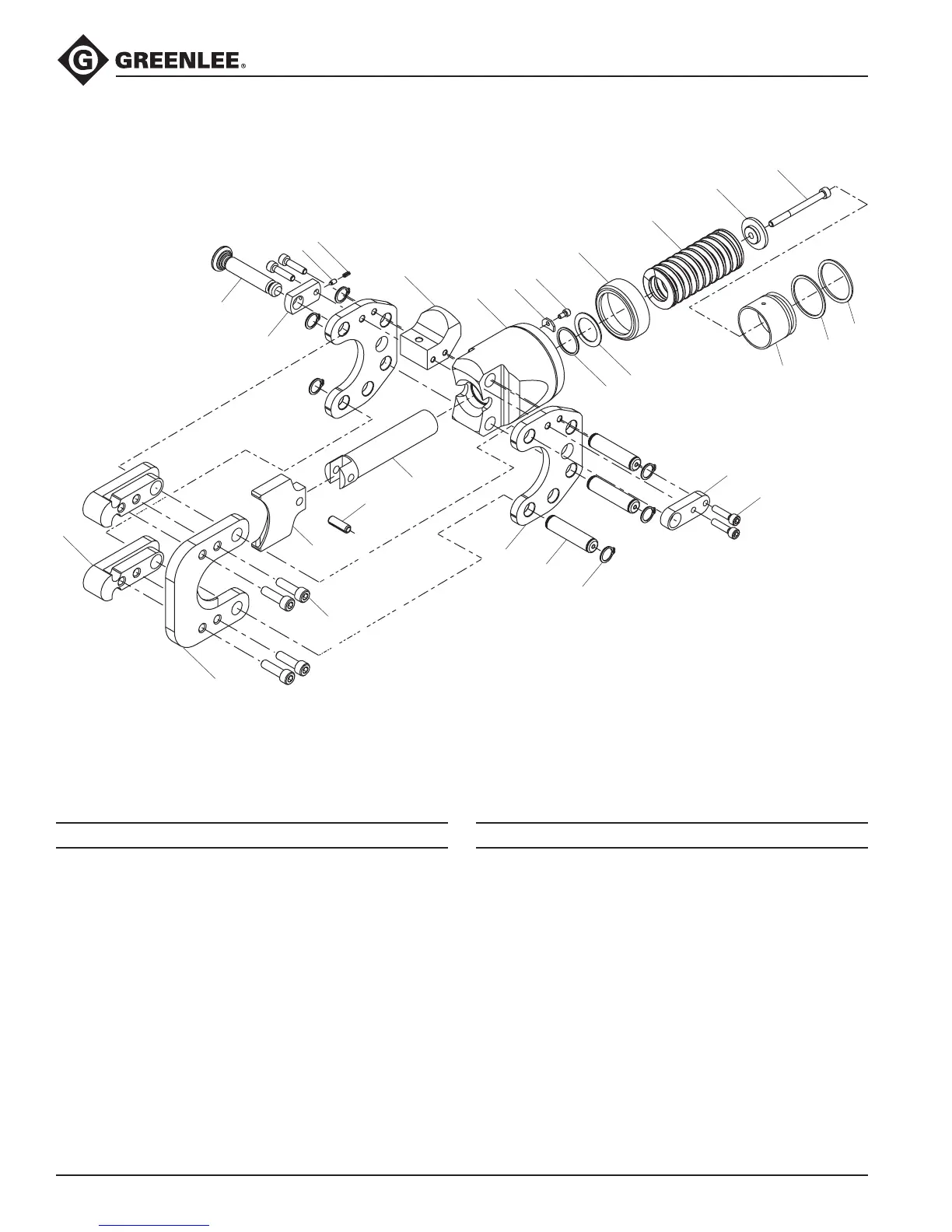

Head and Ram Illustration and Parts List—ESG55L
52056980 Head and ram unit (includes 1–26)
1 50066951 Spring bolt ................................................. 1
2 50066900 End cap ..................................................... 1
3 Spring ........................................................ 1
4 Spring guide .............................................. 1
5 Adapter disk .............................................. 1
6 O-ring (included in 52054906) ................... 1
7 Screw ........................................................ 1
8 Stop ........................................................... 1
9 Cutting head base ..................................... 1
10 Handle block ............................................. 1
11 Compression spring .................................. 1
12 Ball pin indent ........................................... 1
13 Pin assembly ............................................. 1
15 Pin guide ................................................... 1
Key Part No. Description Qty
16 Frame plate ............................................... 2
17 Screw ........................................................ 4
18 Spacer ....................................................... 1
19 Retaining ring ............................................ 6
20 Pin ............................................................. 3
21 Blade holder .............................................. 1
22 Pin ............................................................. 1
23 Cutting blade ............................................. 1
24 Screw ........................................................ 4
25 Cutting head .............................................. 1
26 Blade guide ............................................... 2
27 O-ring (included in 52054906) ................... 1
28 Backup ring (included in 52054906) .......... 1
29 50067796 Piston ....................................................... 1
Key Part No. Description Qty
1
2
3
4
7
8
9
18
6
5
17
20
19
16
10
12
11
15
21
22
23
24
25
26
13
29
28
27
