Greenlee ECCXL - Head and Ram Assembly (EK1240 L, EK1240 CL)

Battery-powered Pistol Grip Tools
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
20

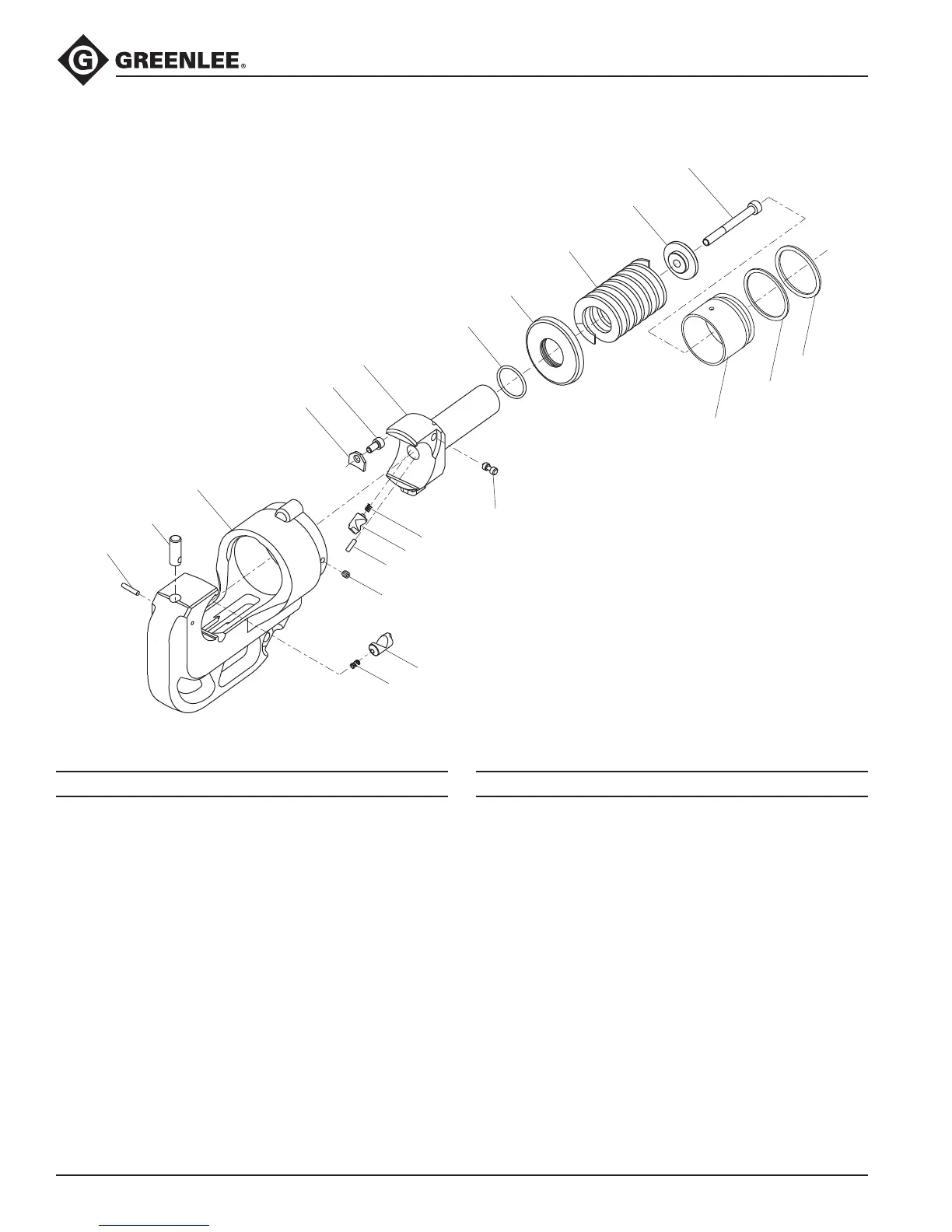

Head and Ram Illustration and Parts List—EK1240L, EK1240CL
50766056 C-head assembly, 42 mm
(includes 1A, 2–7)
50766063 C-head assembly, 42 mm,
PVC-covered (includes 1B, 2–7)
1A C-head, 42 mm ......................................... 1
1B C-head, 42 mm, PVC-covered .................. 1
3 50038214 Compression spring .................................. 1
4 90550633 Groove pin ................................................. 1
5 50053175 Die release button ..................................... 1
6 50053191 Die release pin ........................................... 1
7 Set screw, M5-0.8 x 5 mm skt cup pt ....... 1
50053787 Ram assembly (includes items 8–12)
8 50038214 Compression spring .................................. 1
9 50053167 Die release pin ........................................... 1
10 50053183 Release shaft ............................................. 1
11 90550641 Spring pin .................................................. 1
12 Ram ........................................................... 1
Key Part No. Description Qty
50067087 Spring kit (includes 13-19)
13 Stop ........................................................... 1
14 Disc ........................................................... 1
15 Spring stop ................................................ 1
16 Screw, M5-0.8 x 10 mm skt head cap ...... 1
17 Screw, M6-1.0 x 80 mm skt head cap ...... 1
18 O-ring (included in 52054906) ................... 1
19 Ram spring ................................................ 1
20 O-ring (included in 52054906) ................... 1
21 Backup ring (included in 52054906) .......... 1
22 50067796 Piston ........................................................ 1
Key Part No. Description Qty
4
5
13
16
12
18
15
1
19
14
17
8
9
11
10
22
21
20
6
3
7
