Greenlee ECCXL - Head and Ram Assembly (E12 CCXL - Pre-June 2012)

Battery-powered Pistol Grip Tools
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
16

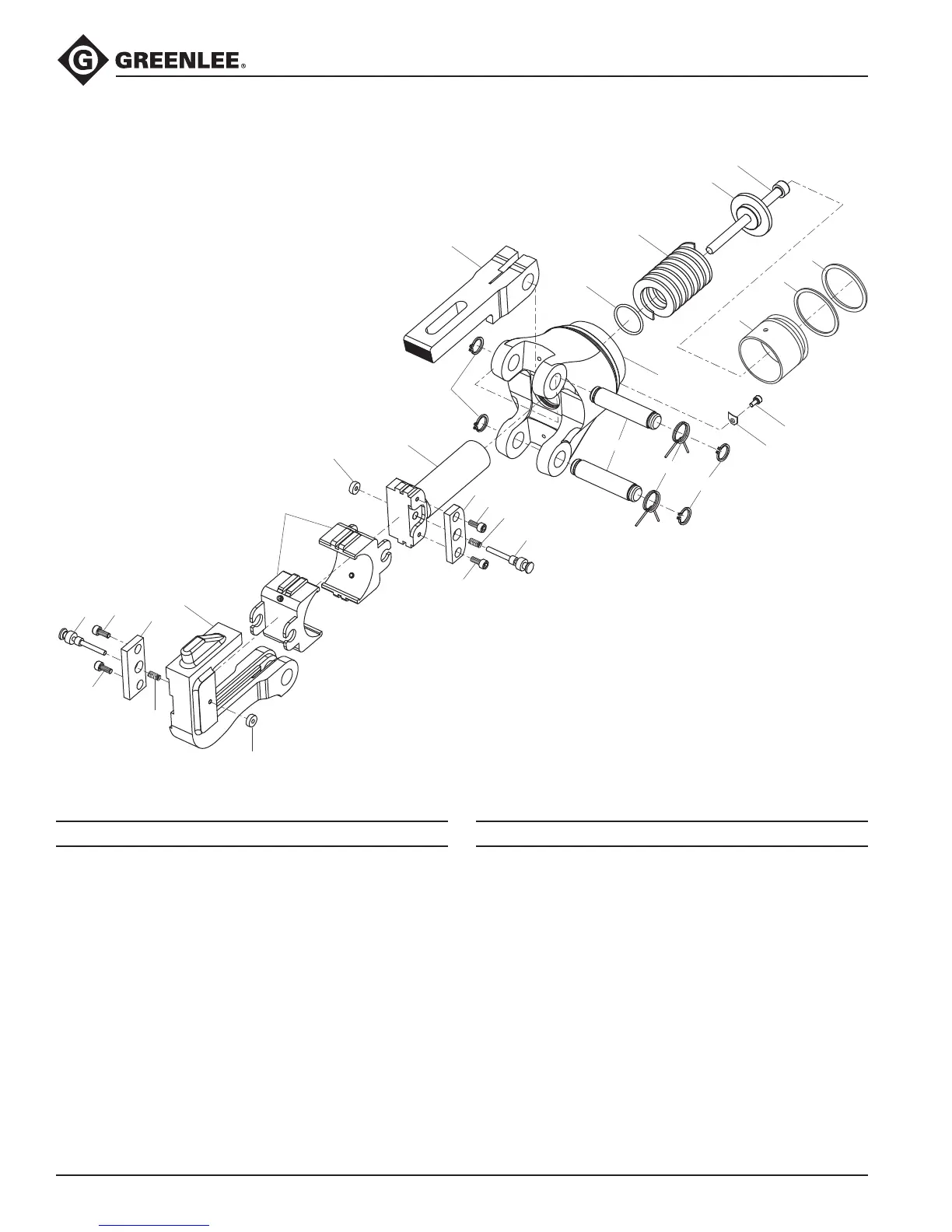

Head and Ram Illustration and Parts List—E12CCXL
For units manufactured before June 2012
1 52060029 Spring, torsion, ø.072 wire ........................ 2
50111230 Spring, torsion, ø.047 wire
(units preceding serial no. ALE535785) ..... 2
2 Adapter, U-type die ................................... 2
3 50419211 Compression spring .................................. 2
4 50066951 Screw ........................................................ 2
5 50066919 Compression spring .................................. 1
6 50066900 Disk ........................................................... 1
7 O-ring (included in 52054906) ................... 1
8 Screw, #8-32 x 3/8 skt head cap .............. 4
9 50111035 Fixed head ................................................. 1
10 50111051 Movable head ............................................ 1
11 50111060 Latch ......................................................... 1
12 50111205 Plate .......................................................... 1
Key Part No. Description Qty
13 50112244 Plate .......................................................... 1
14 50111086 Pin, pivot ................................................... 2
15 50111221 Piston ........................................................ 1
16 Pin, adapter lock ....................................... 2
17 Retaining disk ............................................ 2
18 90513533 Retaining ring ............................................ 4
19 Screw, M5-0.8 x 10 mm skt head cap ...... 1
20 50066943 Stop ........................................................... 1
21 O-ring (included in 52054906) ................... 1
22 Backup ring (included in 52054906) .......... 1
23 50067796 Piston ........................................................ 1
50118374 Adapter lock kit (includes 3, 16, 17)
52020102 UA12T, U-type die adapter set
(includes two of item 2)
Key Part No. Description Qty
4
6
5
7
11
18
15
17
2
10
8
13
8
1
18
14
8
3
3
12
16
8
17
9
21
22
23
20
19
16
