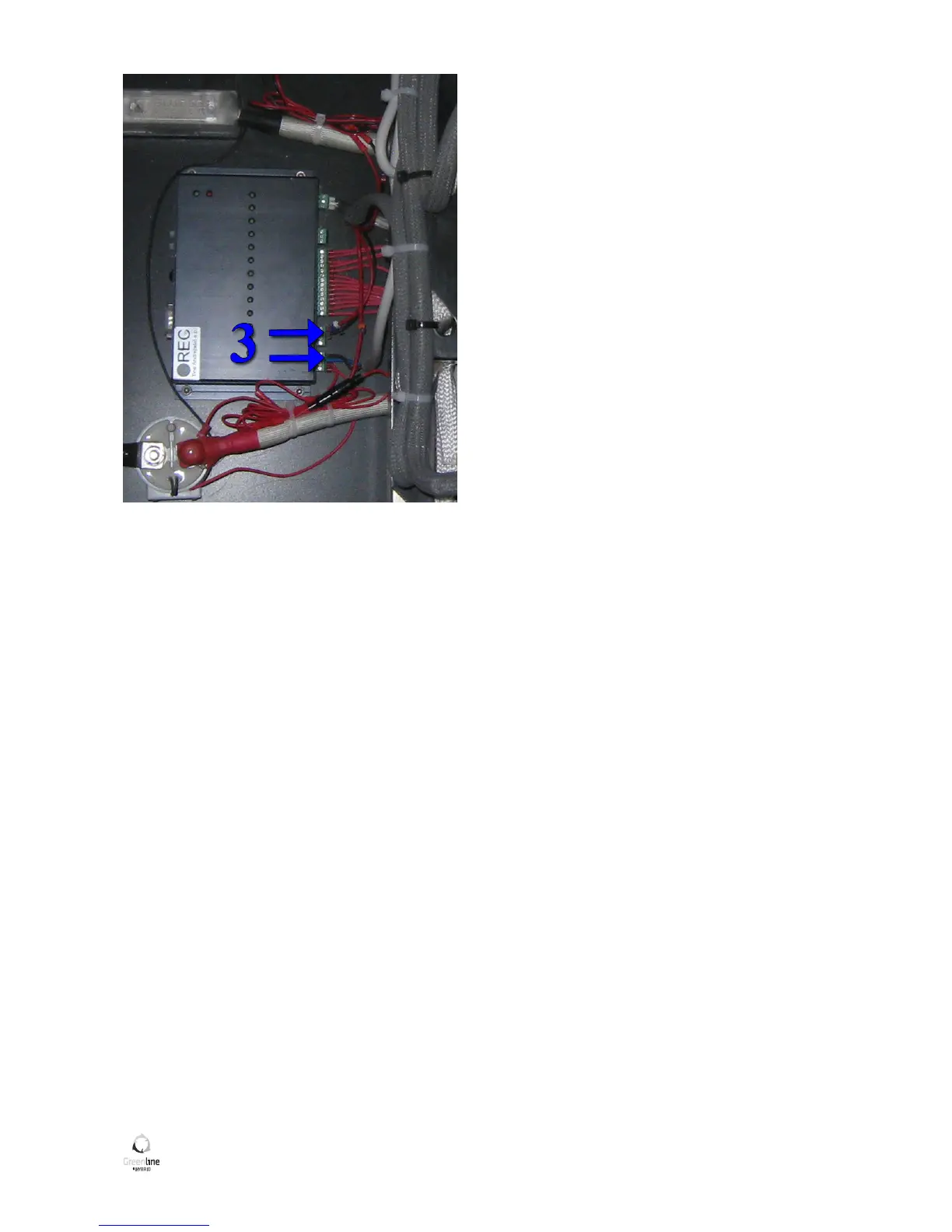

Picture 3: Step 3.
Step 1:
Turn off switch 3 and turn off diesel engine keys.
Step 2:
Turn OFF BMS.
Step 3:
Remove all cables (coming from the boat) from green BMS connector. The number of cables is not constant
(depending on boat packages), usually 4.
Remove these cables one by one! Mark them (cable with pin #)! Isolate them!
Step 4:
Disconnect temperature sensor (on ANL fuse).
Disconnect the positive signal cable (for battery monitor) from Tyco and isolate it.
Step 5:
Disconnect positive cable from Tyco contactor and isolate it.
