GREER Company MicroGuard 586 Operation/Setup Manual

GREER Company
1918 East Glenwood Place
Santa Ana CA 92705
Page 8 of 44
MicroGuard
®
586 Operation/Setup Manual
W458200 REV C 10/29/02

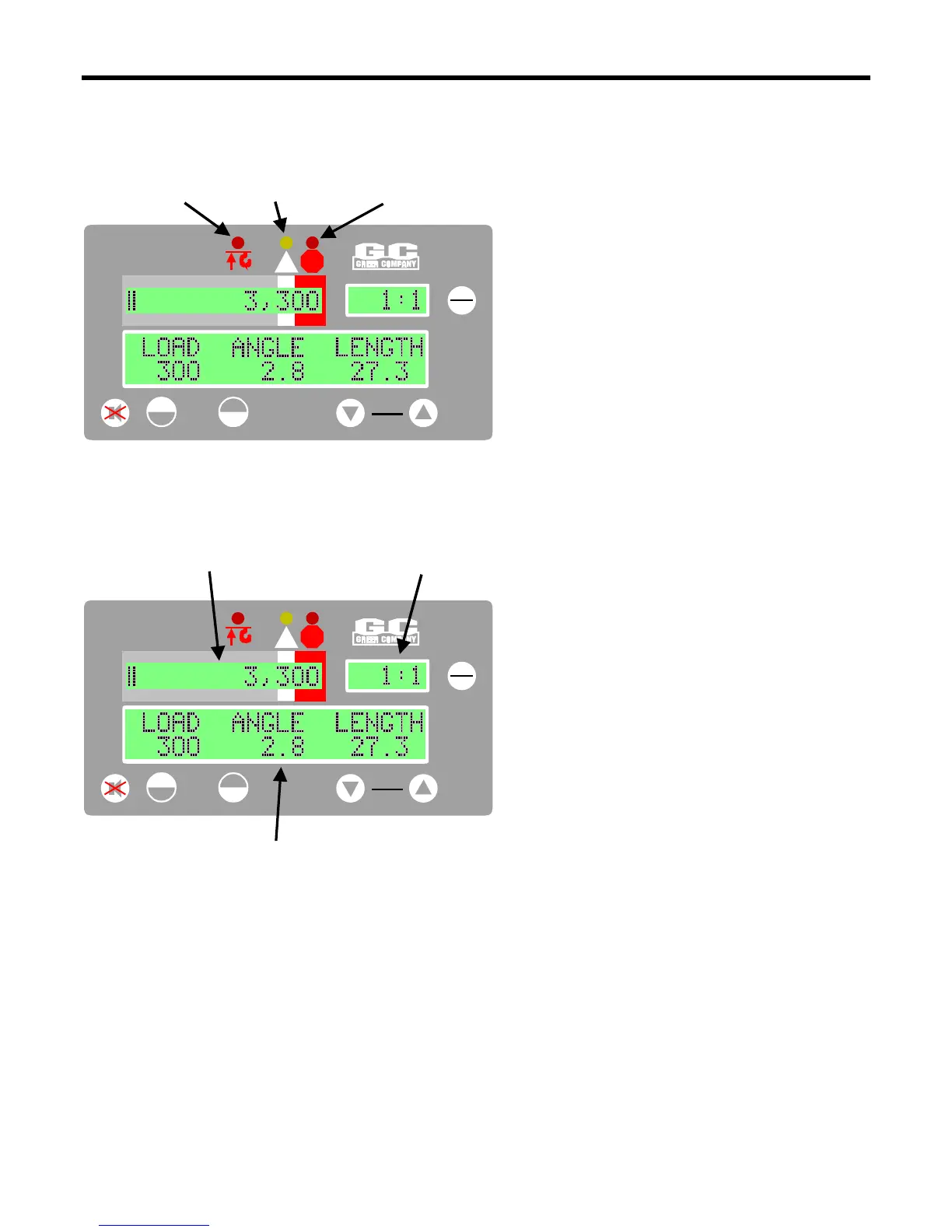

Operator's Display Console - Overview
Warning/Alarm Indications
Display Windows
The current rated capacity for the crane in the
given configuration will be displayed in this
window along with the current percentage of
rated capacity shown as a bar graph.
The system needs to be configured to match the
current setup of the crane.
The setup codes are shown in this window, along
with the parts-of-line and the stowed jib option (if
available).
The information window shows crane specific
information regarding boom length, boom angle,
and working radius, along with the load on hook.
In addition, information regarding any warnings or
alarms will be flashed in this display area.
The red two-block indicator will light up when a
two-block condition occurs.
The yellow pre-warning light will illuminate at a
90% approach to overload.
The red overload warning lamp will illuminate
when the load reaches or exceeds 100% of the
allowed capacity.
OK
DISPLAY
SETUP
SETUP CODE
STOP
RATED CAPACITY
MG-586
!
SELECT
CONTRAST
Pre-Warning
Two-Block
Overload & Fault
OK
DISPLAY
SETUP
SETUP CODE
STOP
RATED CAPACITY
MG-586
!
SELECT
CONTRAST
Rated Capacity
Information
Setup Code
