Baserunner V6 User Manual
Rev0
2 Connectors
The controller has been connectorized to achieve maximum versatility with
minimal wiring, using a combination of waterproof over-molded ebike plugs for
signals and popular compact connectors for high current.
2.1 Battery Power
DC Power Pinout
The short 5cm leads for the battery pack emerge on the
back end of the controller. When supplied with a
downtube battery these leads will be soldered to the
mating cradle connectors, while they may be
unterminated or fitted with Anderson Powerpoles when
purchased alone.
- Warning – The controller may suffer irreparable damage if leads are hooked up in reverse
polarity. Always check the polarity of the connector before applying power.
2.2 Motor Cable
The motor connection has 38cm lead to either a HiGo L1019 connector or a
Z910 connector depending on the model. This length is sufficient to reach a rear
hub motor on most bikes with the controller mounted on the downtube or seat-
tube. Front hub installations are supplied with a 60cm motor extension cable.

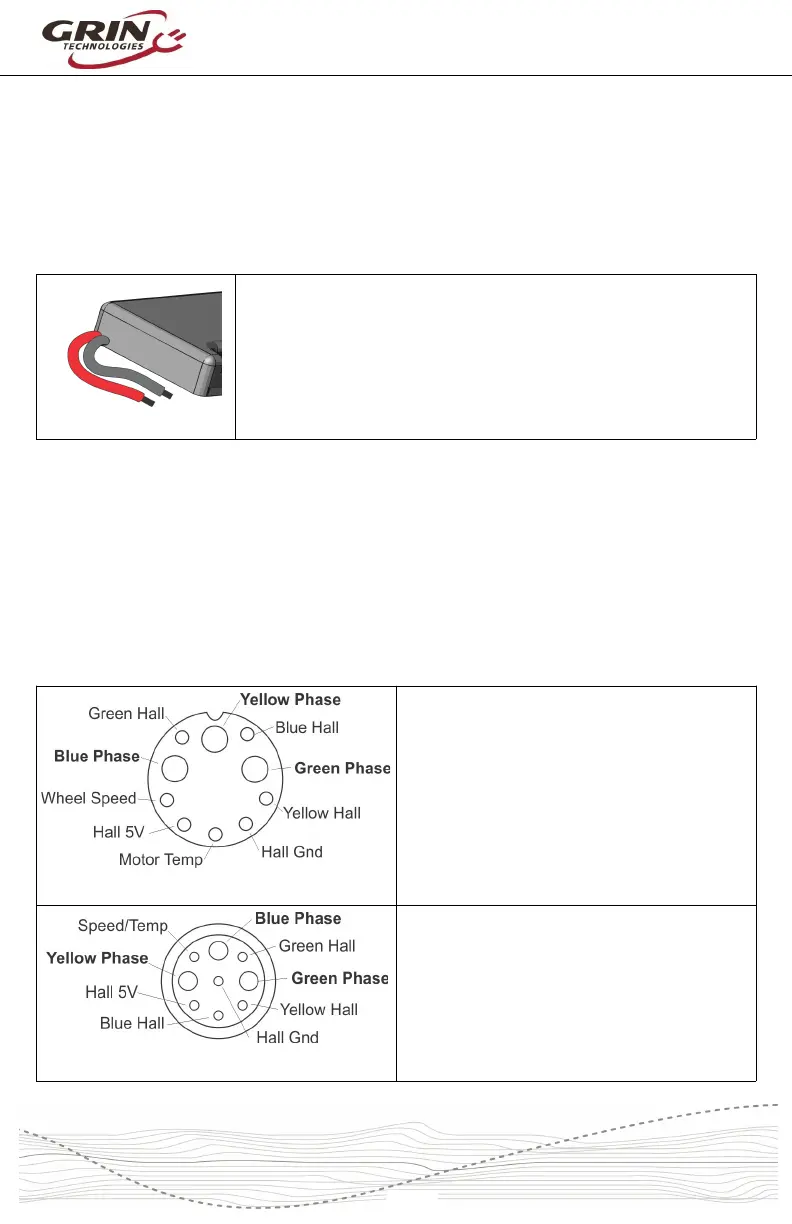

Baserunner_L10 Motor Plug Pinout
The Higo L1019 cable has three motor
phase pins capable of 80 amps peak /
45A continuous, along with 7 small
signal wires for hall position, speed
encoder, and motor temperature.
Baserunner_Z9 Motor Plug Pinout
The Z910 cable has three motor phase
pins capable of 55 A peak / 30A
continuous, along with 6 signal wires.
The one additional wire can be either
motor speed, motor temperature, or
combined speed and temperature.
