Grin Baserunner V6 - Cycle Analyst WP8 Plug; Main9 Signal Plug

Baserunner V6 User Manual
Rev0

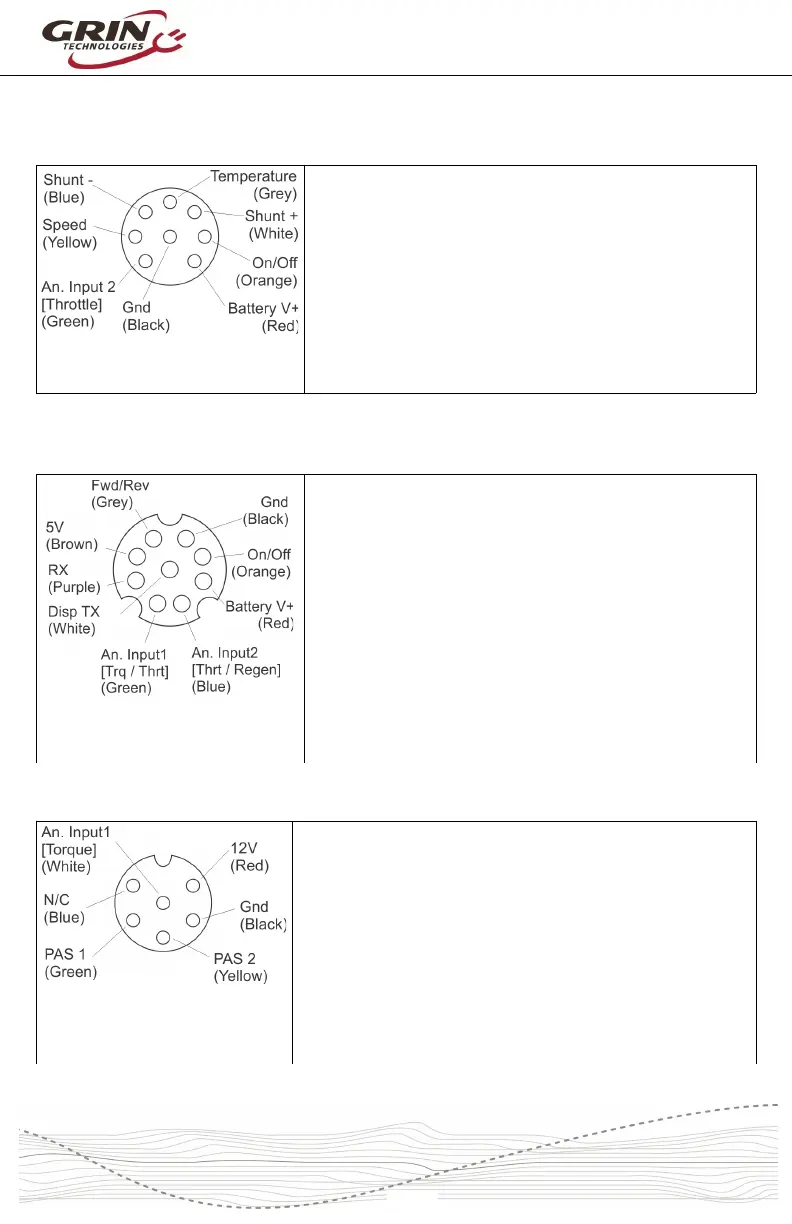

2.3 Cycle Analyst WP8 Plug
CA3 WP8 (Female) Pinout
The connector for the Cycle Analyst cable uses
the waterproof 8-pin Z812 Higo standard.
This connector taps into the controller's shunt
resistor for analog current and power sensing,
passing through the motor's speed and
temperature signals as well.
Cable Length = 15 cm
2.4 Main9 Signal Plug
Main9 (Female) Pinout
An alternate interface is provided via the 9 pin
Mains cable. This uses the Signal D 1109
Connector from Cusmade, and supports
conventional ebike wiring strategies for 3
rd
party
display consoles.
It shares several signals with the WP8 plug, but
rather than using the shunt resistor for current
sensing, it has TX and RX pins that communicate
digitally to the display.
Cable Length = 15cm
2.5 PAS / Torque Plug
6 Pin (Female) PAS Pinout
Finally there is a 6 pin HiGo MiniB Z609 plug for
connection of a PAS sensor or Torque Sensor.
Note that the PAS 2 pin shares the same signal as
the Fwd/Rev input of the Main9 cable, and can be
configured for either function. (See section 8.2 )
Similarly, the Torque (white) lines is the same as
the green wire on the 9pin cable.
Cable Length = 15 cm
-3-
