CC10-G
Parts List
4-27
(Revised 1/02)

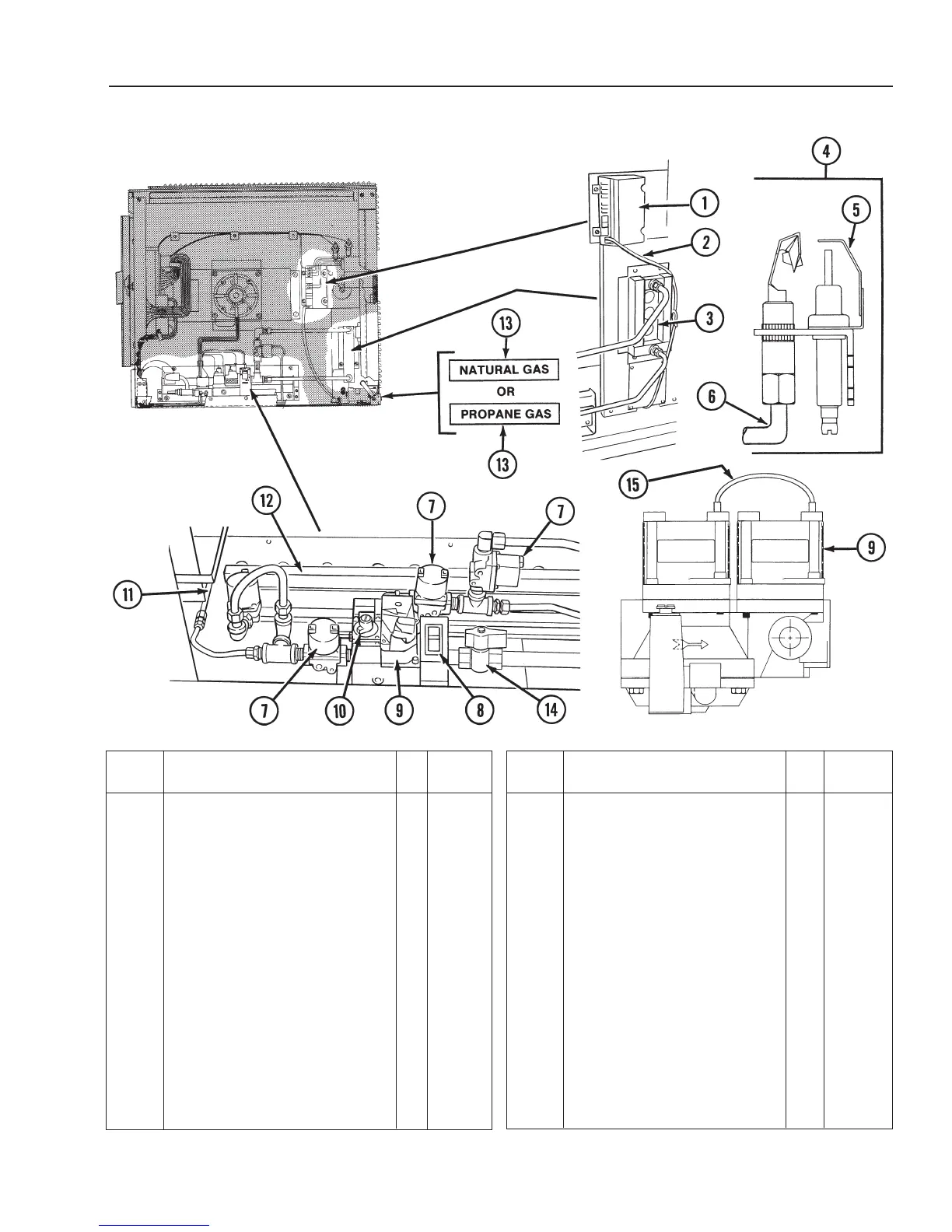

Figure 3. Gas System Components
1 Igniter Module............................ 1 085153
2 High Voltage Cable ................... 1 106495
3 Boiler Manifold ......................... 1 See
Fig. 4
4 Pilot Burner Assembly
(Natural Gas)............................. 1 087949
5 • Pilot Burner
Prior to Serial #GC13010MC .... 1 093458
After Serial #GC13010MC ........ 1 085155
6 • Pilot Control Tube ................... 1 087950
4 Pilot Burner Assembly
(Propane Gas)........................... 1 087956
5 • Pilot Burner
Prior to Serial #GC13010MC .... 1 093459
After Serial #GC13010MC ........ 1 085156
7 Automatic Gas Valve................. 3 085160
8 Rocker Switch (SW1) ................ 1 087951
9 Main Gas Valve (Nat. Gas)
Prior to Serial #GC13256 .......... 1 098475
Starting with Serial #GC13256.. 1 098443
Item Description Qty.
Part
No.
9 Main Gas Valve (Prop. Gas)
Prior to Serial #GC13256........ 1 098475
Starting with Serial #GC13256
(Conversion Kit) ..................... 1 079802
10 Pressure Regulator (Nat. Gas)
Prior to Serial #GC13256........ 1 083459
10 Pressure Regulator (Prop.
Gas)
Prior to Serial #GC13256 ....... 1 083460
11 Pilot Runner Tube (Nat. Gas) . 1 087920
11 Pilot Runner Tube
(Propane Gas)......................... 1 087921
12 Oven Manifold Assembly ....... 1 See
Fig. 5
13 Gas Label (Natural Gas) ........ 1 087992
13 Gas Label (Propane Gas) ...... 1 087993
14 Manual Gas Valve ...................
Starting with Serial #GC13256 1 098458
15 Jumper Wire
Starting with Serial #GC13256 1 098460
Item Description Qty.
Part
No.
