Groen CC20-E - Transformer 1

5A-21
C/2-G
Parts List
10
11
8
8
4
3
1
2
3
7
6 5
12
9
5A-13

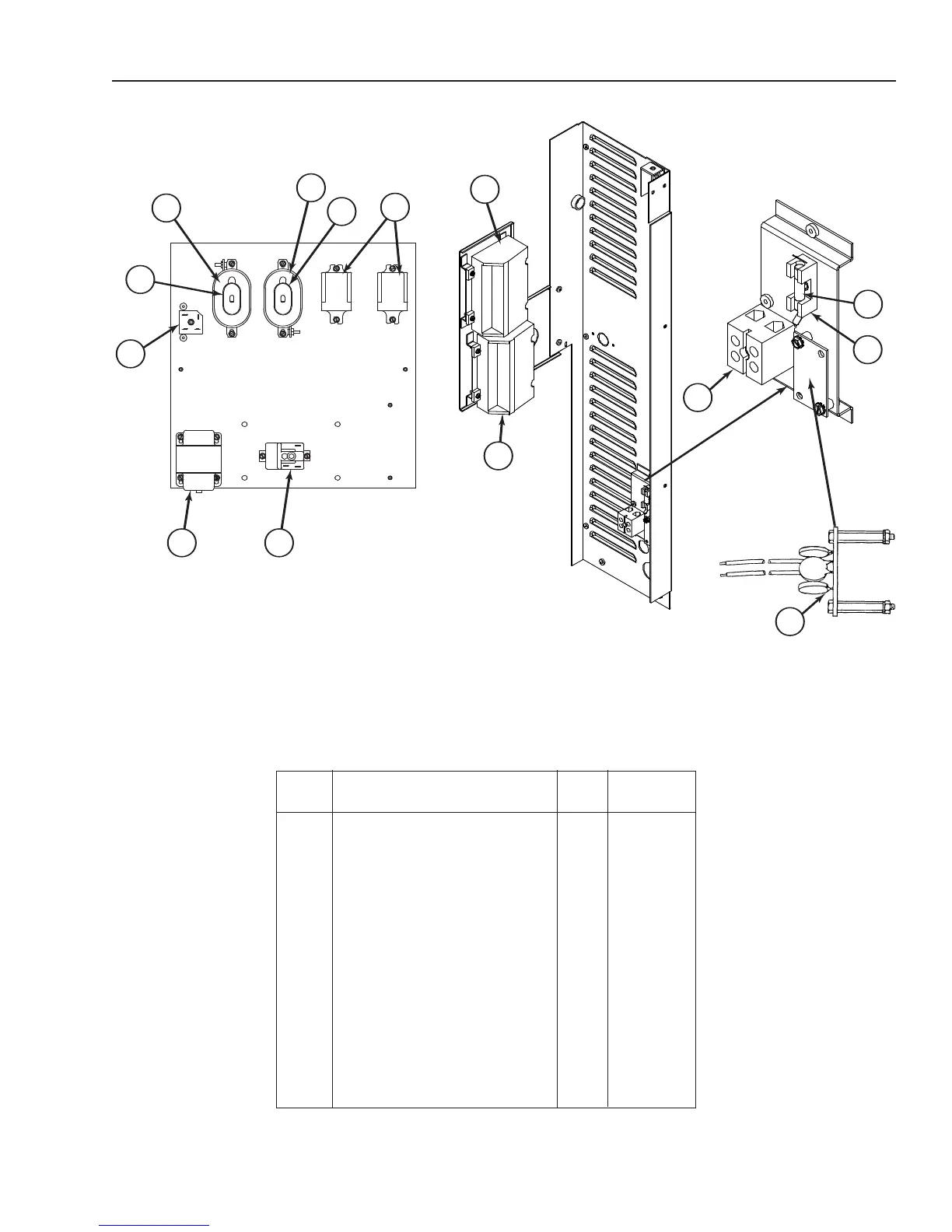

Figure 6. Rear Column Assembly and Electrical Component Panel Assembly
1 Capacitor, 35 MFD with
Resistor................................ 1 087942
2 Capacitor, 35 MFD .................. 1 090711
3 Terminal Boot for Capacitors... 2 087945
4 Relay, SPDT............................ 2 074842
5 Motor Start Relay .................... 1 087948
6 Transformer, 120 v primary/
24 v secondary .................... 1 087953
7 Bridge Rectifier........................ 1 071487
8 Igniter Module ......................... 2 085153
9 Fuse, 15 amp Slo-Blo ............. 1 087946
10 Fuse Holder............................. 1 077854
11 Terminal Block, 2-pole............. 1 003887
12 Surge Suppressor ................... 1 093469
13* Main Harness .......................... 1 137361
14* Harness Thermal Switch ......... 1 098645
Item Description Qty.
Part
No.
* Not Shown
