Groen CC20-E - Page 133

CC10-G
Parts List
4-31
* Not Shown
Door Assembly ........................ 1 073284
1 Handle..................................... 1 129723
2 Truss Head Screw S.S............ 6 005764
3 Door Front Panel..................... 1 073281
4 Insulator Board ....................... 1 070110
5 Hinge ...................................... 1 070199
6 Door Spacer ............................ 4 071206
7 Gasket .................................... 1 070121
8 Inner Panel ............................. 1 070112
9 Hex Head Cap Screw S.S. ..... 2 005608
10 Latch Assembly ....................... 1 078906
11 • Retaining Ring ...................... 2 073278
12 • Spring Support Pin .............. 1 073280
13 • Door Spring........................... 1 078911
14 Block and Magnet Assembly... 1 069762
15 Door Cam ............................... 1 074252
Item Description Qty.
Part
No.
* Loctite 242............................... 1 073282
* RTV Sealant 159..................... 1 078939
Item Description Qty.
Part
No.

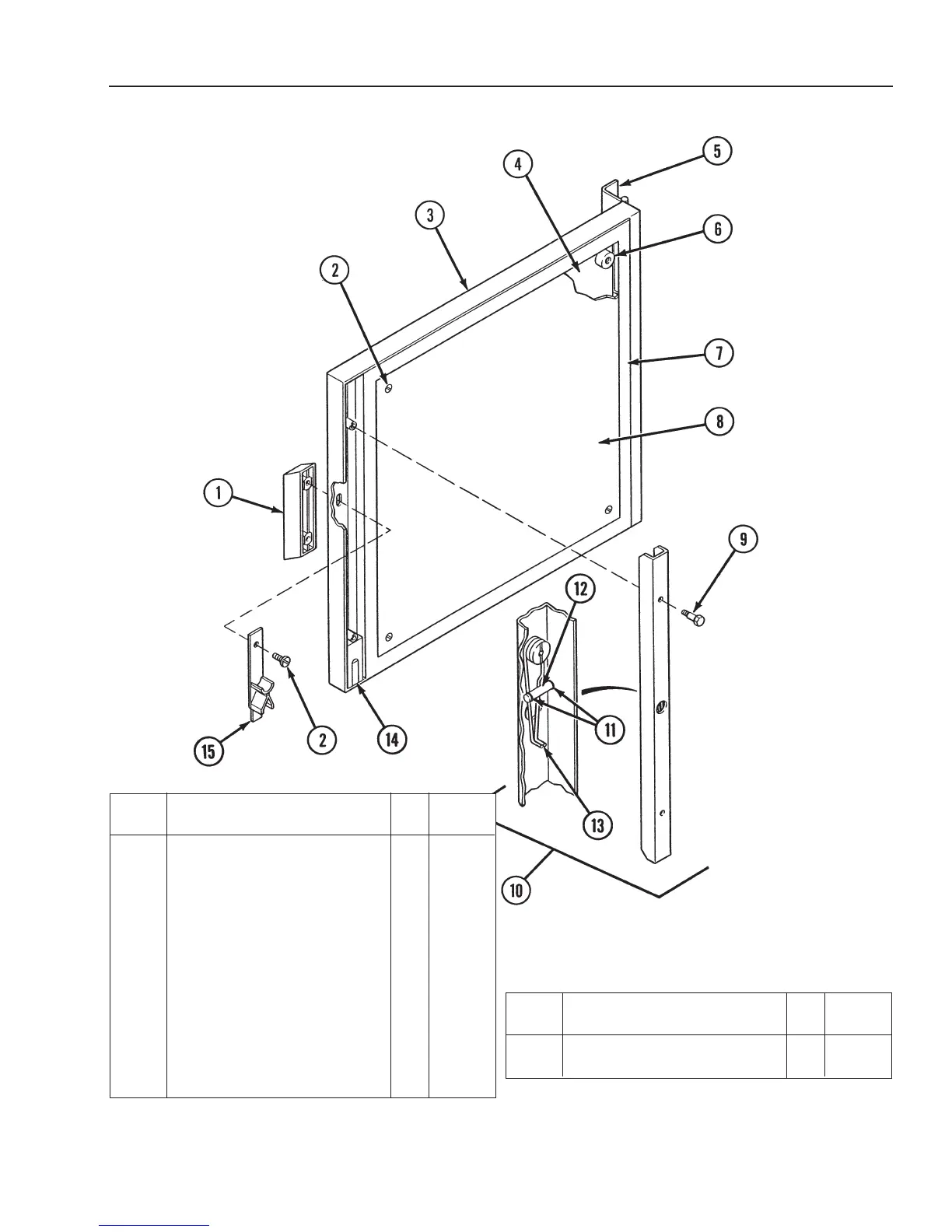

Figure 7. Oven Door
(Revised 1/02)
