CC20-G
Parts List
5-27

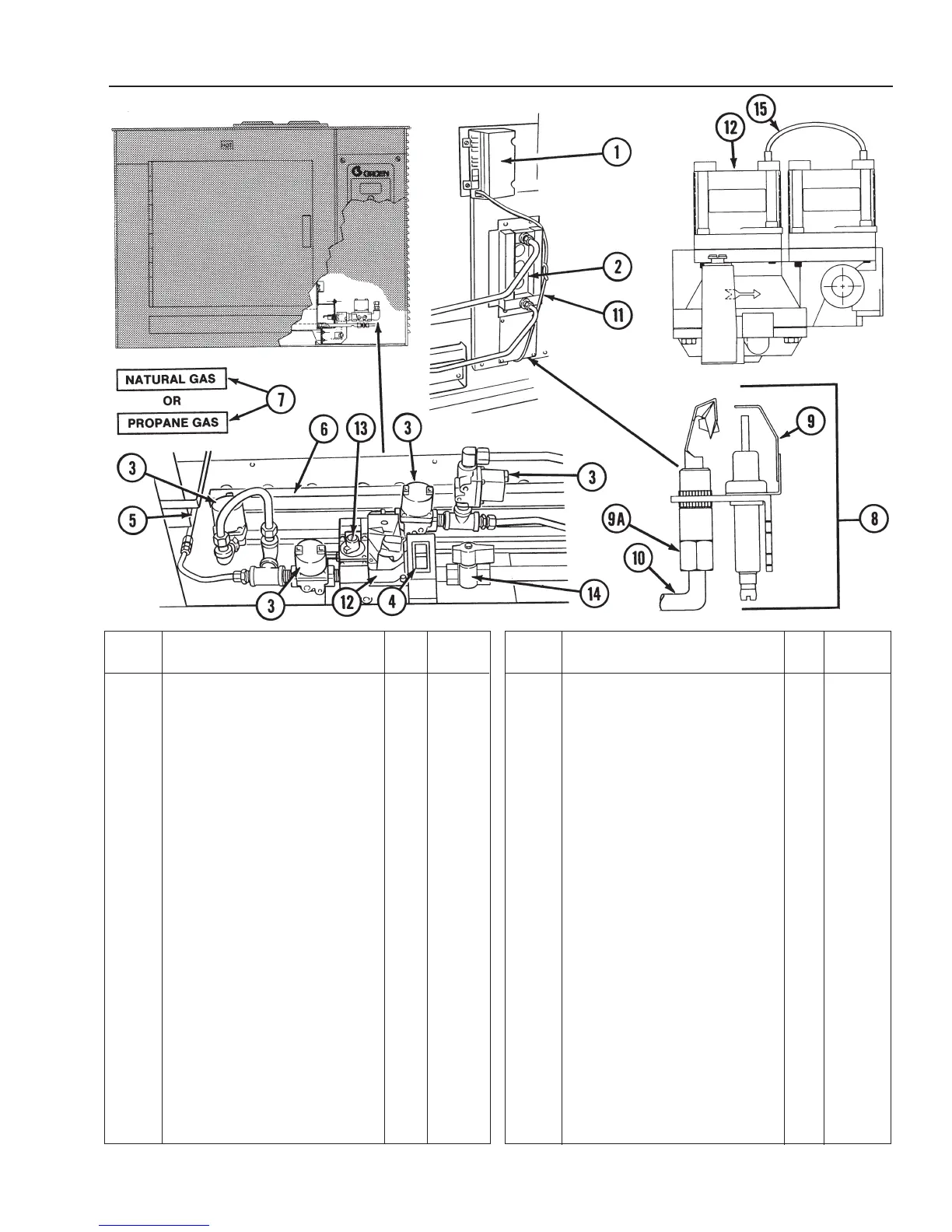

Figure 3. Gas System Components
1 Igniter Module......................... 1 085153
2 Boiler Manifold ....................... 1 See
Fig. 4
3 Automatic Gas Valve .............. 4 085160
4 Rocker Switch (SW1) ............. 1 087951
5 Pilot Runner Tube
(Natural Gas) .......................... 1 090766
5 Pilot Runner Tube
(Propane Gas) ........................ 1 090767
6 Oven Manifold Assembly ........ 1 See
Fig. 5
7 Gas Label (Natural Gas) ........ 1 087992
7 Gas Label (Propane Gas) ...... 1 087993
Prior to Serial #GC14569
8 Pilot Burner Assembly
(Natural Gas) .......................... 1 090815
Cable ...................................... 1 098639
Pilot Burner............................. 1 098641
Shield...................................... 1 098636
9 • Pilot Burner .......................... 1 09086
10 • Pilot Gas Supply Tube ......... 1 090749
11 • High Voltage Cable .............. 1 090819
8 Pilot Burner Assembly
(Propane Gas) ........................ 1 090817
9 • Pilot Burner .......................... 1 090818
10 • Pilot Gas Supply Tube ......... 1 090749
Item Description Qty.
Part
No.
11 • High Voltage Cable .............. 1 090819
12 Main Gas Valve Kit
(Natural Gas) .......................... 1 098665
12 Main Gas Valve
(Propane Gas) ........................ 1 098665
13 Pressure Regulator
(Natural Gas) .......................... 1 083459
13 Pressure Regulator
(Propane Gas) ........................ 1 083460
Starting with Serial # GC14569
8 Pilot Burner Assembly
(Natural Gas) .......................... 1 098649
8 Pilot Burner Assembly
(Propane Gas) ........................ 1 098642
9 Pilot Burner ............................ 1 098641
9A Pilot Orifice (Natural Gas)....... 1 098648
9A Pilot Orifice (Propane Gas)..... 1 098647
10 Pilot Gas Supply Tube ............ 1 098656
11 High Voltage Cable ................. 1 111392
12 Main Gas Valve (Natural
Gas) ........................................ 1 098443
12 Main Gas Valve (Propane
Gas Conversion Kit)................ 1 079802
14 Manual Gas Valve................... 1 098458
15 Jumper Wire ........................... 1 098460
Item Description Qty.
Part
No.
(Revised 1/02)
