Groen CC20-E User Manual

CC20-G
Parts List
* Not Shown
Door Assembly ........................ 1 080645
1 Handle..................................... 1 129723
2 Truss Head Screw S.S............ 6 005764
3 Door Front Panel..................... 1 080646
4 Insulator Board........................ 1 080658
5 Hinge....................................... 1 080642A
6 Door Spacer ............................ 8 080654
7 Gasket .................................... 1 080640
8 Inner Panel.............................. 1 080660
9 Hex Head Cap Screw S.S. ..... 2 005608
10 Latch Assembly ....................... 1 080655
11 0 Retaining Ring ..................... 2 073278
12 0 Spring Support Pin............... 1 073280
13 0 Door Spring.......................... 1 078911
14 Block and Magnet Assembly... 1 069762
15 Door Cam ............................... 1 074252
Item Description Qty.
Part
No.
* Loctite 242............................... 1 073282
* RTV Sealant 159..................... 1 078939
Item Description Qty.
Part
No.

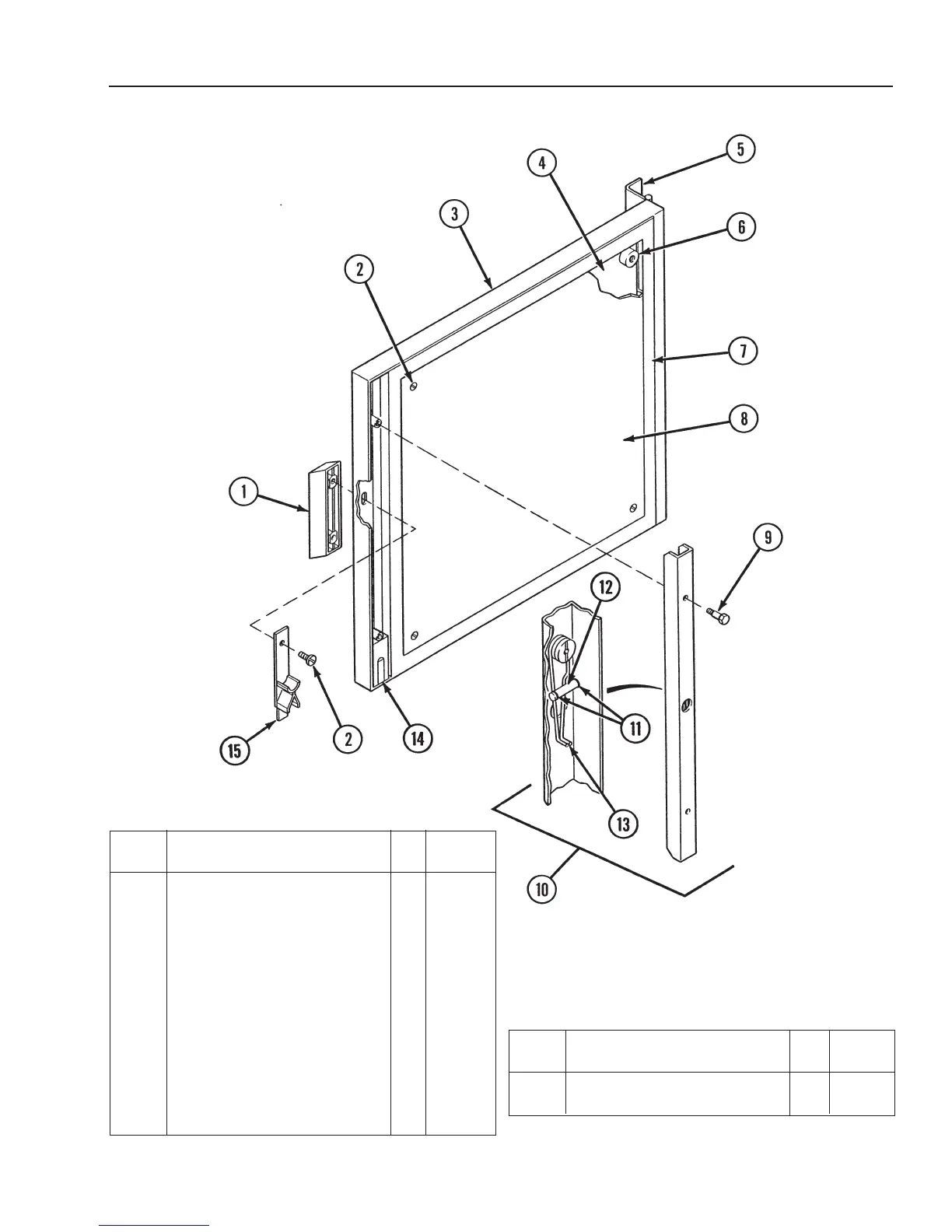

Figure 7. Oven Door
(Revised 1/02)
5-31
