Groen CC20-E - Page 188

5A-14
C/2-G
Parts List
10
3
11
9
14
16
1
13
2
12
4
4
4
14
5
7
6
15
5A-8

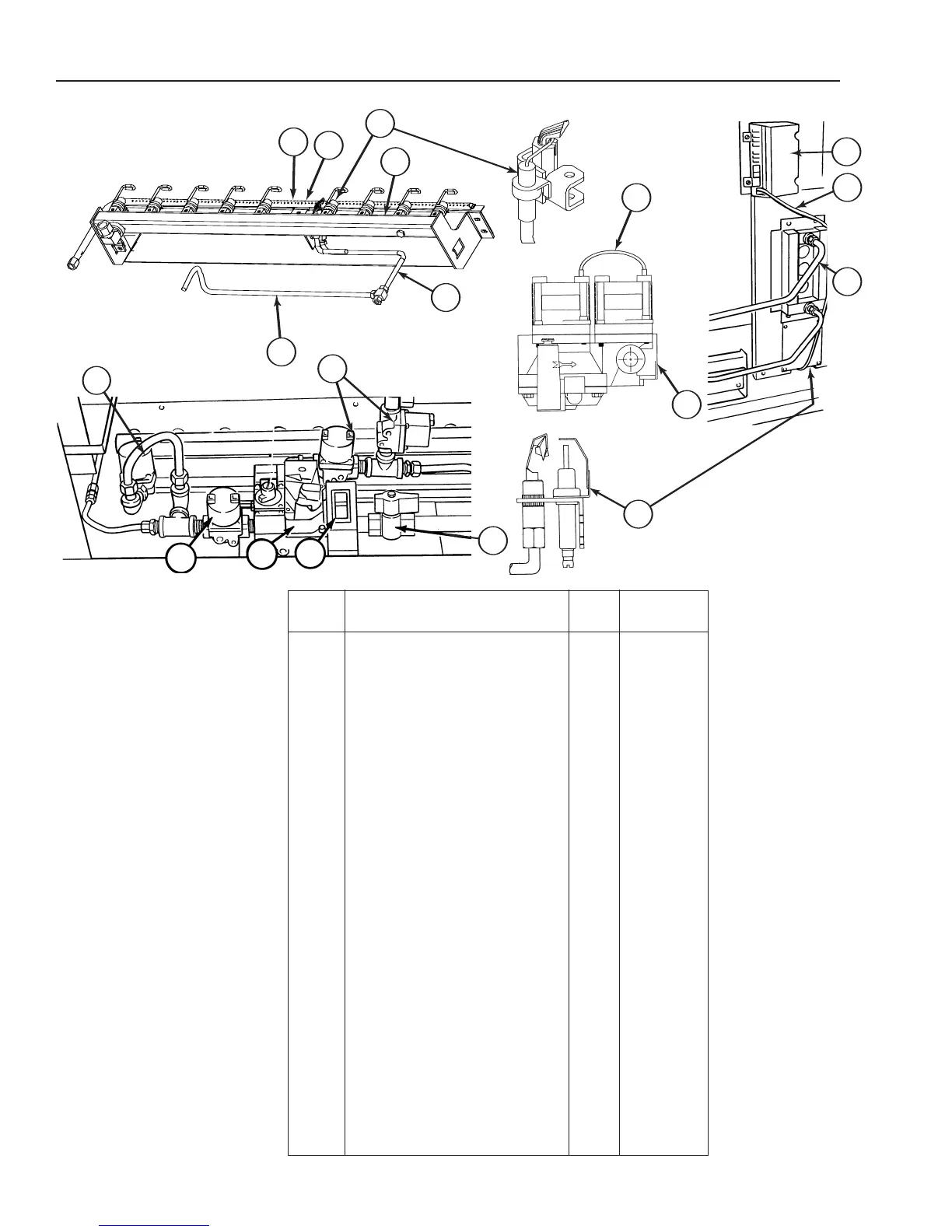

Figure 1. Gas System Components
1 Igniter Module ......................... 2 085153
2 Boiler Manifold ........................ 1 See Fig. 4,
page 5-28
3 Oven Burner Manifold ............. 1 See Fig. 5,
page 5-29
4 Automatic Gas Valve............... 4 0851160
5 Rocker Switch ......................... 1 087951
6 Pilot Runner Tube Natural
Gas ...................................... 1 135445
7 Pilot Runner Tube Propane
Gas ...................................... 1 135446
8 Gas Label (Natural Gas) ......... 1 087992
Gas Label (Propane Gas) ....... 1 087993
9 Pilot Burner, Boiler
(Natural Gas) ....................... 1 098649
Pilot Burner, Boiler
(Propane Gas) ..................... 1 098642
10 Pilot Burner, Oven
(Without Orifice)................... 1 137170
Pilot Orifice (Natural Gas) ....... 1 098648
Pilot Orifice (Propane Gas) ..... 1 098647
11 Tube, Pilot Gas (Oven Pilot) ... 1 135120
12 Tube, Gas Valve...................... 1 135119
13 High Voltage Cable ................. 2 098639
14 Main Gas Valve (Natural Gas) . 1 098443
Main Gas Valve (Propane Gas
Conversion Kit ..................... 1 079802
15 Manual Gas Valve ................... 1 098458
16 Jumper Wire............................ 1 098460
Item Description Qty.
Part
No.
