Groen CC20-E - Page 27

CC10-E
Parts List
2-24
(Revised 1/02)

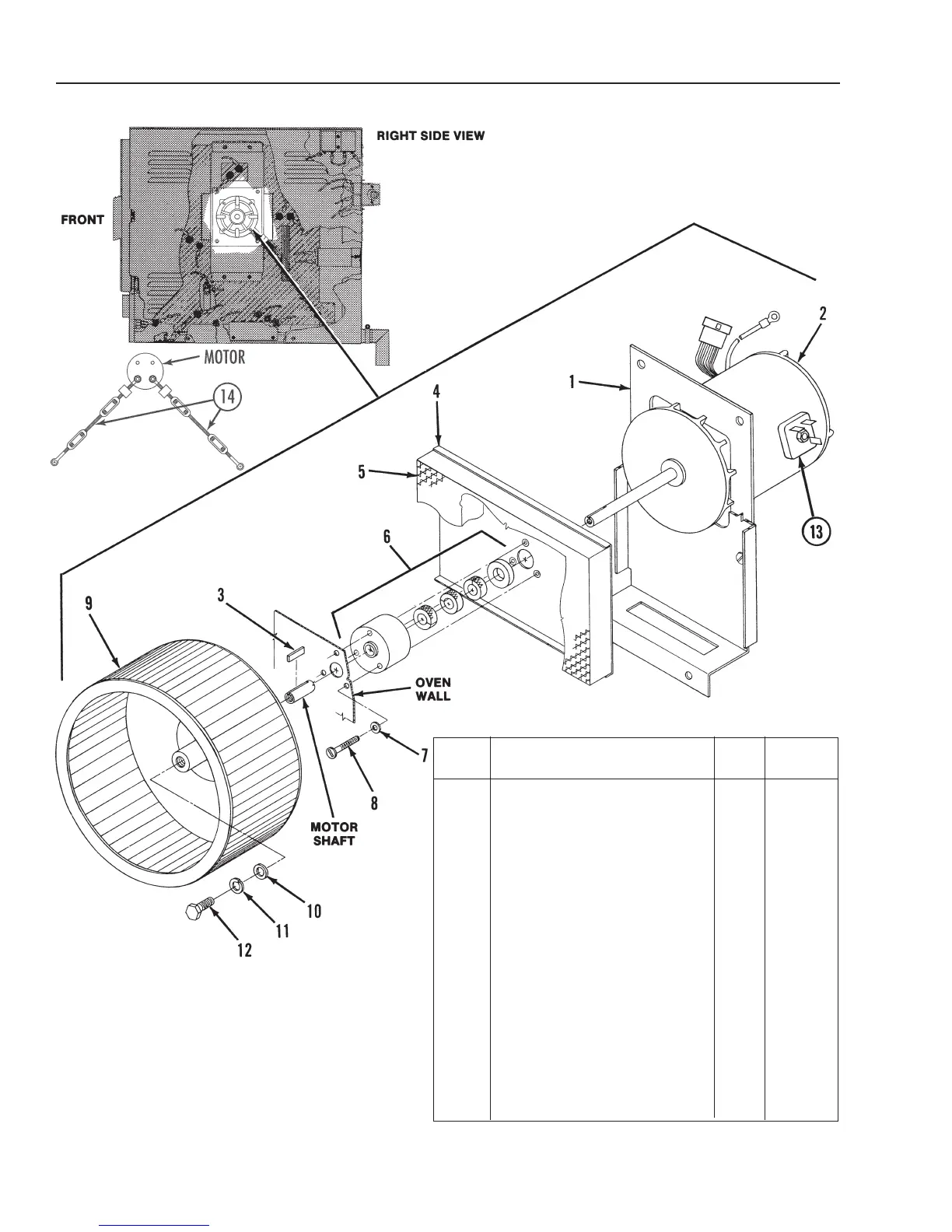

Figure 3. Fan and Motor
1 Bracket Assy. . . . . . . . . . . . . . 1 070100
2 Motor & Heat Slinger Assy.
- 280V/240V . . . . . . . . . . . . . 1 078802
3 Key, 1/8’ Square 303 S.S. . . . 1 071288
4 Insulation Retainer Assy. . . . . 1 071228
5 Insulation Nut Plate . . . . . . . . 1 069770
6 Motor Seal Assy. . . . . . . . . . . 1 071299
• Washer Seal Housing . . . . . 1 070458
• Packing . . . . . . . . . . . . . . . . 3 070459
• Motor shaft Housing Seal . . 1 070457
7 Washer, Fiber . . . . . . . . . . . . 3 071300
8 Screw, Truss Head S.S. . . . . 3 081698
9 Blower Wheel Assembly . . . . 1 074227
10 Washer, Flat . . . . . . . . . . . . . 1 059228
11 Washer, Lock . . . . . . . . . . . . 1 05656
12 Screw, Hex Head Cap S.S. . . 1 05613
13 Motor Start Relay . . . . . . . . . 1 077826
14 Kit Fan Isolator . . . . . . . . . . . 1 098684
Item Description Qty.
Part
No.
