Groen CC20-E - Page 285

Maintenance
Replacement Procedures
8-41
(Revised 1/02)

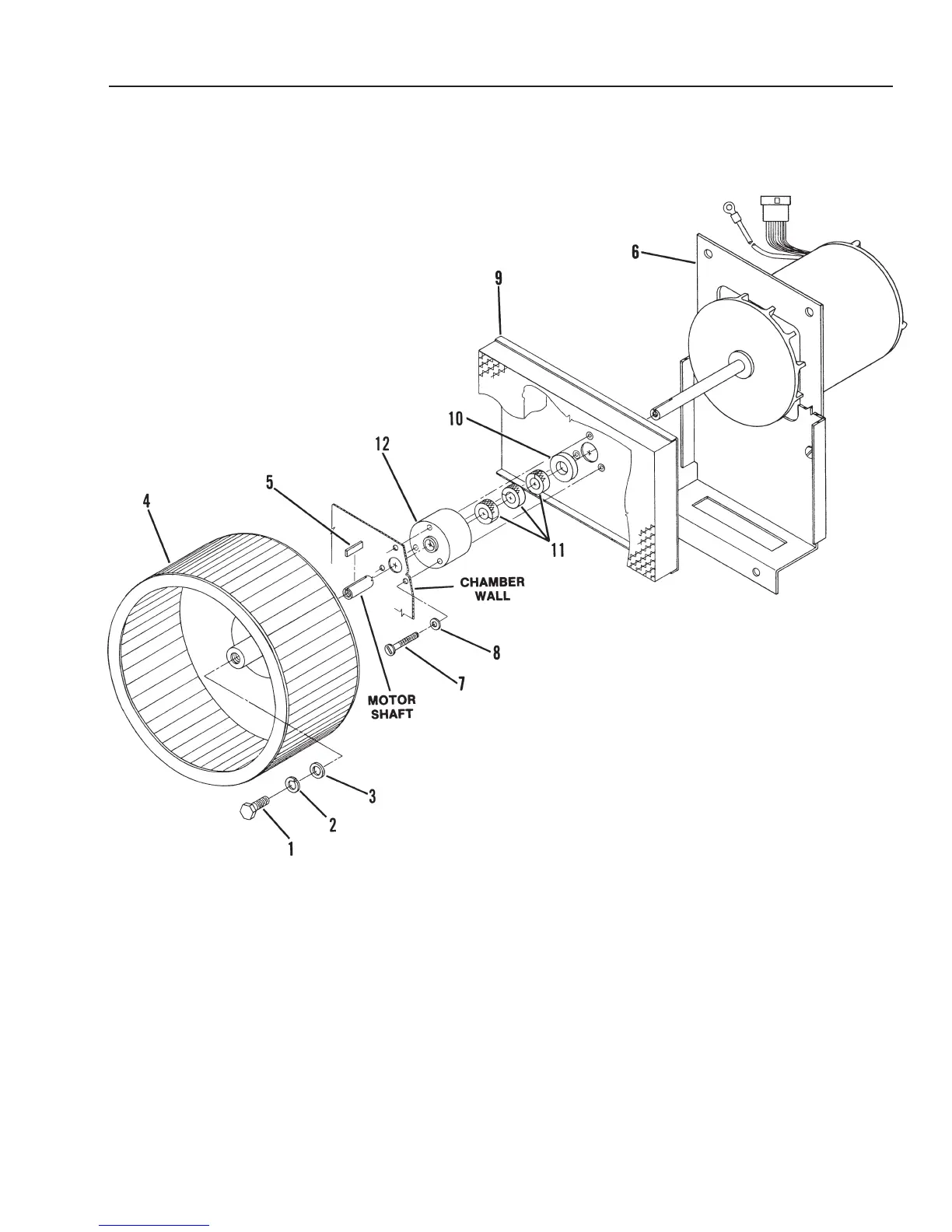

Fan and Motor
1. Capscrew
2. Lockwasher
3. Washer
4. Fan
5. Square Key
6. Motor and Heat Stinger
Assembly
7. Screw (qty. 3)
8. Fiber Washer (qty. 3)
9. Retainer Assembly
10. Washer
11. Packing
12. Seal Housing
Fan and Motor Installation
