Maintenance
Replacement Procedures
8-44
(Revised 1/02)

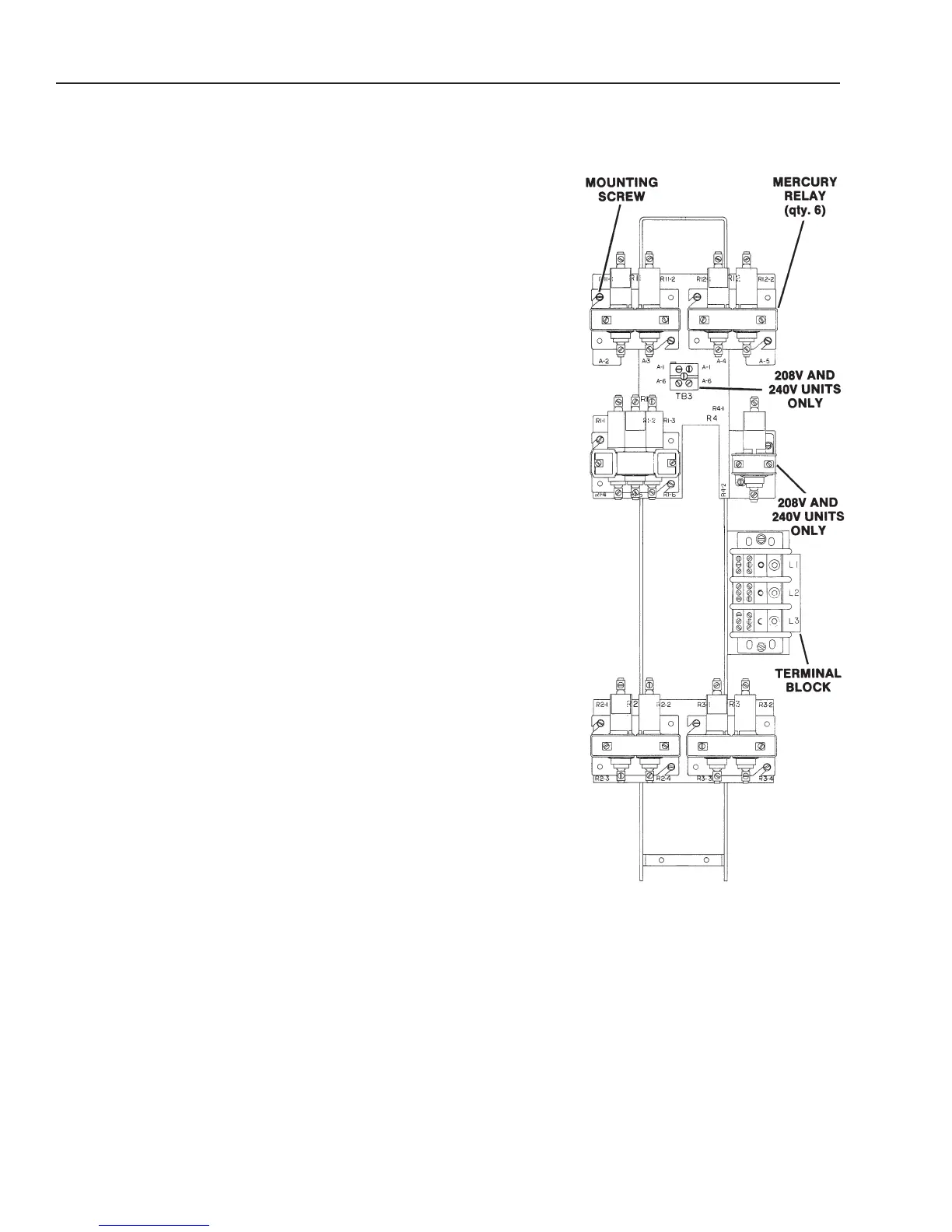

Mercury Relays (CC20-E Unit Only)
WARNING
Be sure oven is disconnected from branch circuit
power before performing any repair work.
Removal
1. Turn off oven power and disconnect oven from the branch circuit.
2. Remove right side cover.
3. Disconnect electrical leads from mercury relay being replaced.
4. Loosen two relay mounting screws and remove relay.
Installation
1. Install mercury relay and tighten mounting screws.
2. Correctly connect electrical leads to relay. The relays and the
electrical leads are identified.
3. Install right side cover.
4. Connect oven to the branch circuit.
