Groen CC20-E - Page 78

CC20-E
Parts List
3-463-463-463-463-463-46
(Revised 1/02)
12d
12b
12c
12a

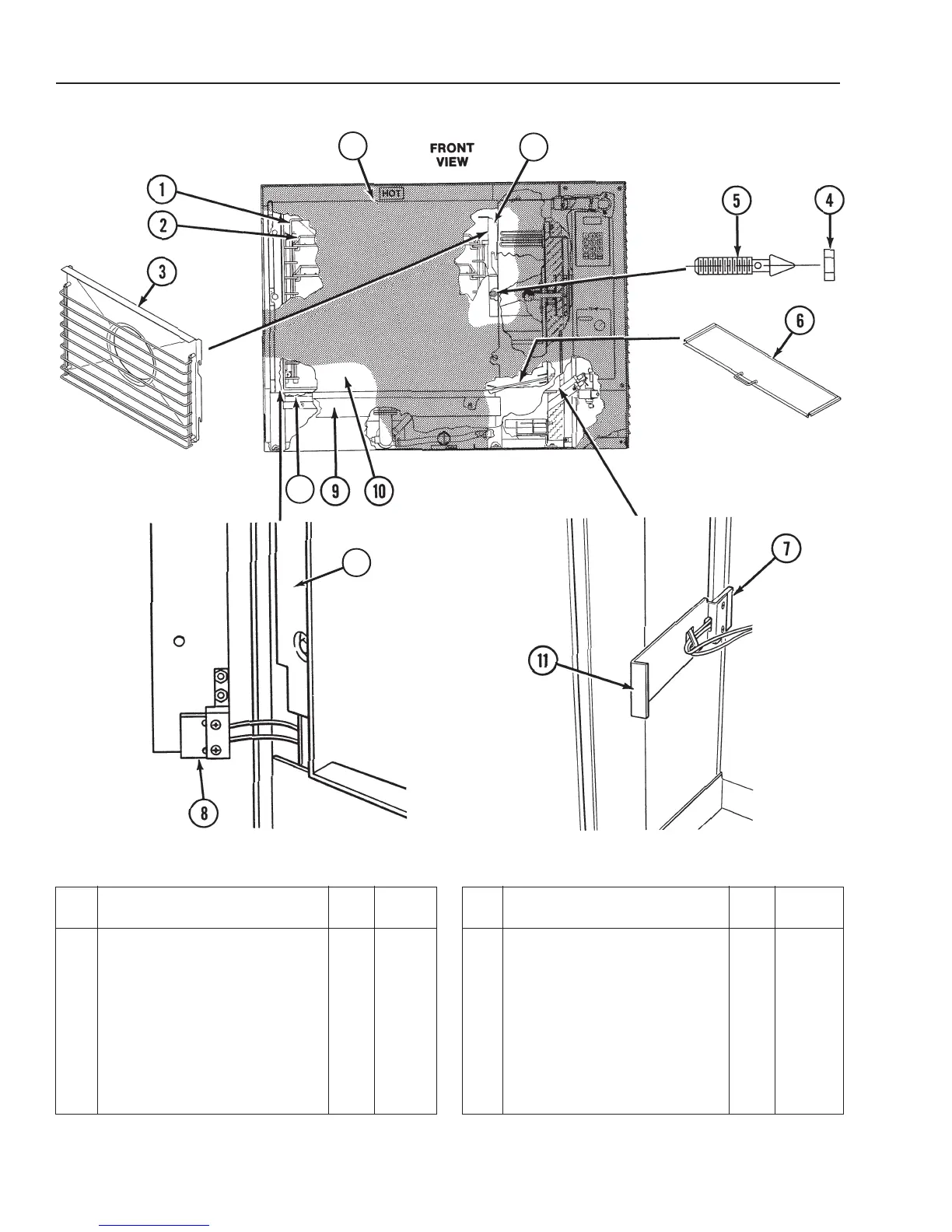

Figure 4. Door, Racks, and Tray
1 Left Side Rack . . . . . . . . . . . . 1
080680
2 Middle Rack . . . . . . . . . . . . . . 5 080644
3 Shroud With Right Side Rack 1 080663
4 Door Pin Locking Nut . . . . . . . 1 003823
5 Door Latch Pin . . . . . . . . . . . 1 078914
6 Boiler Assembly Cover . . . . . . 1 081608
7 Right Side Door Switch . . . . . 1 081620
8 Left Side Door Switch . . . . . . 1 081621
9 Drip Tray . . . . . . . . . . . . . . . . 1 080772
10 Door Assembly . . . . . . . . . . . 1 See
Item
Description Qty.
Part
No.
11 Door Switch Bracket . . . . . . . 1 111162
12a Left Side Insulation Strips . . . 1 080732
12b Right Side Insulation Strips . . 1 080733
12c Bottom Insulation Strips . . . . . 1 080731
12d Top Insulation Strips . . . . . . . . 1 080730
Item
Description Qty.
Part
No.
