Groen SMARTSTEAM PRO - Parts List - Gas Cavity Assembly

26 SM-GSSP BOILERLESS STEAMER
Parts List
GSSP-BL-3G/5G

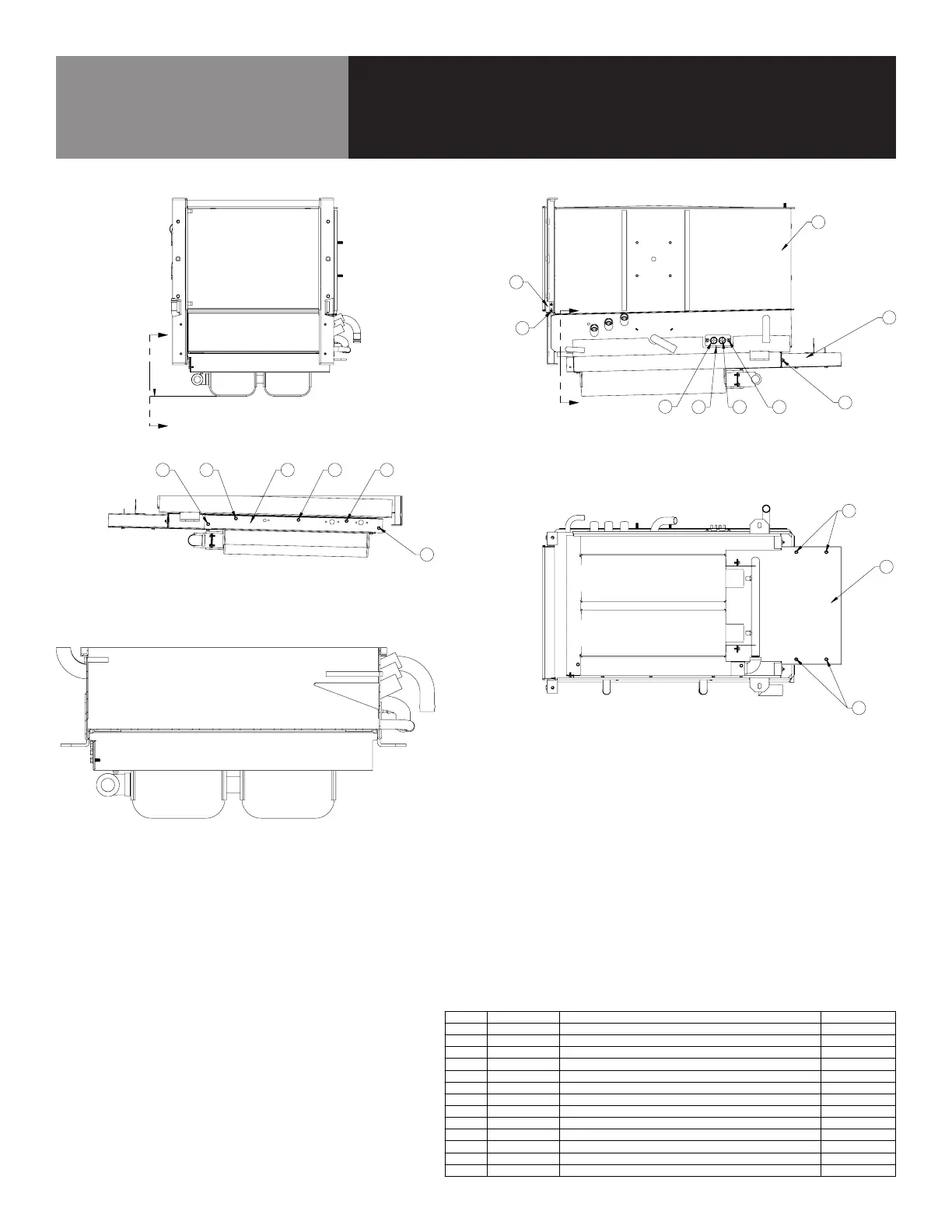

GAS CAVITY ASSEMBLY
178125
B
B
1
13
11
4
(2)
1
5
7
(2)
2
3
(2)
(4)
A
A
9
12
12
SECTION A-A
12
12121212
10
SECTION B-B
SCALE 1 : 2
ITEM NO. PART NUMBER DESCRIPTION QTY.
13 146507 WELDMENT, FLUE EXTENTION, SSB-5G 1
12 144110
SCREW, #8 X 1/2 HEX HD SLOT MACHINE SELF, 410SS 11
11 071256
NUT HEXHEAD KEPS 10-32 2
10 145088
WELDMENT, LEFT COMB CHAMBER ACCESS
1
9 143986
WELDMENT, FLUE EXTENSION BRACKET BOTTOM 1
8 143976
BURNER ASSEMBLY, INFRARED 1
7 178091
PLATE, READY & HOLD SENSOR. GSSP 1
6 069784
8-32 KEPS NUT 2
5 178089
THERMOSTAT, HOLD, GSSP
1
4 147285
THERMOSTAT, READY, SSB-3/5 1
3 096841
SCREW #4-40 X 1/4" HEX MS
4
2 096857
SWITCH, DOOR
2
1 177842
WELDMENT, CAVITY ASM, GSSP-BL, 3 PAN GAS 1
