4. Assembly and Installation
PNEG-1156ETL Design III Series Grain Stir-Ator CSA 25

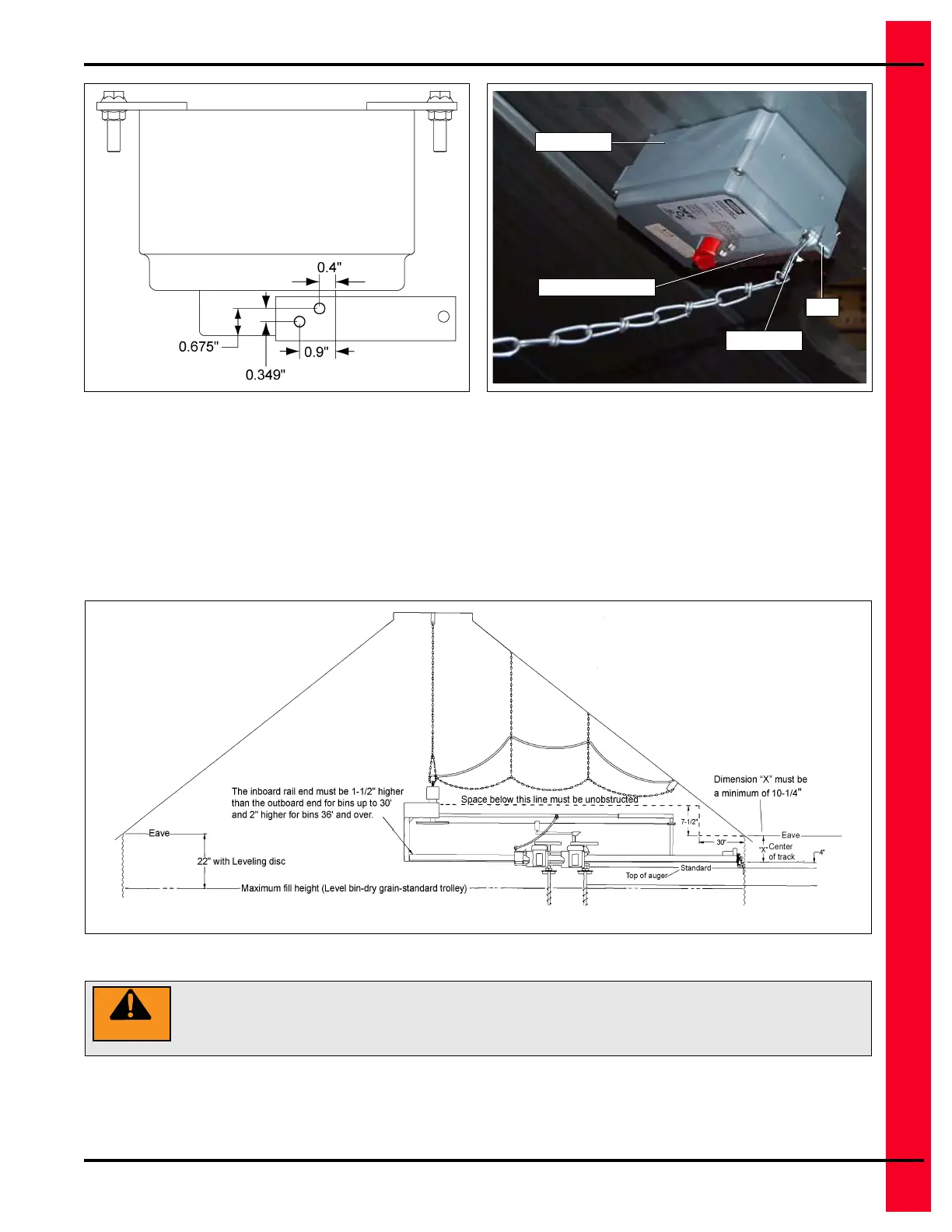

Figure 4I
Figure 4J
2. Mount the switch box and circuit breaker box using the hardware provided with disconnect box, refer
to Design III Stir-Ator switch boxes and suspension parts list on Page 58. The breaker box is to be
mounted on the outside of the bin in an accessible location. Wiring can then be ran to connect the
breaker box to the safety disconnect switch.
3. Fasten shut off support chain(s) to bin roof using existing roof bolts and a 5/16" flat washer and
hex nut. Three (3) support chains should be equally spaced between the switch box and the center of
the bin.
Figure 4K
Switch box
Handle extension
Chain clip
Bolt
Design III Stir-Ator
Mounting the box lower than the minimum recommended height could cause the
box to be caught by the Stir-Ator as it moves around the bin, causing possible
damage or serious electrical shock.
WARNING
