Chapter 7: Moisture Sampler
3. Slide the bolt heads into the slots on the blower mount bracket (A).
4. Install the bottom two bolts (C) in the blower assembly brackets and tighten all the bolts.

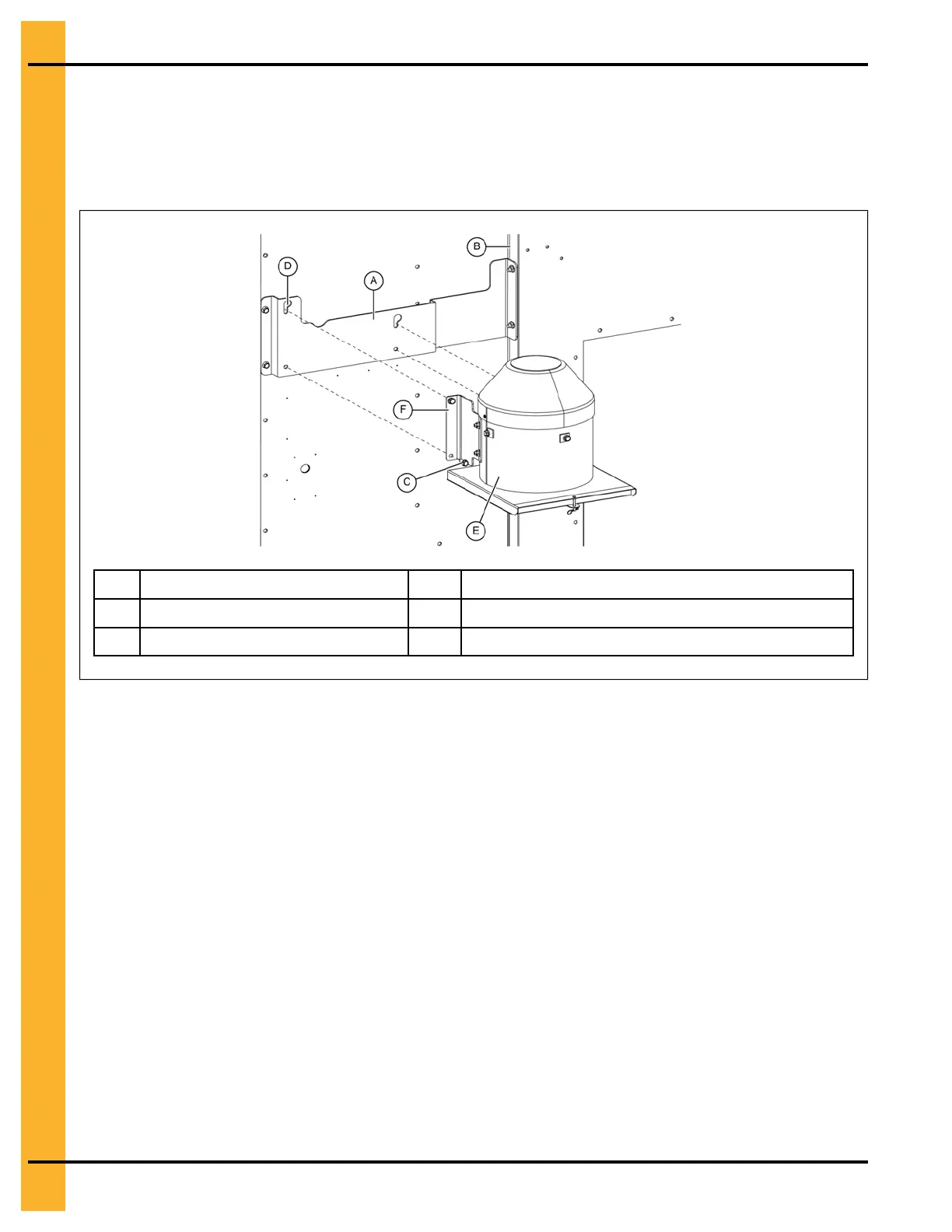

Figure 7-2 Installing the blower to the bracket
A
Blower mount bracket (D01-2958)
D
5/16 in. flange nut (S-3611)
B
Center flange
E
Blower assembly (D04-1016)
C 5/16 in. x 3/4 in. flange bolt (S-6606)
F
Blower assembly bracket (D01-2952 and D01-2959)
5. Install the conduit hangers (G) into existing bolt holes on the dryer using screws (K).
50
PNEG–2088 Quiet Portable Dryer
