Chapter 7: Moisture Sampler

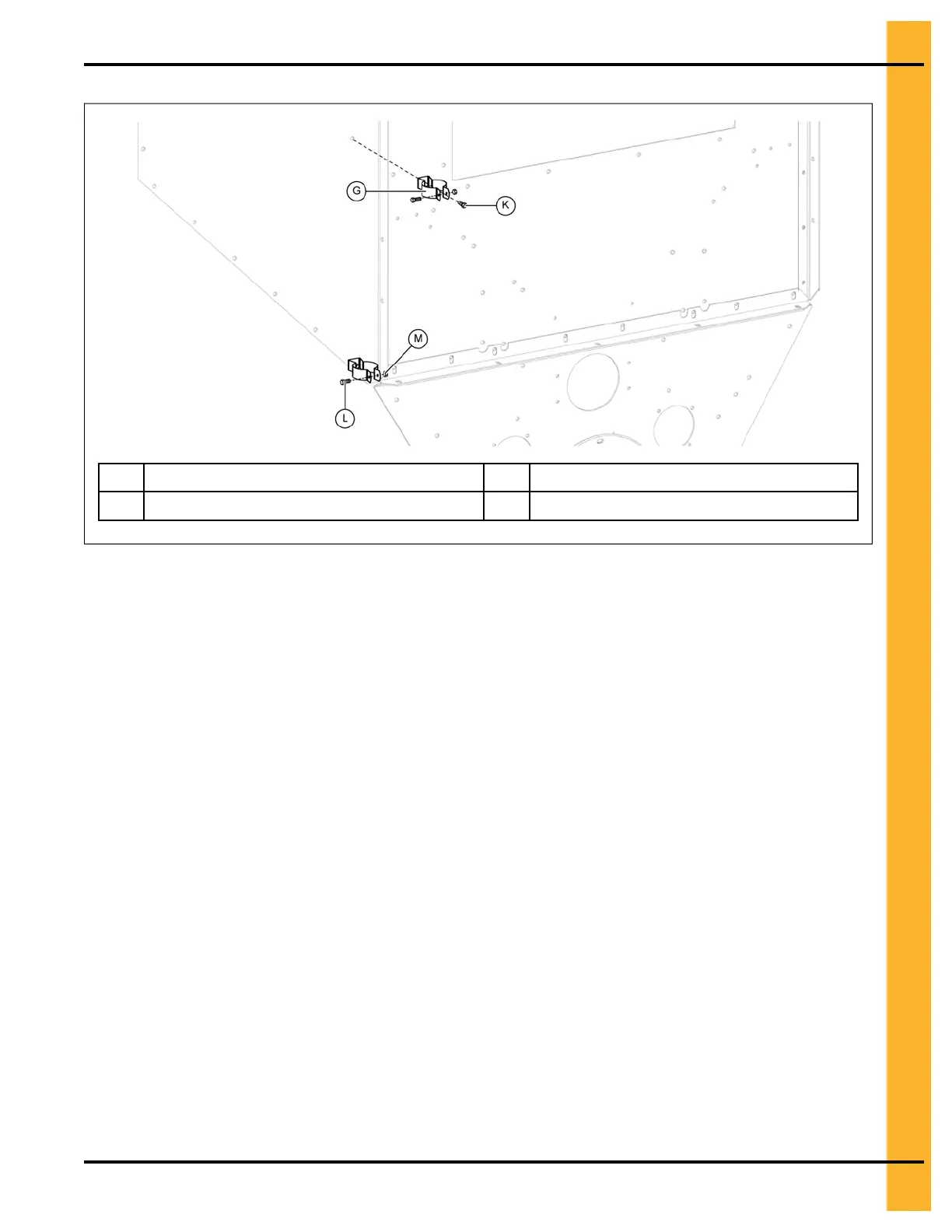

Figure 7-3 Conduit hangers installation
G Conduit hangers (S-6643)
L
5/16 in. x 1 in. bolt (S-1196)
K
Self-drilling screw (S-280)
M
5/16 in. hex nut (S-400)
6. Install the pipe conduit (H) between the blower (E) and the unload (I) using a hose clamps (J) to
fasten together each section. Guide the conduit through the conduit hangers (G).
