Chapter 7: Moisture Sampler

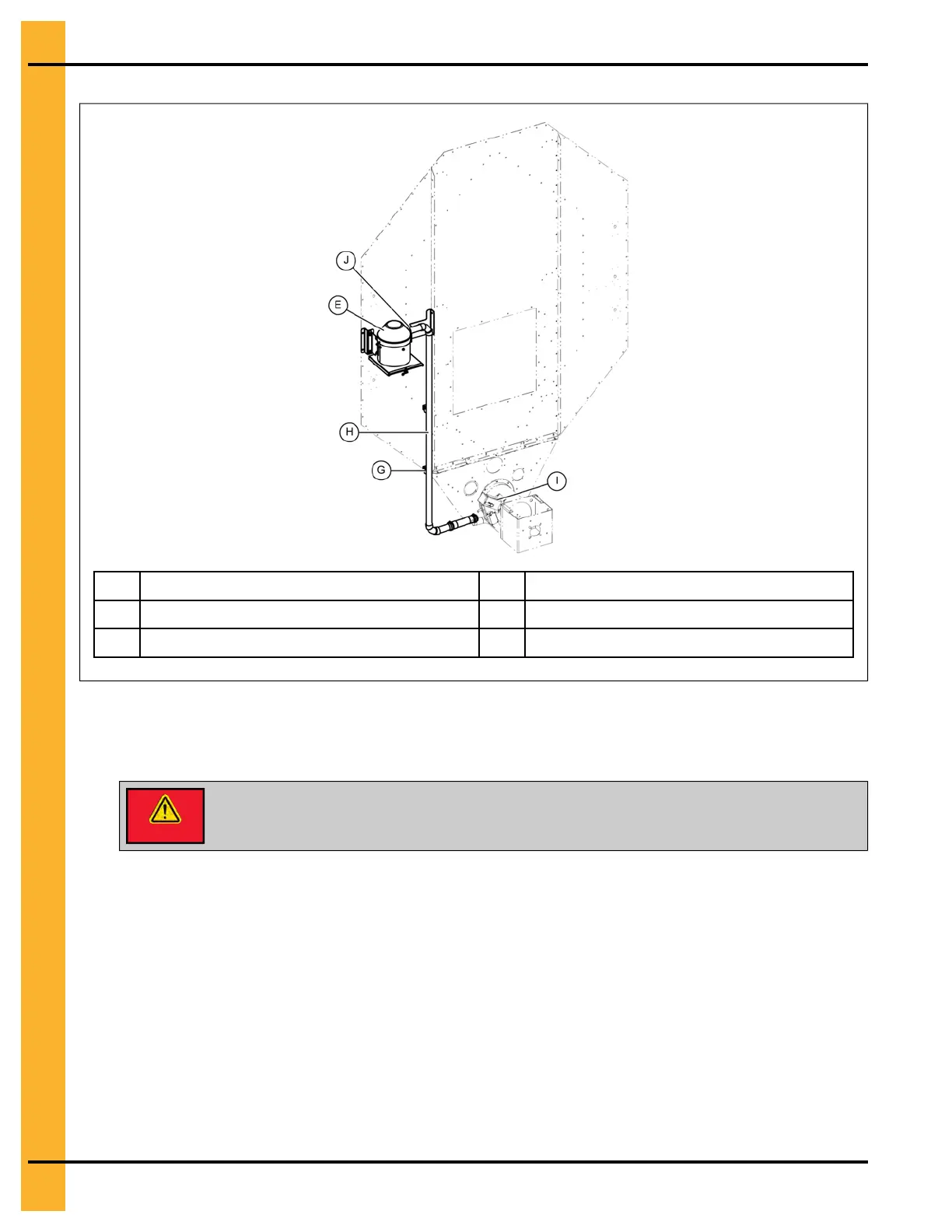

Figure 7-4 Hose installation
E
Blower assembly (D04-1016)
I Unload
G Conduit hangers (S-6643)
J
Hose clamp (AP-0583)
H
Pipe conduit (D04-1023)
7. Install the electrical conduit (N) from the blower to junction box (O). Secure conduit with 1/2" clamp
(HH-1096).
8. Install the electrical box to the gusset plate using four screws (S-995) and hex nuts (S-7931).
DANGER
Make sure all power is locked out before beginning the work.
9. Install wires through the electrical conduit (N) and connect the electrical wires according to the
appropriate wiring diagrams. For wiring diagrams, seeFigure 7-6 Wiring Diagrams , page 56.
