Chapter 7: Moisture Sampler

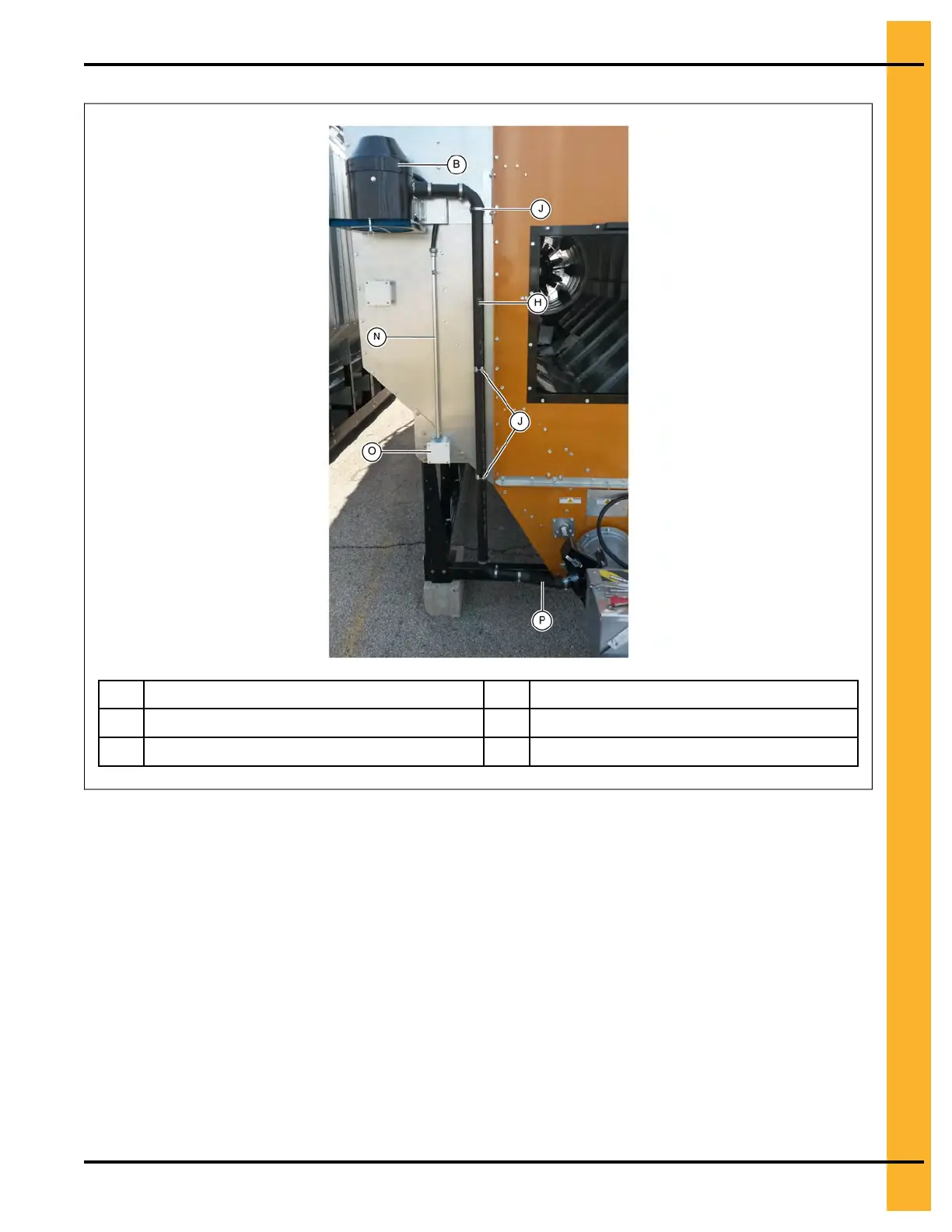

Figure 7-5 Conduit layout
B
Blower assembly (D04-1016)
N Electrical conduit
H
Pipe conduit (D04-1023) O
Junction Box
J
Hose clamp (AP-0583)
P
Flexible hose (D01–2973)
NOTE: If the dryer has an auger extension, an additional piece of flexible hose (D03–1190) will be
required. The longer lengths can be created by twisting one end of hose into another and
ensuring the couplers are not necessary to extend the hose. Also, D03–1199 (12 - 15 in.
hose clamp) can be used to support the flex hose by securing it to the auger extension.
PNEG–2088 Quiet Portable Dryer
53
