Chapter 2 Installation and Wiring
2.1 Installing the Cabinet
The FACP is wall-mounted as in Fig 2-1A.
Note: Cable connector should be installed in the knock-out hole to avoid cable abrasion
and foreign objects.
The below diagrams show the mounting holes for both the small version cabinets (Fig 2-1B).

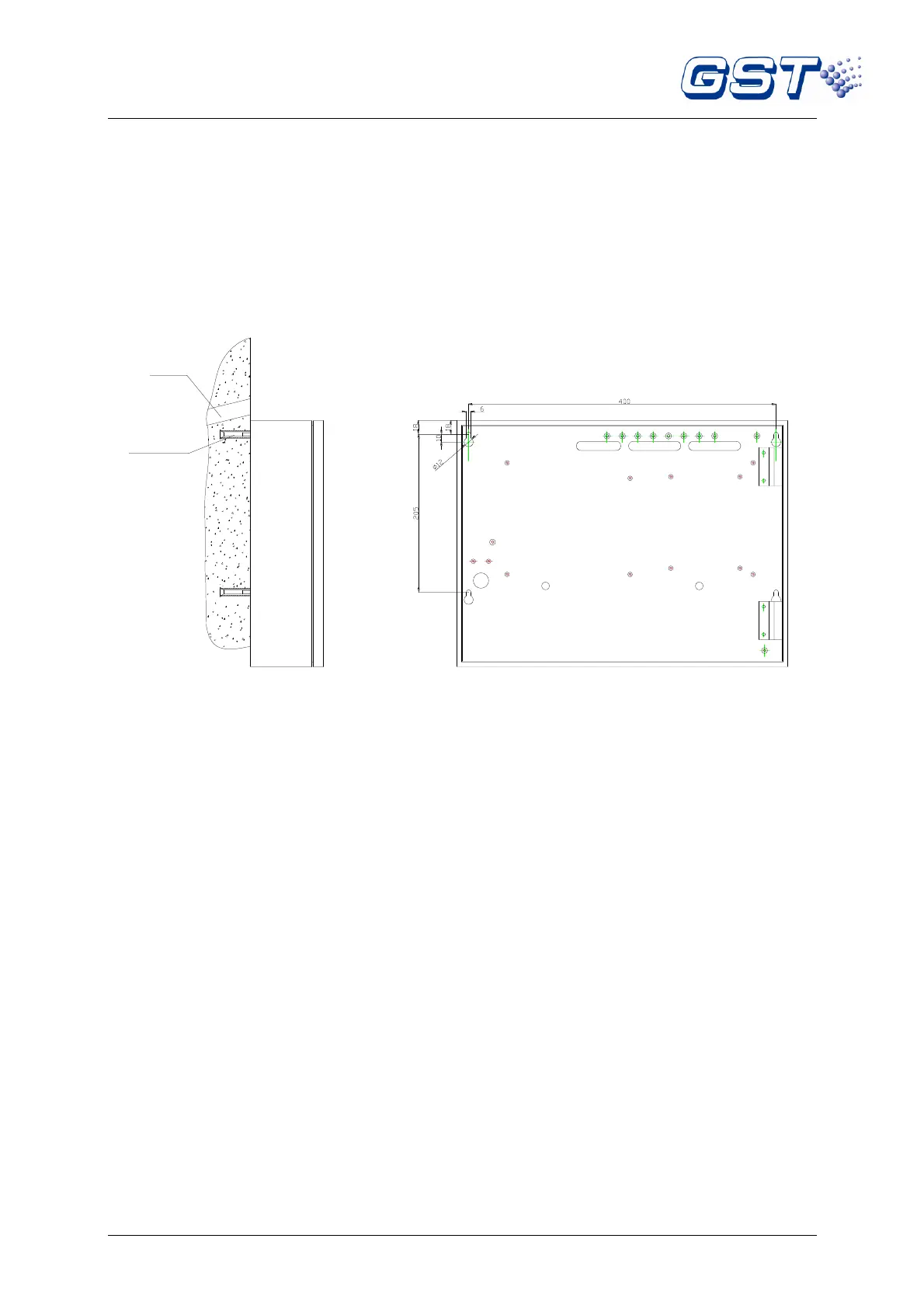

Fig. 2-1A
Conduit
Expansion
Bolt M5x50
（Unit: mm）
