5.2.1 Removing the transport securing device
A B C D E
C A F

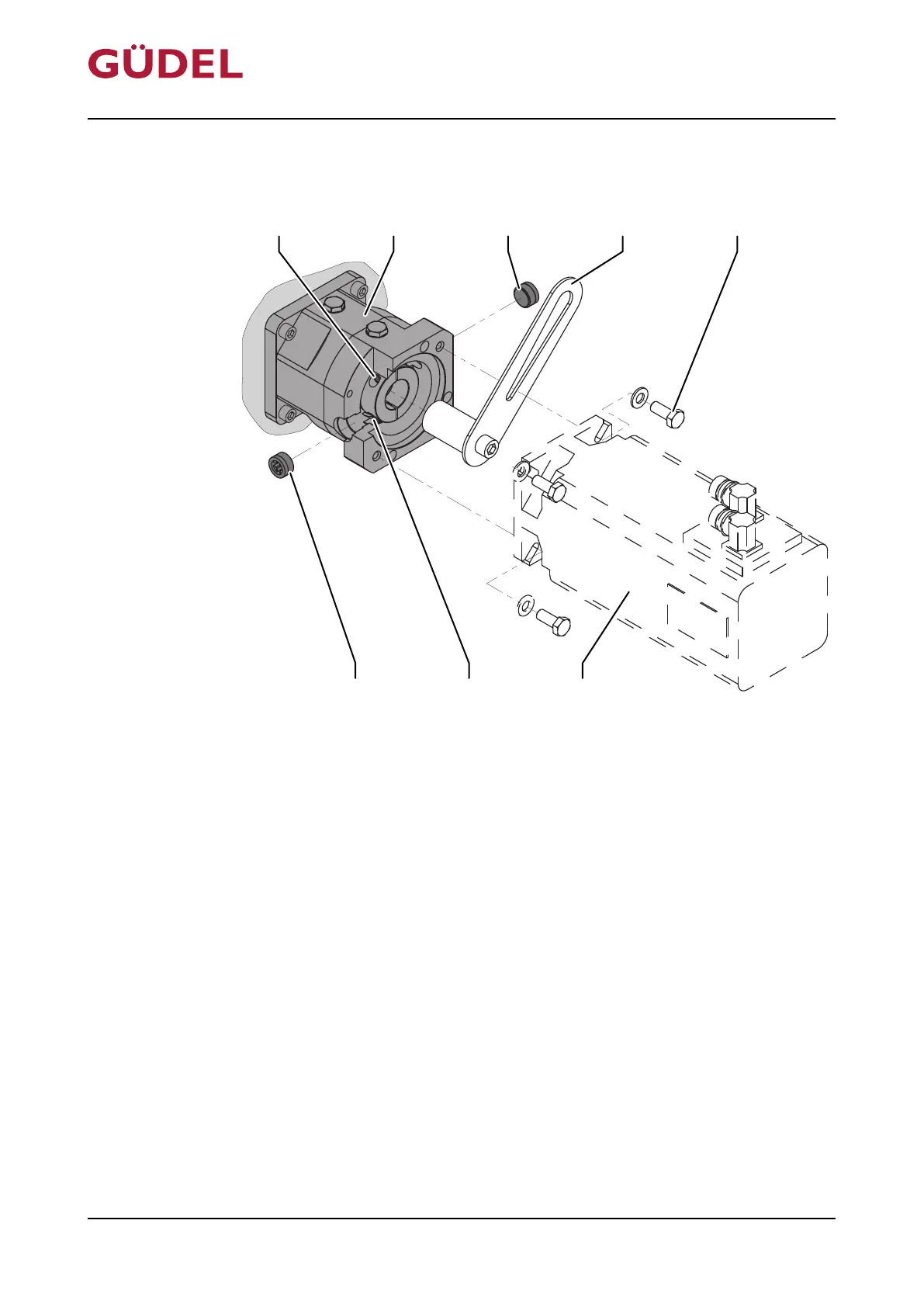

Fig.5-3 Removing transport securing device: Güdel planetary gearbox
A Coupling screw D Transport securing device
B Planetary gearbox E Motor screw
C Plug F Motor
Remove the transport securing device as follows:
1 Switch off the system and secure it with a padlock against being switched
on again
2 Remove the plug
3 Release the coupling screws
4 Remove the motor screws
5 Remove the transport securing device from the planetary gearbox
The transport securing device has been removed.
