A B C D E F

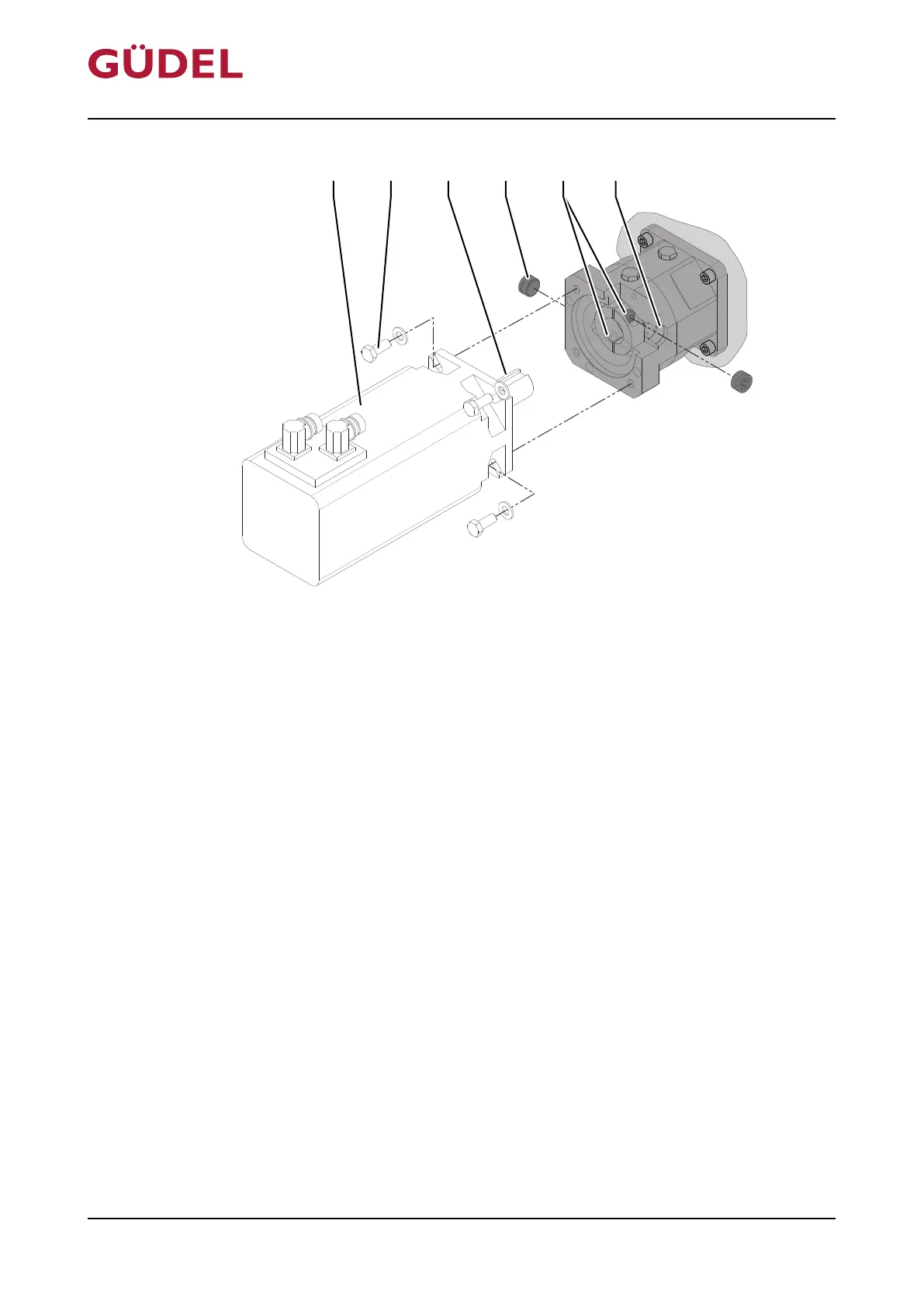

Fig.7-3 Remove motor: Planetary gearbox Güdel
A Motor D Plug
B Motor screws (if necessary with spacers
according to motor manufacturer specifi-
cations)
E Coupling screws
C Motor shaft F Drill hole
Remove the motor as follows:
1 Remove the plug
2 Check if the coupling screws can be reached through the drill hole
3 If there are deviations: Adjust axis until the coupling screws can be
reached through the drill hole
4 Switch off the system and padlock it to prevent it from being switched on
again
5 Attach slings to the motor Ü252
6 Release the coupling screws
7 Remove the motor screws
8 Remove motor
The motor has been removed.
Maintenance SERVICE MANUAL Güdel planetary gear NR, SR, PR
9007199543219723_v1.1_EN-US
54
