GUDEL PR - Fig. 8 -2 Güdel Planetary Gearbox: Identifying Lubricant Quantity; Identifying Lubricant Amount; Table 8-2 Güdel Planetary Gearbox: Number of Stages

8.2.2.1 Identifying lubricant amount
The lubricant amount can be found on the type plate or the type key of the
spare parts list. If you have any questions, please contact our service depart-
ments.
GUDEL- SUMER
REF : NR240-280-A1-z20-m3H-TP-P12-AM
Made in France
OIL Qty : 2000 cc OF:34274/4
N° 53953 DATE: 3/3/2018
ADAPT : R130/M8-S110-t3.5-d32x58
A B C D E

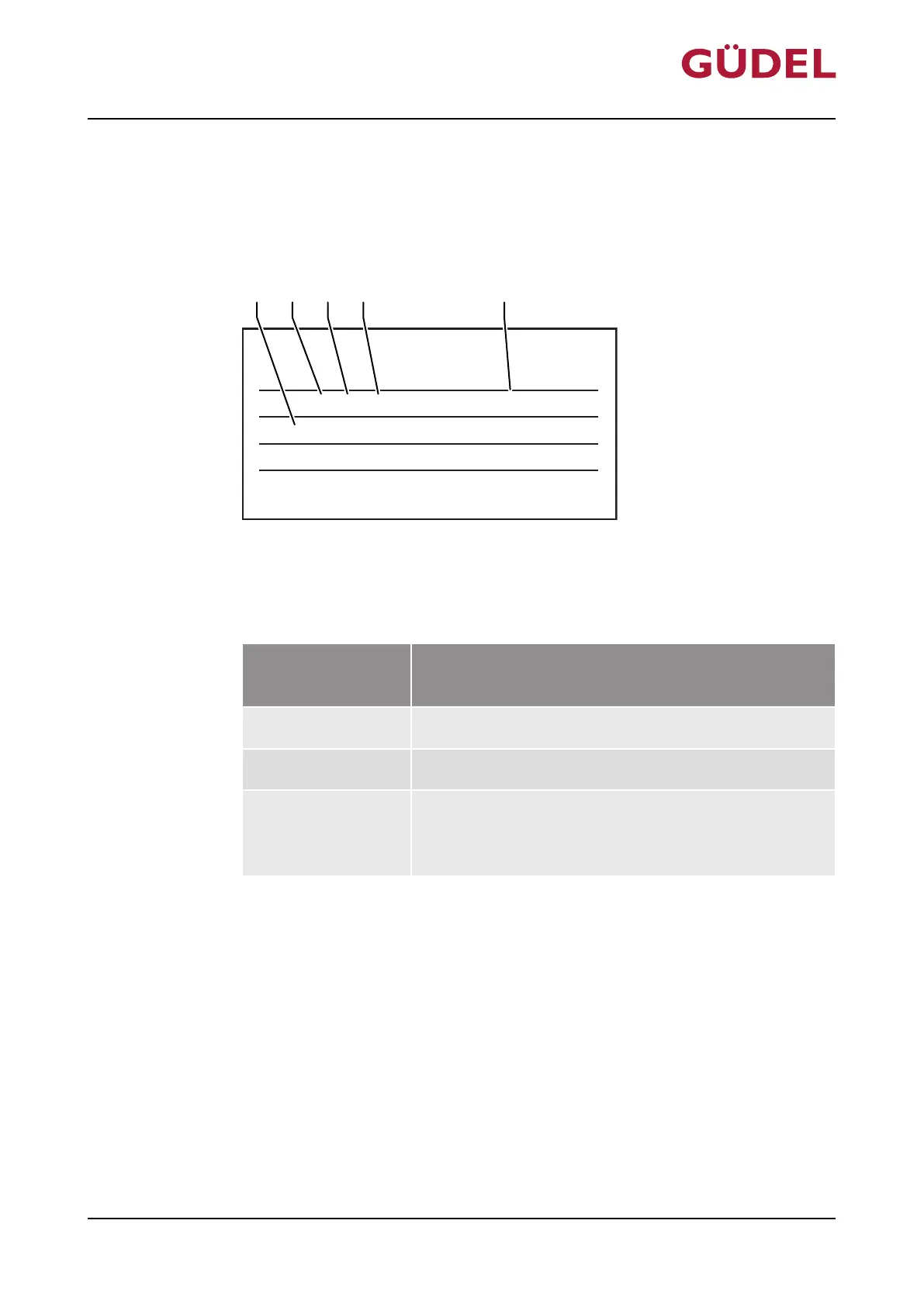

Fig.8-2 Güdel planetary gearbox: Identifying lubricant quantity
A Lubricant quantity [cm
3
] D Ratio
B Type E Installation position
C Size
Number of
stages
Ratios
1 3,4,5,7,10
2 9,12,12R,15,16,20,21,25,28,30,35,40,49,50,70,100
3 27,36,36R,45,48,60,63,64,75,80,84,90,105,
112,120,125,140,147,150,160,175,196,200,210,245,25
0,280, 300,343,350,400,490,500,700,1000
Table8-2 Güdel planetary gearbox: Number of stages
RepairsSERVICE MANUAL Güdel planetary gear NR, SR, PR
