GUDEL PR - Fig. 8 -3 Removing the Pinion; Replacing the Pinion; Table 8-4 Properties of the Headless Set Screws

8.2.3 Replacing the pinion
If pins are defective, the gearbox will also be damaged internally! Send the
gearbox to Güdel for repairs.
8.2.3.1 Removing the pinion
Œ
‘
•
”“
Ž
•
•
’
A B C
F E D

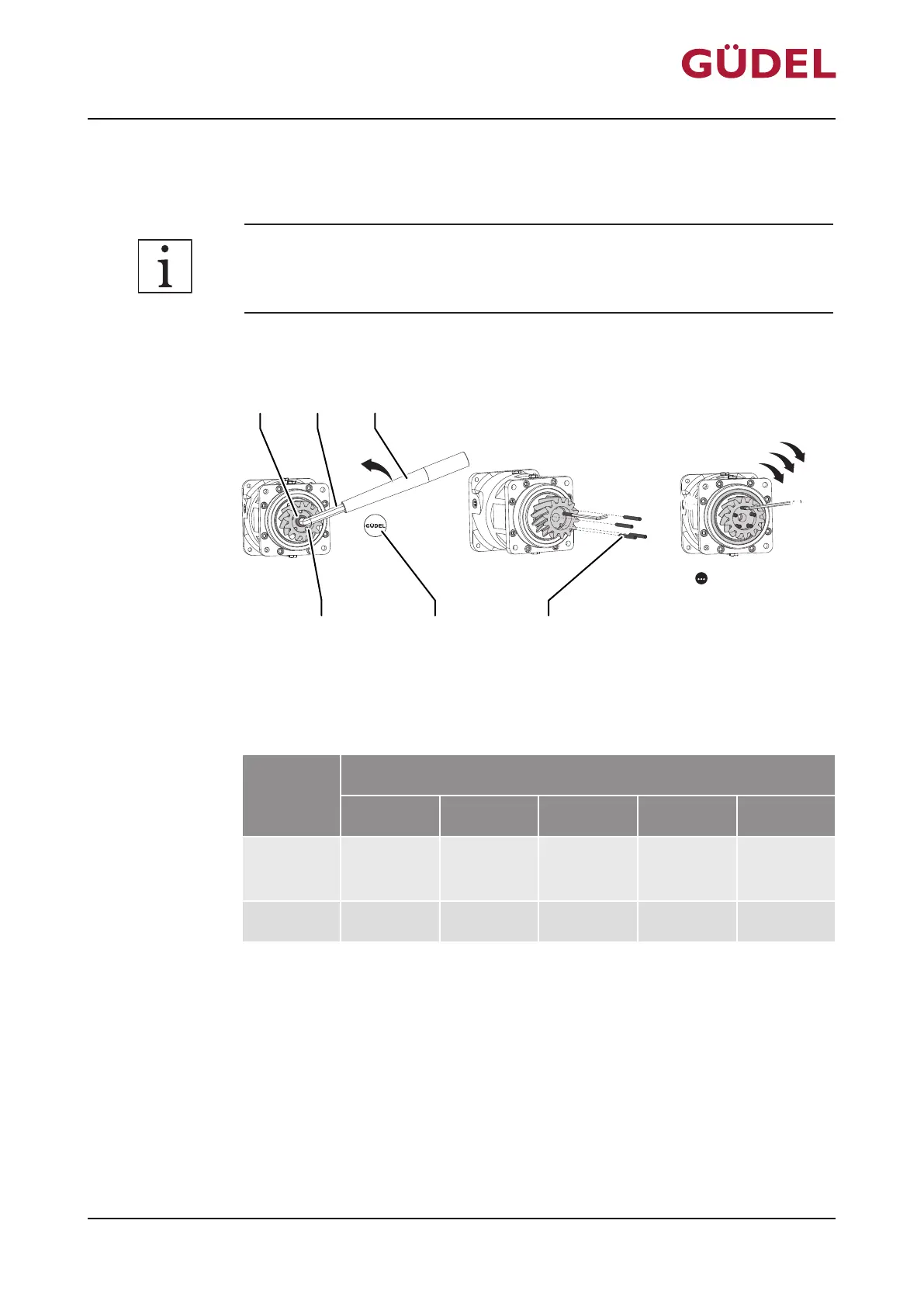

Fig.8-3 Removing the pinion
A Fastening screw D Headless set screw
B Hexagonal socket wrench E Cover
C Elongation piece F Pin
Property Type / Size
80 110 140 180 240
Dimen-
sion
M5x40 M8x45 M8x60 M8x70 M10x80
Quality 12.9 12.9 12.9 12.9 12.9
Table8-4 Properties of the headless set screws
RepairsSERVICE MANUAL Güdel planetary gear NR, SR, PR
9007199543219723_v1.1_EN-US
77
