6.3.2 Mounting the motor
If possible, mount the motor in the vertical direction (motor at top, motor
shaft below)
A B C D E F
GH

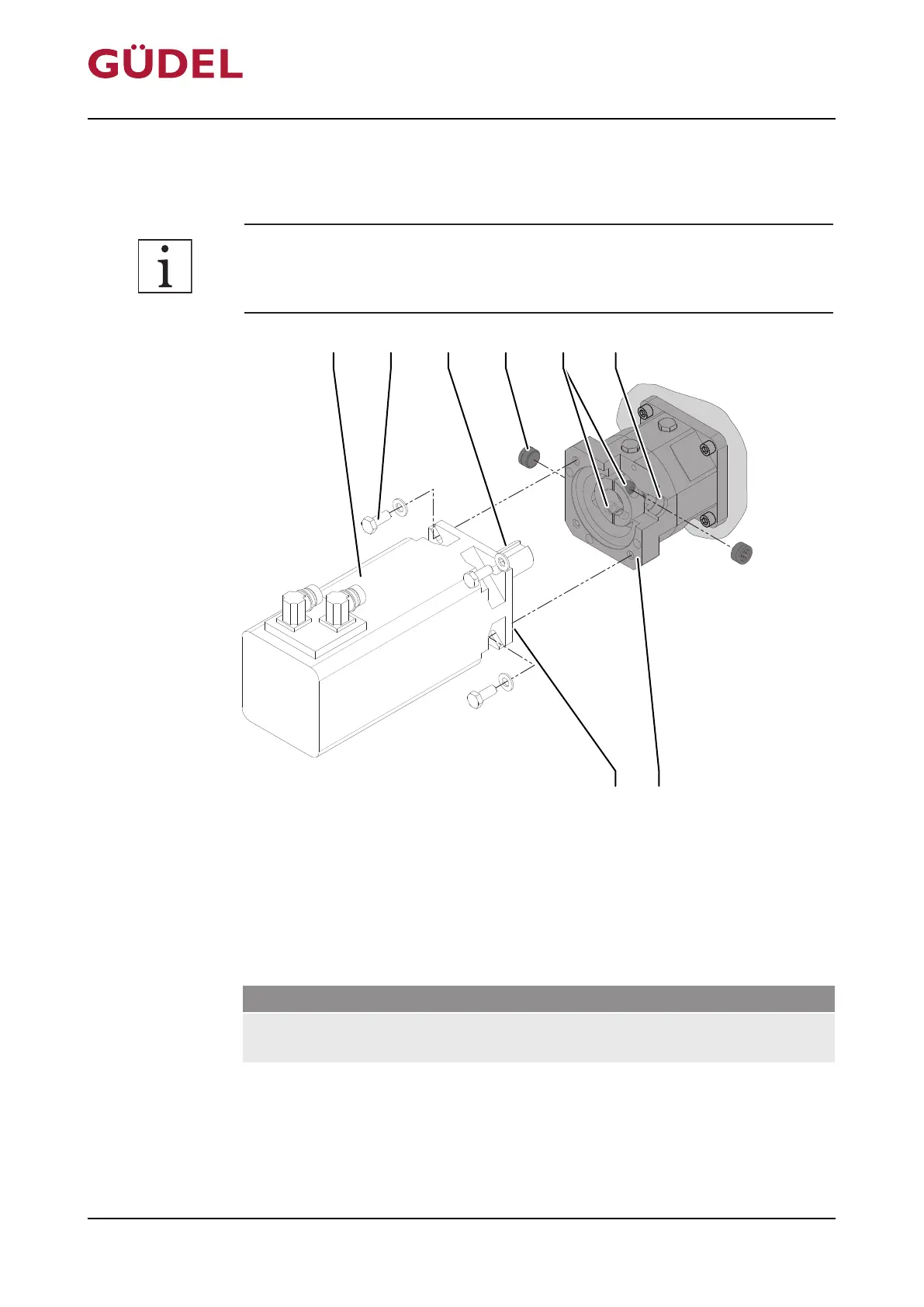

Fig.6-2 Mounting the motor: Güdel planetary gear
A Motor E Coupling screw
B Motor screw (if necessary with washers
according to motor manufacturer specifi-
cations)
F Drill hole
C Motor shaft G Gearbox contact surface
D Sealing plug H Motor contact surface
Cleaning agents
mild universal cleaner free from aromatic compounds (e.g. Motorex OPAL
5000)
Table6-1 Cleaning agents: Coupling, contact surfaces, and motor shaft
Commissioning SERVICE MANUAL Güdel planetary gear NR, SR, PR
9007199543219723_v1.1_EN-US
40
