7.2.5 Maintenance tasks after 22,500 hours
7.2.5.1 Replacing the Güdel planetary gearbox
Attaching the slings: Planetary gearbox
WARNING
Suspended loads
Improper handling of suspended loads can lead to severe injuries or death!
Use appropriate lifting units
Wear appropriate protective clothing
Always keep sufficient distance from suspended loads
Never enter the area below a suspended load
D002990
A
B
C

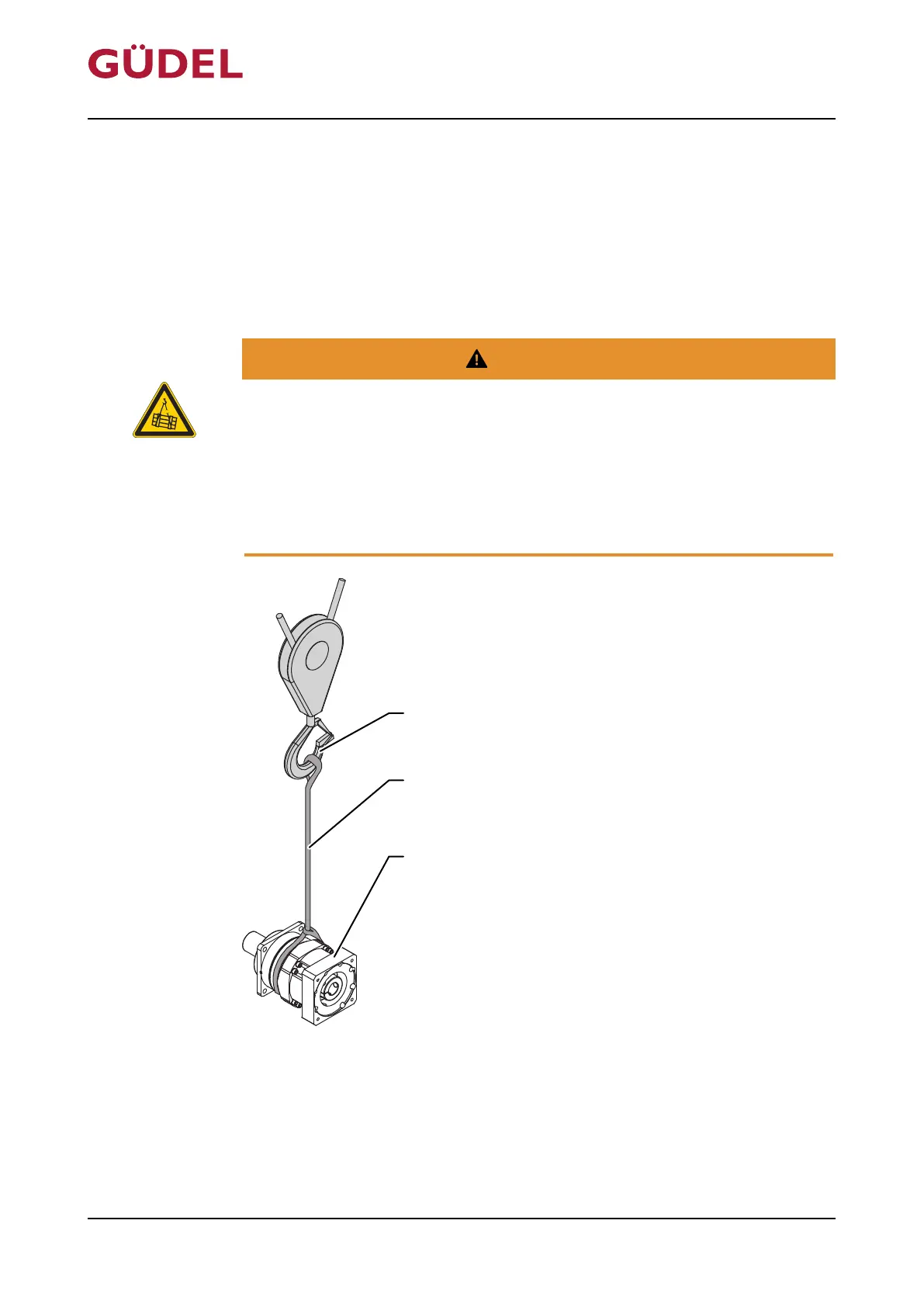

Fig.7-1 Attaching the slings: Planetary gearbox
A Crane hook
B Lifting belt
C Gearbox
Maintenance SERVICE MANUAL Güdel planetary gear NR, SR, PR
9007199543219723_v1.1_EN-US
