Attaching the slings: Motor
WARNING
Suspended loads
Improper handling of suspended loads can lead to severe injuries or death!
• Use appropriate lifting units
• Wear appropriate protective clothing
• Always keep sufficient distance from suspended loads
• Never enter the area below a suspended load

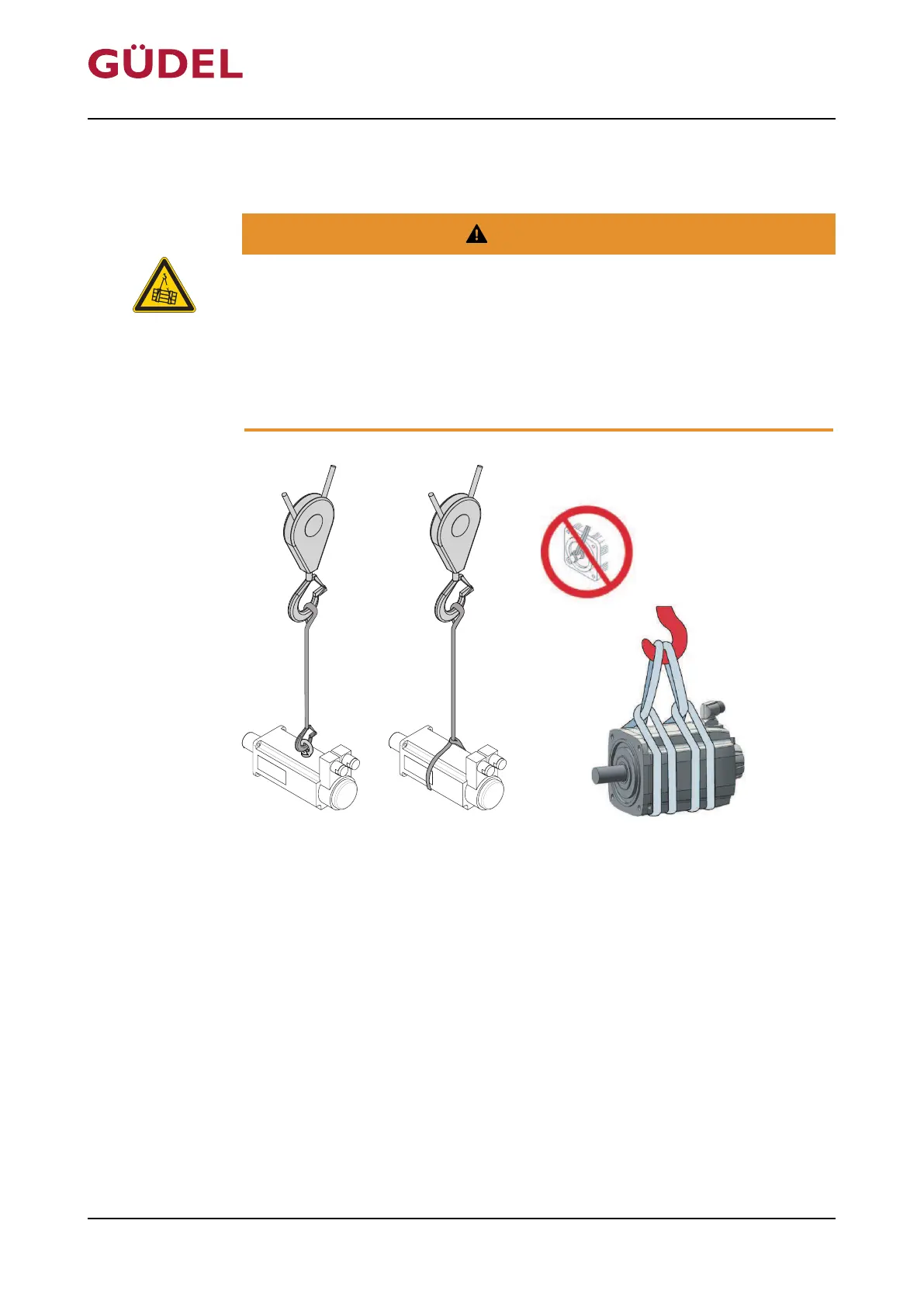

Fig.7-2 Attaching the slings: Motor (image source: Bosch Rexroth)
Attach the slings as follows:
1 Remove fan from motor if necessary
2 Mount lifting screw if necessary
3 Attach the slings as shown in the illustration
4 Carefully lift the load
5 Check horizontal alignment of the load
6 If the load tilts: Repeat process from step 3
The slings are in place.
Maintenance SERVICE MANUAL Güdel planetary gear NR, SR, PR
