GUDEL PR - Replacing the Güdel Planetary; Fig. 7 -4 Mounting the Motor: Güdel Planetary Gear; Mounting the Motor

Replacing the Güdel planetary gearbox
Replace the Güdel planetary gearbox as follows:
1 Replacing the Güdel planetary gearbox
The planetary gear has been replaced.
Mounting the motor
If possible, mount the motor in the vertical direction (motor at top, motor
shaft below)
A B C D E F
GH

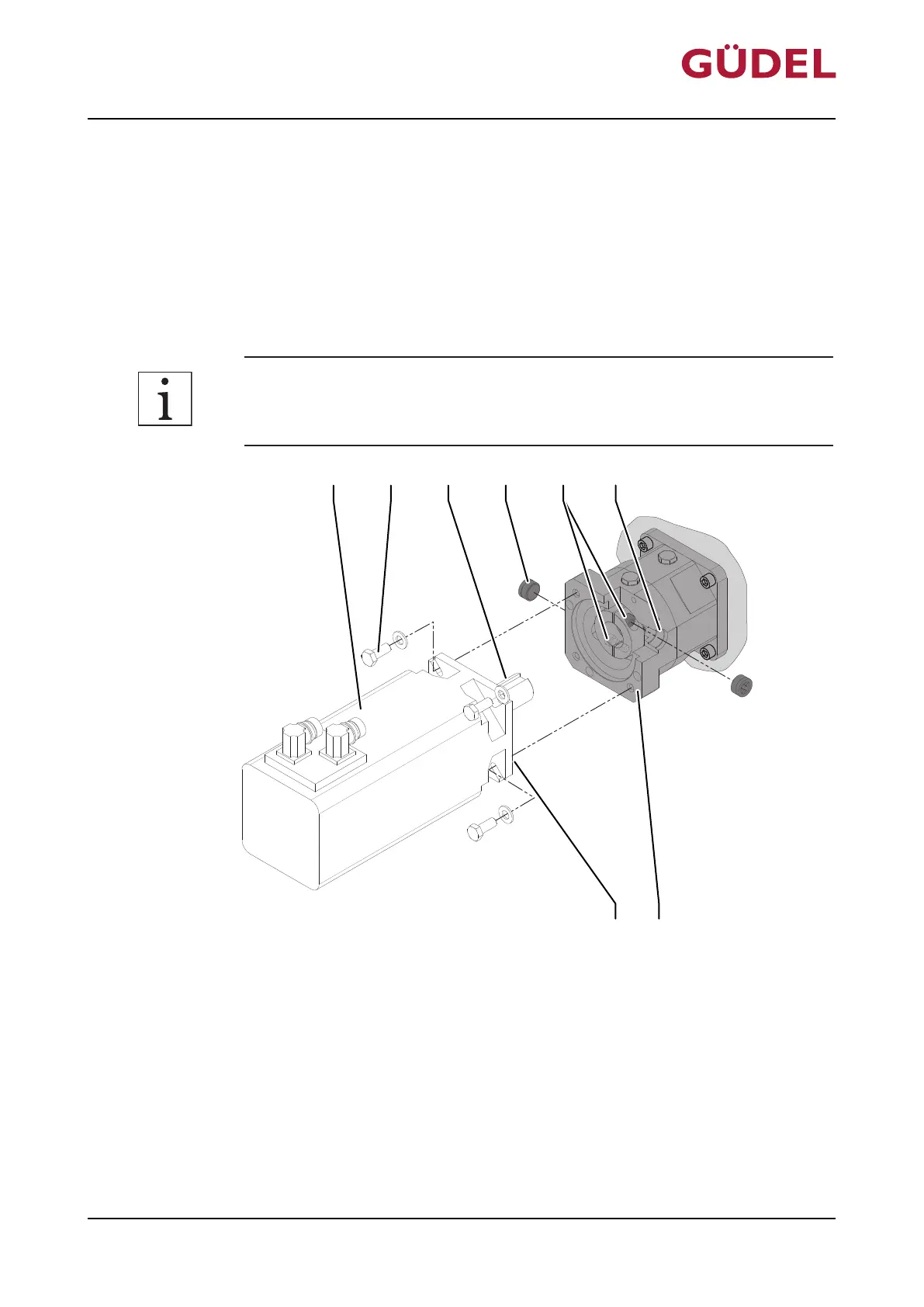

Fig.7-4 Mounting the motor: Güdel planetary gear
A Motor E Coupling screw
B Motor screw (if necessary with washers
according to motor manufacturer specifi-
cations)
F Drill hole
C Motor shaft G Gearbox contact surface
D Sealing plug H Motor contact surface
MaintenanceSERVICE MANUAL Güdel planetary gear NR, SR, PR
