9
4. One person holds the switch chassis and aligns the installation holes on the mounting brackets
with the cage nuts on the rack posts.
5. The other person attaches the mounting brackets with M6 screws (user-supplied) to the rack.

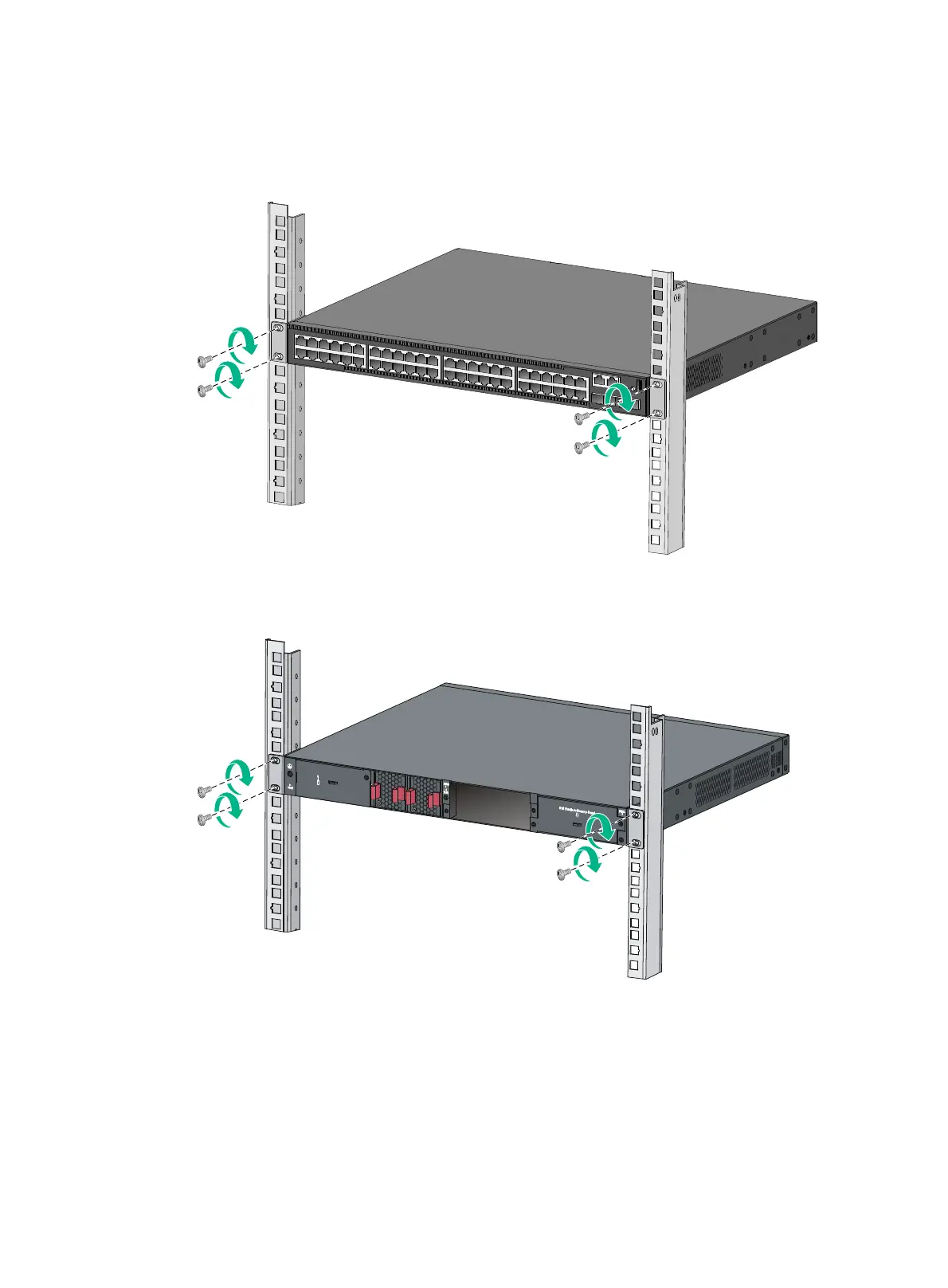

Figure 8 Mounting the switch in the rack (front mounting brackets at the port side)
Figure 9 Mounting the switch in the rack (front mounting brackets at the power module
side)
