H3C S5560X-EI Series User Manual

73

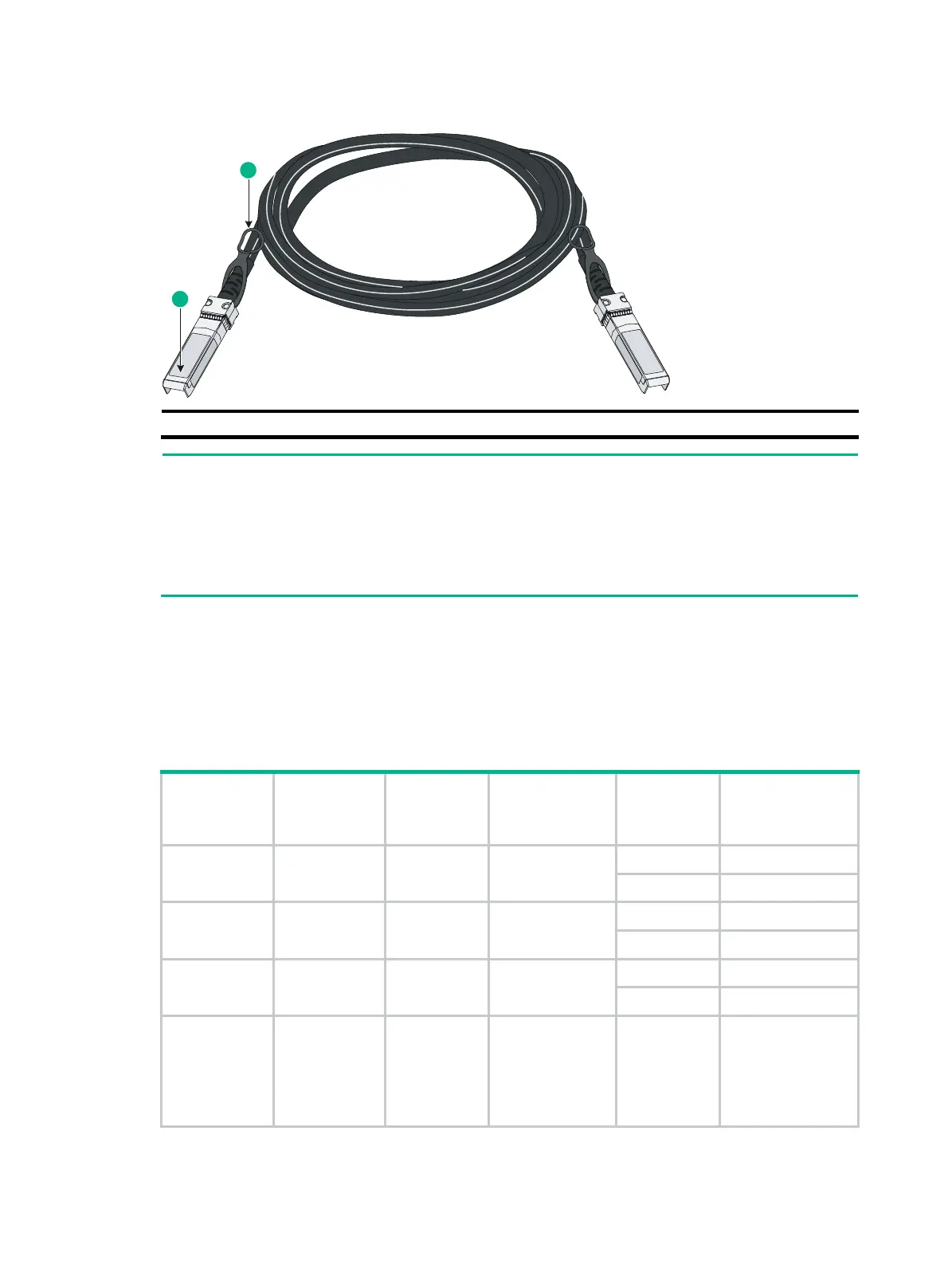

Figure 70 SFP28 cable
(1) Connector (2) Pull latch
NOTE:
• As a best practice, use H3C transceiver modules and cables for the switch.
• The H3C transceiver modules and cables are subject to change over time. For the most recent
list of H3C transceiver modules and cables, contact your H3C Support or marketing staff.
• For more information about H3C transceiver modules and cables, see H3C Transceiver Modules
User Guide.
QSFP+ port
The S5560X-34S-EI and S5560X-54S-EI switches each provide two QSFP+ ports on the rear panel.
You can install the QSFP+ transceiver modules in Table 30, the QS
FP+ cables in Table 31, and the
QSFP+ to SFP+ cables in Table 32 in the QSFP+
ports.
Table 30 QSFP+ transceiver modules available for the QSFP+ ports
QSFP+
transceiver
module
Central
wavelength
(nm)
Connector
Fiber type and
diameter (µm)
Modal
bandwidth
(MHz × km)
Max
transmission
distance
QSFP-40G-S
R4-MM850
850 MPO
Multi-mode,
50/125
2000 100 m (328.08 ft)
4700 150 m (492.12 ft)
QSFP-40G-C
SR4-MM850
850 MPO
Multi-mode,
50/125
2000 300 m (984.25 ft)
4700 400 m (1312.33 ft)
QSFP-40G-BI
DI-SR-MM850
850 LC
Multi-mode,
50/125
2000 100 m (328.08 ft)
4700 150 m (492.12 ft)
QSFP-40G-LR
4-WDM1300
Four lanes:
• 1271.
• 1291.
• 1311.
• 1331.
LC
Single-mode,
9/125
N/A 10 km (6.21 miles)
1
2
