H3C S5560X-EI Series - S5560 X-54 S-EI Chassis; Hot-swappable fan trays; Expansion cards

55
S5560X-54S-EI

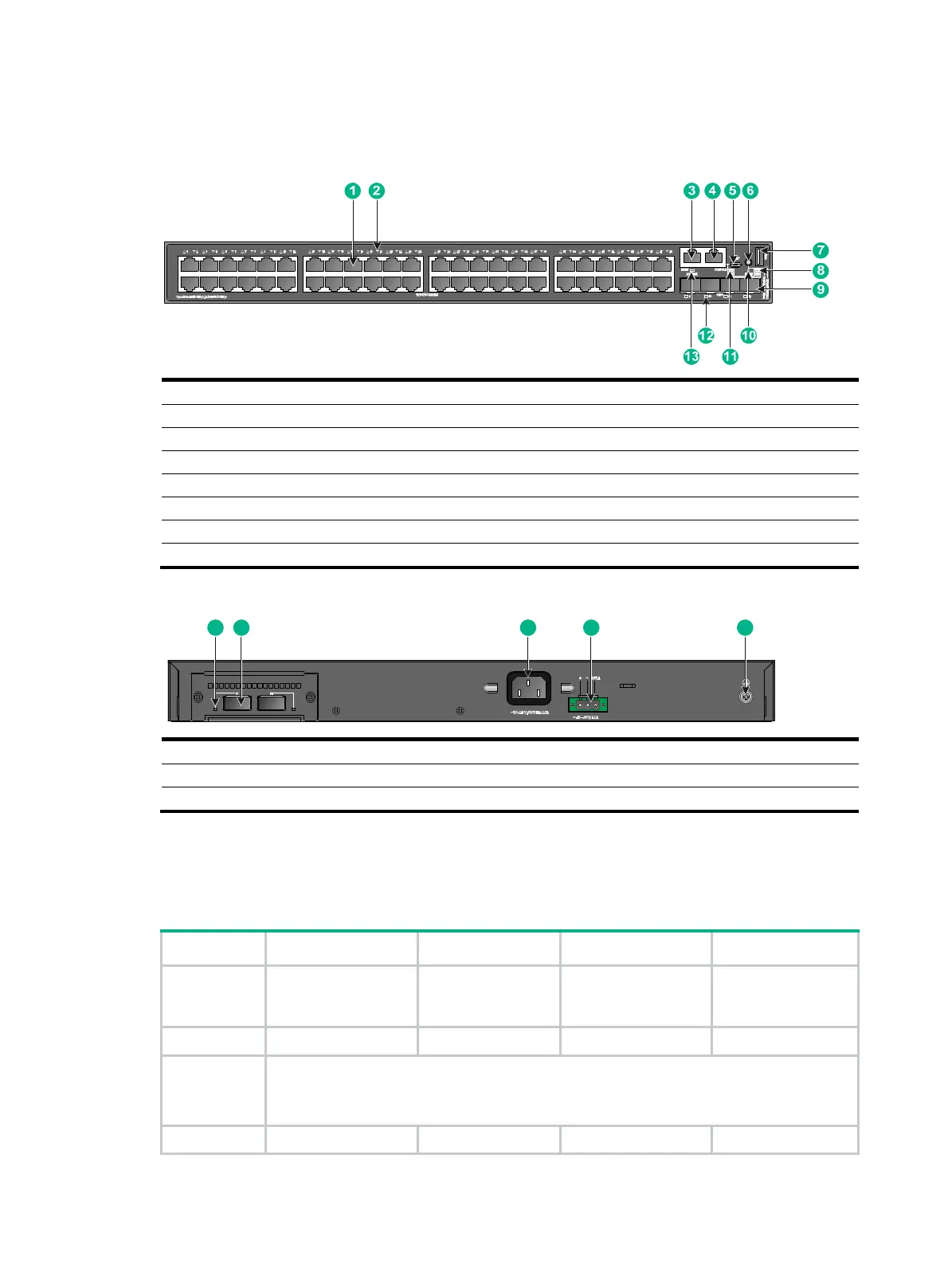

Figure 67 Front panel
(1) 10/100/1000BASE-T autosensing Ethernet port
(2) 10/100/1000BASE-T autosensing Ethernet port LED
(3) Management Ethernet port (4) Console port (CONSOLE)
(5) Micro USB console port (6) Mode button
(7) USB port (8) System status LED (SYS)
(9) SFP+ port (10) Mode LED (MODE)
(11) RPS status LED (RPS) (12) SFP+ port LED
(13) Management Ethernet port LED (ACT/LINK)
Figure 68 Rear panel
(1) QSFP+ port LED (2) QSFP+ port
(3) AC power receptacle (4) DC power receptacle
(5) Grounding screw
Technical specifications
Table 10 Technical specifications for non-PoE switch models (1)
Item S5560X-30C-EI S5560X-54C-EI S5560X-30F-EI S5560X-54F-EI
Dimensions
(H × W × D)
43.6 × 440 × 360 mm
(1.72 × 17.32 × 14.17
in)
43.6 × 440 × 360
mm (1.72 × 17.32 ×
14.17 in)
43.6 × 440 × 360 mm
(1.72 × 17.32 × 14.17
in)
43.6 × 440 × 360
mm (1.72 × 17.32 ×
14.17 in)
Weight ≤ 6.7 kg (14.77 lb) ≤ 7.0 kg (15.43 lb) ≤ 6.6 kg (14.55 lb) ≤ 6.7 kg (14.77 lb)
Console port
• 1 × micro USB console port
• 1 × serial console port
Only the micro USB console port is available when you connect both ports.
USB port 1 1 1 1
1 2 3 4 5
