26

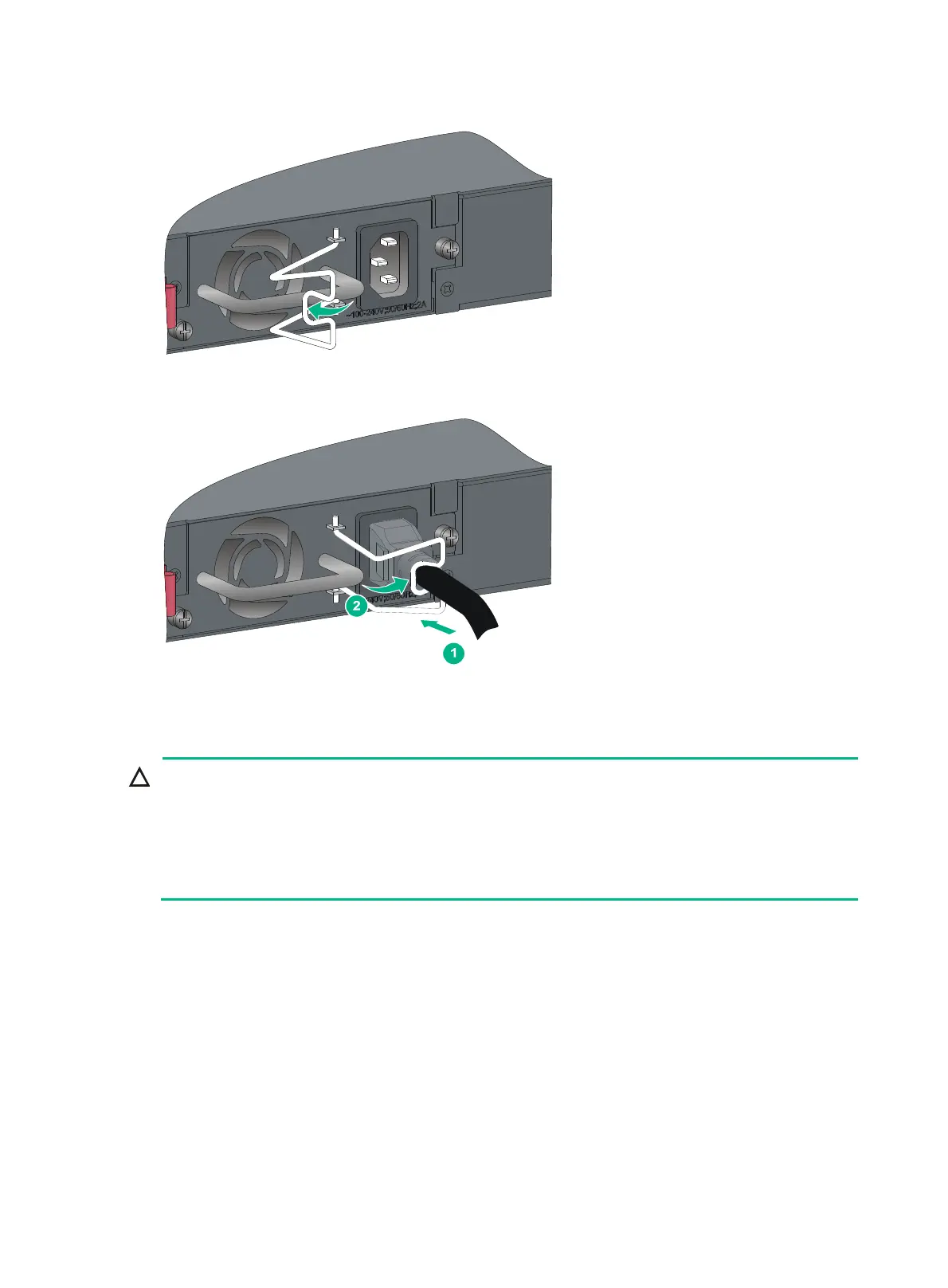

Figure 33 Connecting the PSR150-A1 (1)
Figure 34 Connecting the PSR150-A1 (2)
Connecting the PSR150-D1/PSR560-56D
CAUTION:
• To use a –48 VDC power source for power supply, purchase an H3C recommended DC power
cord yourself.
• To use an RPS for power supply, purchase a power cord compatible with the RPS yourself.
• To connect the power cord to a –48 VDC power source, identify the positive (+) and negative (-)
marks on the two wires of the power cord to avoid connection mistakes.
To connect the PSR150-D1/PSR560-56D:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Unpack the DC power cord, correctly orient the connector at one end of the cable with the
DC-input power receptacle on the power module, and insert the connector into the power
receptacle (see callout 1 in Figure 35).
The power receptacle is foolproof. If you cannot insert the connector into the receptacle,
re-orient the connector rather than use excessive force to push it in.
3. Tighten the screws on the connector with a flat-blade screwdriver to secure the connector in the
DC-input power receptacle (see callout 2 in Figure 35).
4. Con
nect the two wires at the other end of the power cord to a –48 VDC power source or an
RPS.
