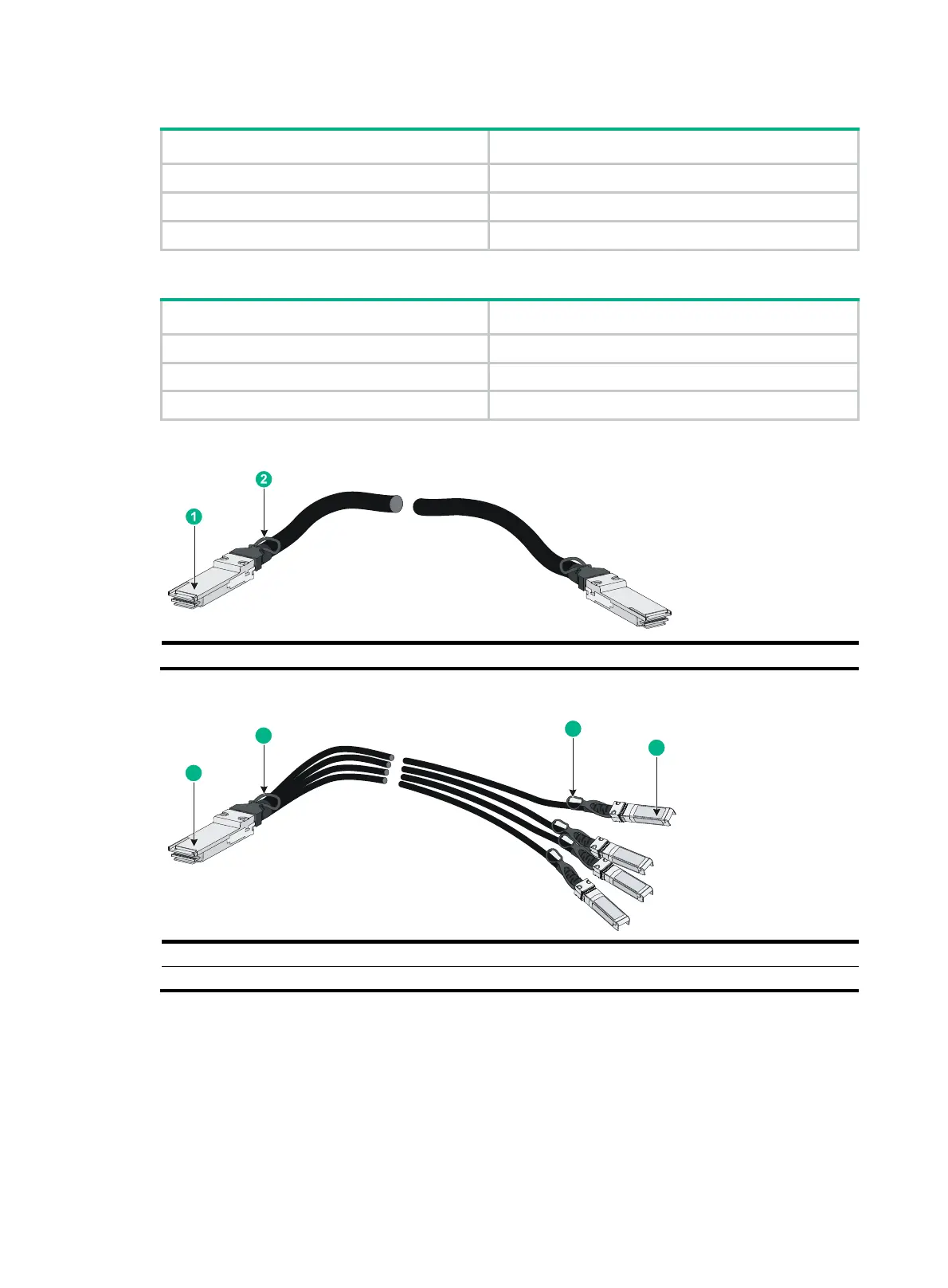

Table 31 QSFP+ cables available for the QSFP+ ports
QSFP+ network cable Max transmission distance
LSWM1QSTK0 1 m (3.28 ft)
LSWM1QSTK1 3 m (9.84 ft)
LSWM1QSTK2 5 m (16.40 ft)
Table 32 QSFP+ to SFP+ cables available for the QSFP+ ports
QSFP+ to SFP+ cable Max transmission distance
LSWM1QSTK3 1 m (3.28 ft)
LSWM1QSTK4 3 m (9.84 ft)
LSWM1QSTK5 5 m (16.40 ft)
Figure 71 40G QSFP+ cable
(1) Connector (2) Pull tab
Figure 72 40G QSFP+ to SFP+ cable
(1) QSFP+ module (2) QSFP+ side pull tab
(3) SFP+ side pull tab (4) SFP+ module
3
4
1
2
