H3C S6850 Series

19

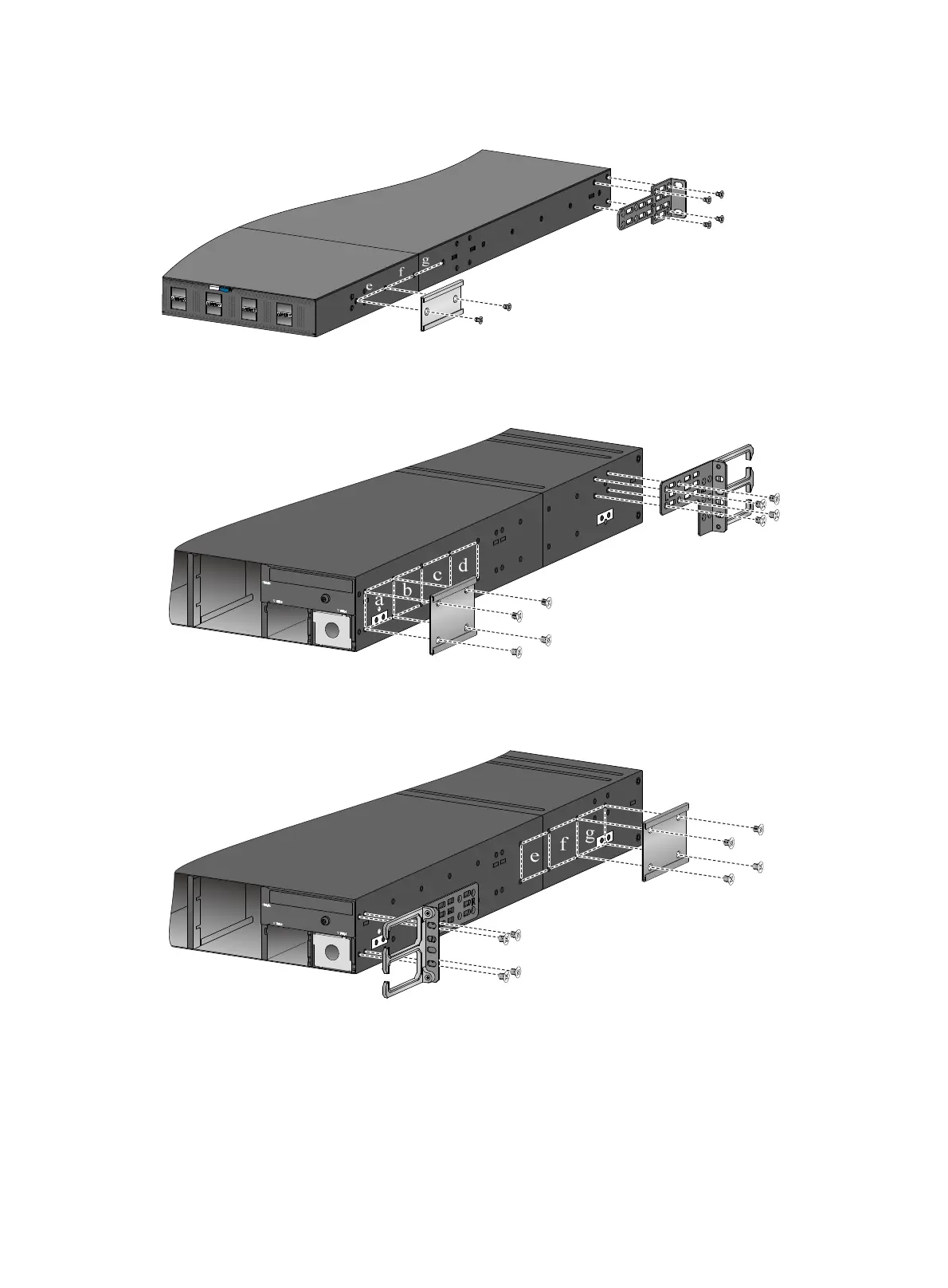

Figure 29 Attaching the mounting brackets and chassis rails to the S6850-2C switch (power
module-side mounting position for the mounting brackets)
Figure 30 Attaching the mounting brackets and chassis rails to the S9850-4C switch
(port-side mounting position for the mounting brackets)
Figure 31 Attaching the mounting brackets and chassis rails to the S9850-4C switch (power
module-side mounting position for the mounting brackets)
