52
Appendix A Chassis views and technical
specifications
Chassis views
S6850-56HF

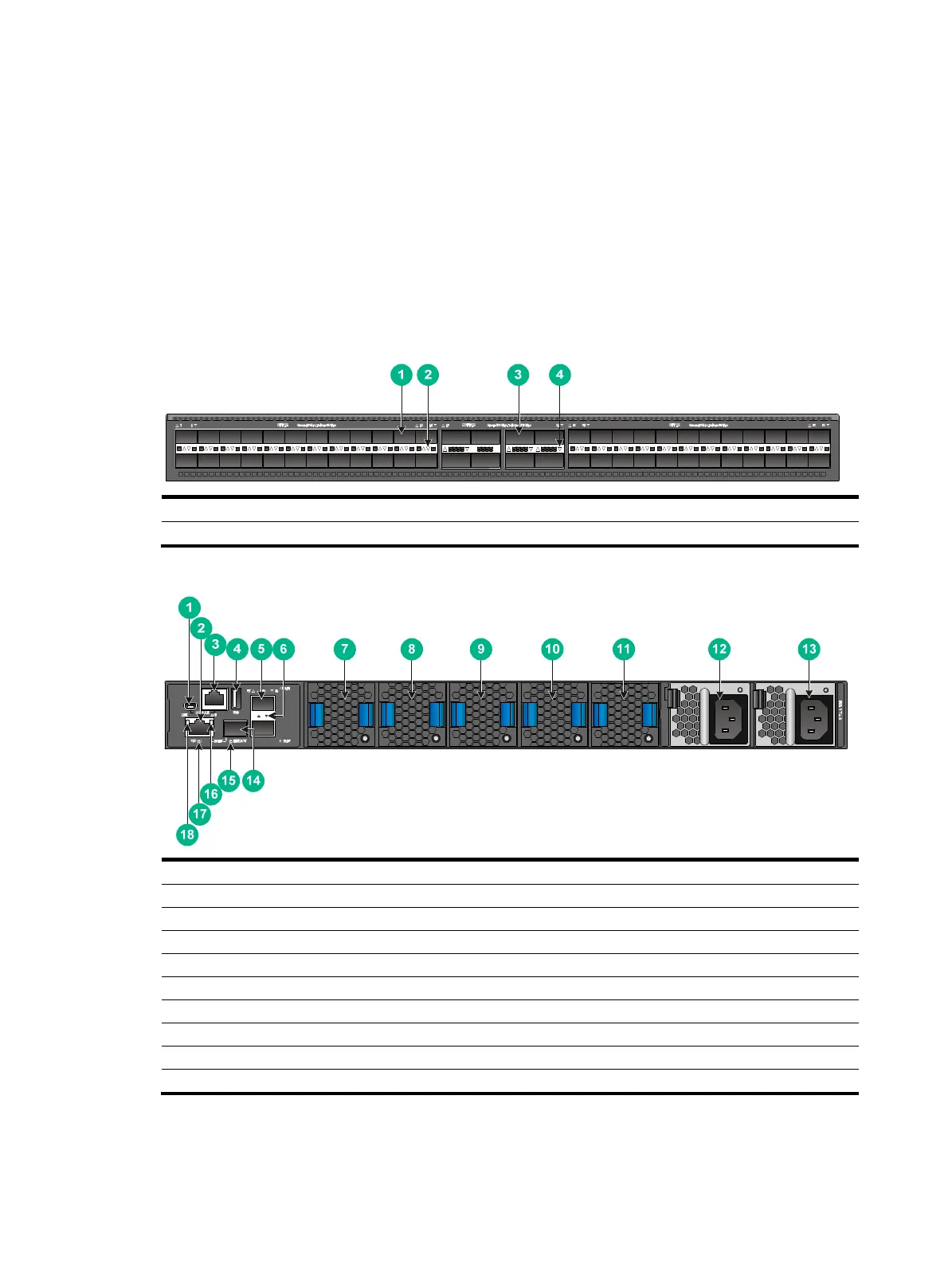

Figure 72 S6850-56HF front panel
(1) SFP28 port (2) SFP28 port LED
(3) QSFP28 port (4) QSFP28 port LED
Figure 73 S6850-56HF rear panel
(1) Mini USB console port (2) Copper management Ethernet port
(3) Serial console port (4) USB port
(5) SFP port (6) SFP port LED
(7) Fan tray 1 (8) Fan tray 2
(9) Fan tray 3 (10) Fan tray 4
(11) Fan tray 5 (12) Power module 1
(13) Power module 2 (14) Fiber management Ethernet port
(15) Fiber Management Ethernet port LED (LINK/ACT)
(16) Copper management Ethernet port LED (ACT) (17) System status LED (SYS)
(18) Copper management Ethernet port LED (LINK)
