The S6850-56HF switch comes with power module slot PWR1 empty and power module slot PWR2
installed with a filler panel. You can install one or two power modules for the switch as needed.
In Figure 73, two LSVM1A
C650 power modules are installed in the power module slots.
The S6850-56HF switch comes with the five fan tray slots empty. You must install five fan trays of the
same model for the switch. In Figure 73,
five LSWM1FANSA fan trays are installed in the fan tray
slots.

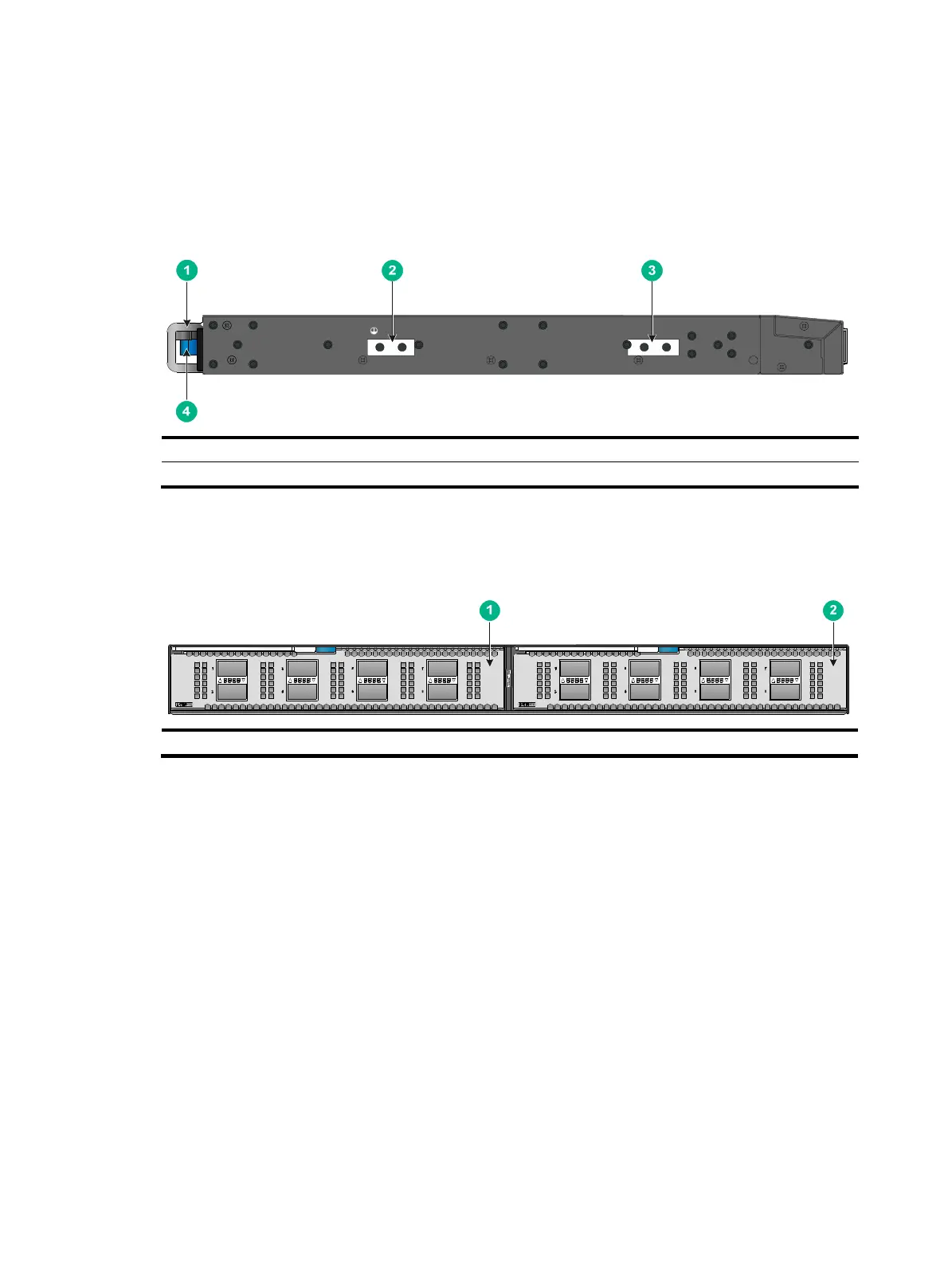

Figure 74 S6850-56HF left panel
(1) Power module handle (2) Primary grounding point
(3) Auxiliary grounding point (4) Fan tray handle
S6850-2C
Figure 75 S6850-2C front panel
(1) Expansion module 1 (2) Expansion module 2
