The S9850-4C switch comes with expansion slot 1 empty and the other three expansion slots each
installed with a filler panel. You can install one to four expansion modules for the switch as needed.
In Figure 78, four LSWM18
CQ interface modules are installed in the expansion slots.
The S9850-4C switch comes with power module slots PWR2 and PWR3 empty and the other two
power module slots each installed with a filler panel. You can install two to four power modules for the
switch as needed. In Figure 79, four LSV
M1AC650 power modules are installed in the power module
slots.
The S9850-4C switch comes with the two fan tray slots empty. You must install two fan trays of the
same model for the switch. In Figure 79,
two LSWM1BFANSC fan trays are installed in the fan tray
slots.

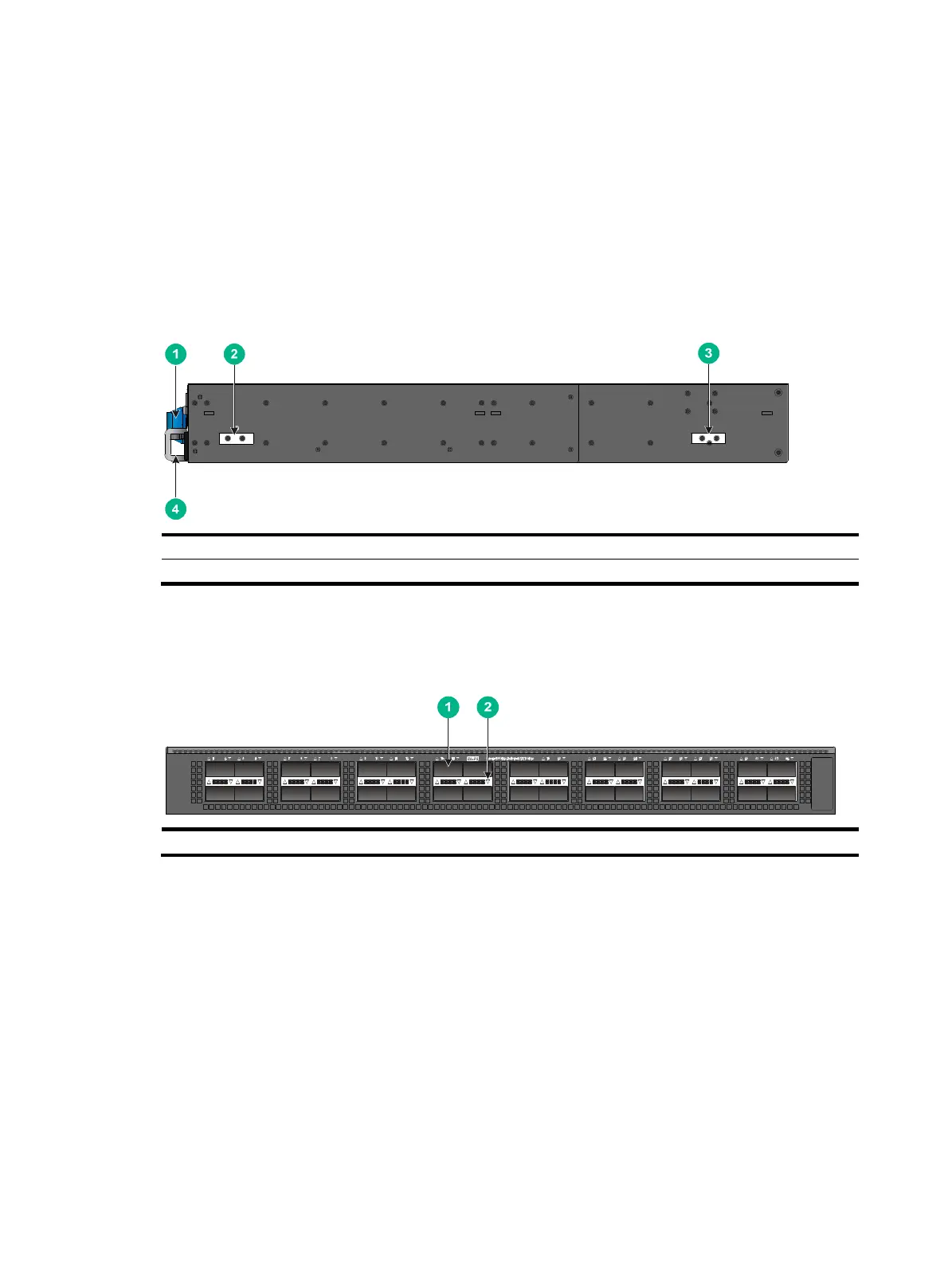

Figure 80 S9850-4C left panel
(1) Fan tray handle (2) Primary grounding point
(3) Auxiliary grounding point 1 (4) Power module handle
S9850-32H
Figure 81 S9850-32H front panel
(1) QSFP28 port (2) QSFP28 port LED
