Figure 59 Installing the LSWM18CQ interface module
Removing an expansion module
CAUTION:
• Before you remove an expansion module, remove the cable from it to avoid cable damage.
• If you are not to install a new expansion module after removing the original one, install a filler
panel in the slot to prevent dust and ensure good ventilation.
To remove an expansion module:
1. Prepare an anti-static bag.
2. Wear an ESD wrist strap and make sure the wrist strap makes good skin contact and is reliably
grounded.
3. Press the latch to release the ejector lever as shown by callout 1 in Figure 60.
4. Rotate out
ward the ejector lever as shown by callout 2 in Figure 60.
5. Pull out the e
xpansion module slowly out of the expansion slot, as shown by callout 3 in Figure
60.
6. Place the re
moved expansion module in the anti-static bag.

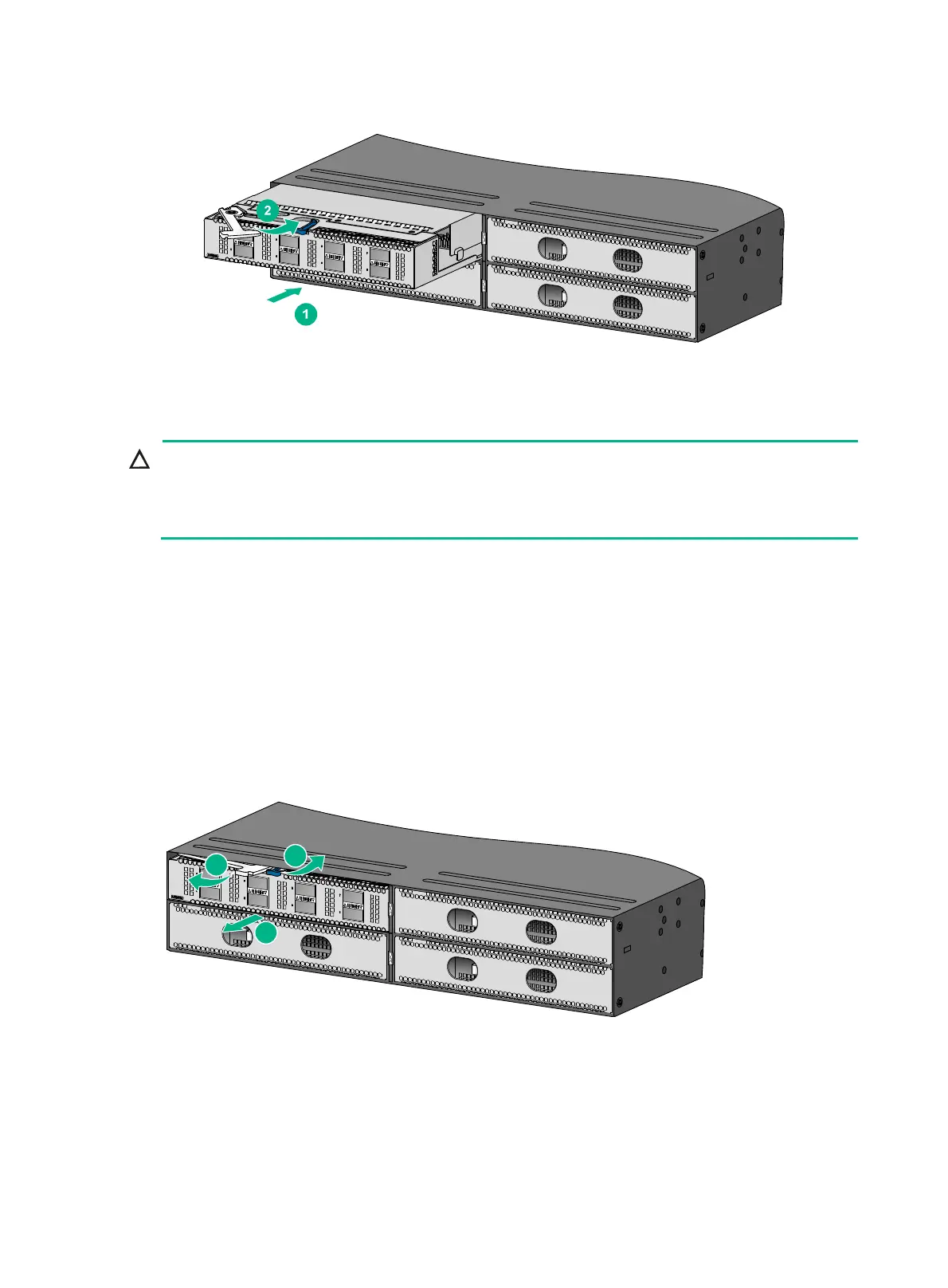

Figure 60 Removing an LSWM18CQ interface module
1
2
3
