12

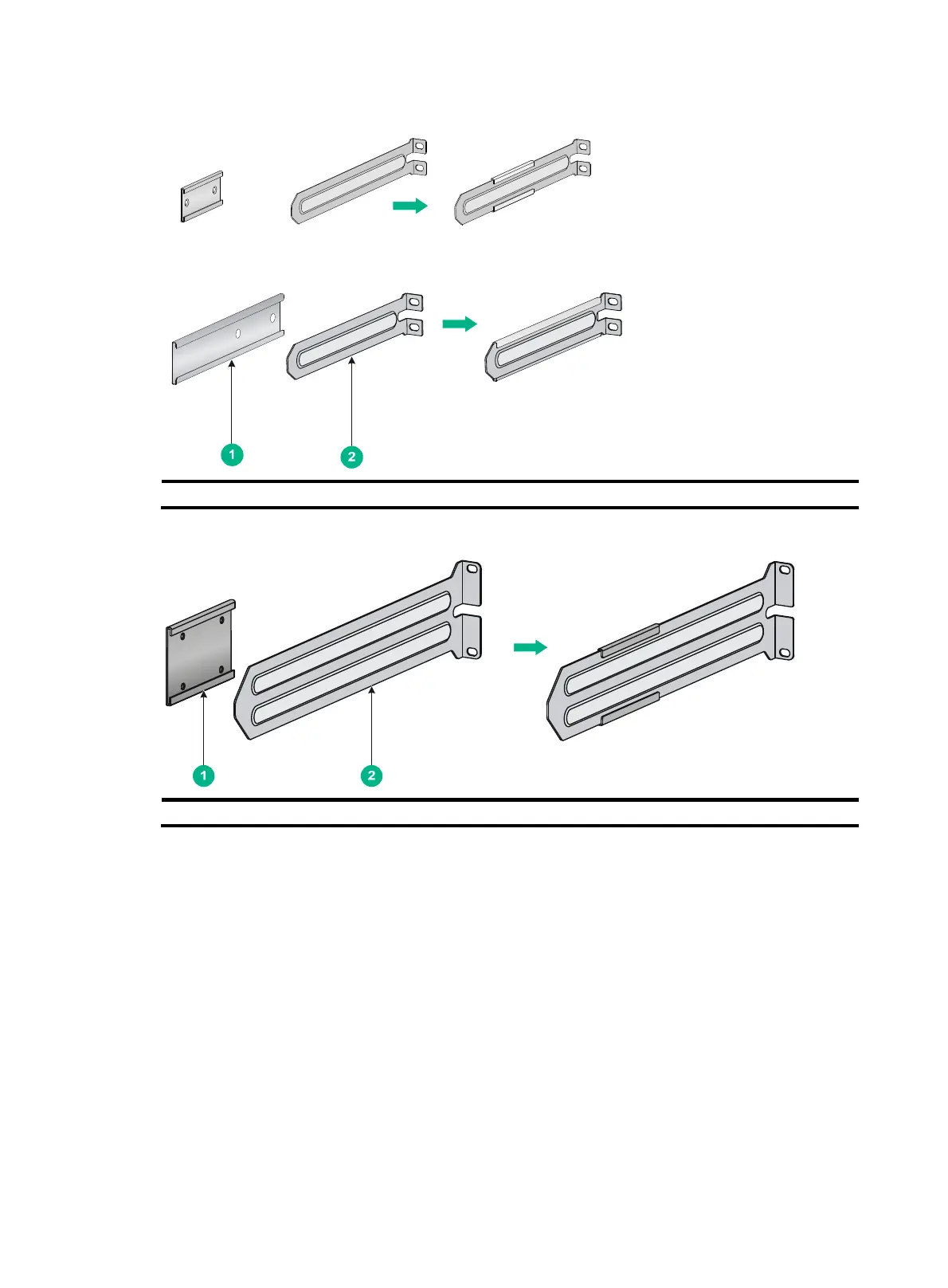

Figure 15 1U short slide rail and chassis rail
Figure 16 1U super-short slide rail and chassis rail
(1) Chassis rail (2) Super-short slide rail
Figure 17 2U slide rail and chassis rail
(1) Chassis rail (2) Slide rail
Mounting brackets, chassis rails, and grounding cable
installation positions
The switch has one mounting position near the network ports and one mounting position near the
power modules for mounting brackets.
The S6850-56HF switch provides two grounding points: primary grounding point (with a grounding
sign) and auxiliary grounding point, as shown in Figure 18. The
S6850-2C switch provides two
grounding points: primary grounding point (with a grounding sign) and auxiliary grounding point, as
shown in Figure 19.
The S9850-4C switch provides three grounding points: primary grounding point
(with a grounding sign), auxiliary grounding point 1, and auxiliary grounding point 2, as shown
in Figure 20. The S985
0-32H switch provides two grounding points: primary grounding point (with a
grounding sign) and auxiliary grounding point, as shown in Figure 21.
Select install
ation positions for the mounting brackets, chassis rails, and grounding cable as
required.
