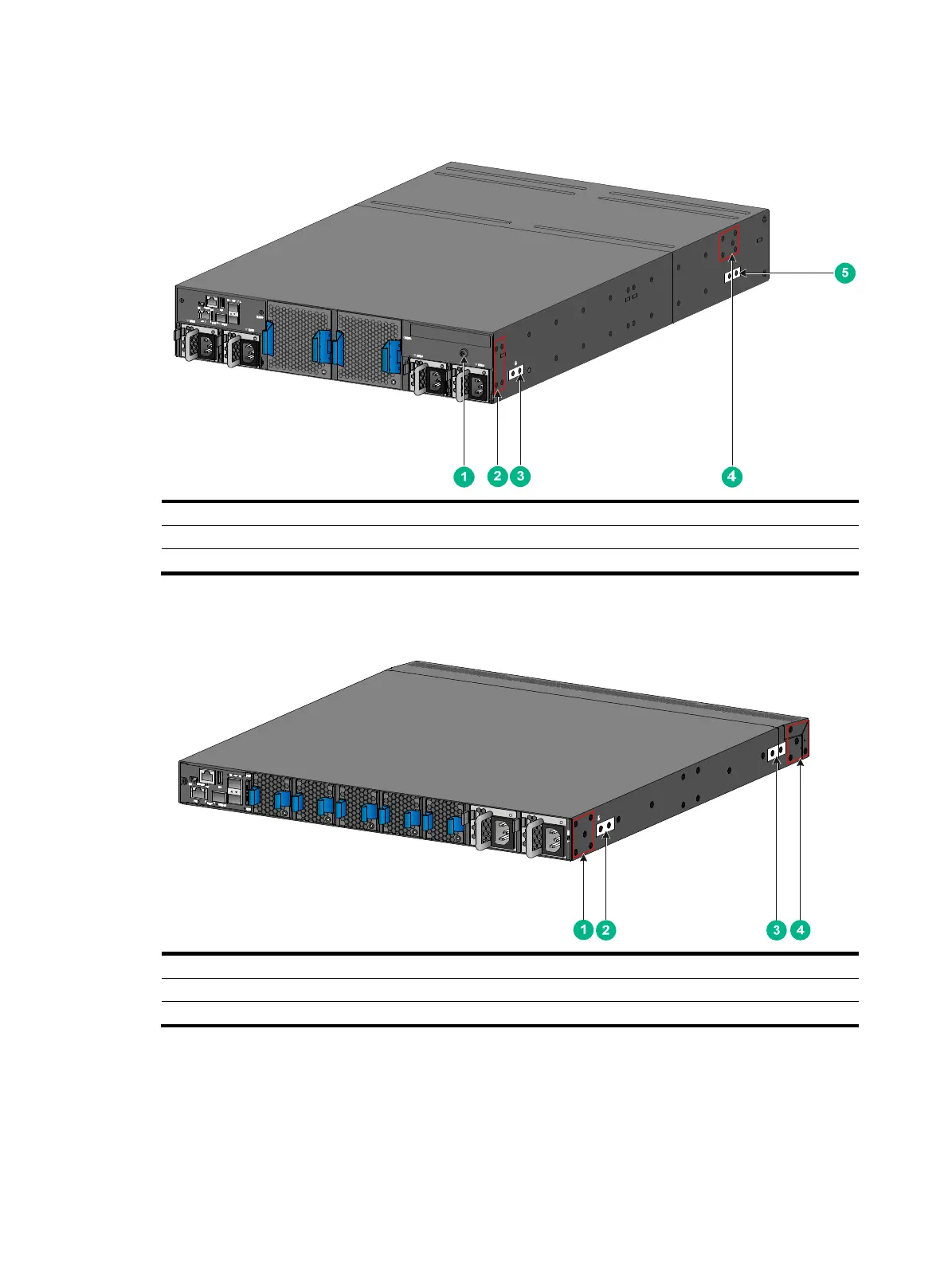

Figure 20 Mounting brackets and grounding cable installation positions on the S9850-4C
switch
(1) Auxiliary grounding point 2 (2) Power module-side installation position for the mounting bracket
(3) Primary grounding point (4) Port-side installation position for the mounting bracket
(5) Auxiliary grounding point 1
Figure 21 Mounting brackets and grounding cable installation positions on the S9850-32H
switch
(1) Power module-side installation position for the mounting bracket
(2) Primary grounding point (3) Auxiliary grounding point
(4) Port-side installation position for the mounting bracket
