55
S9850-4C

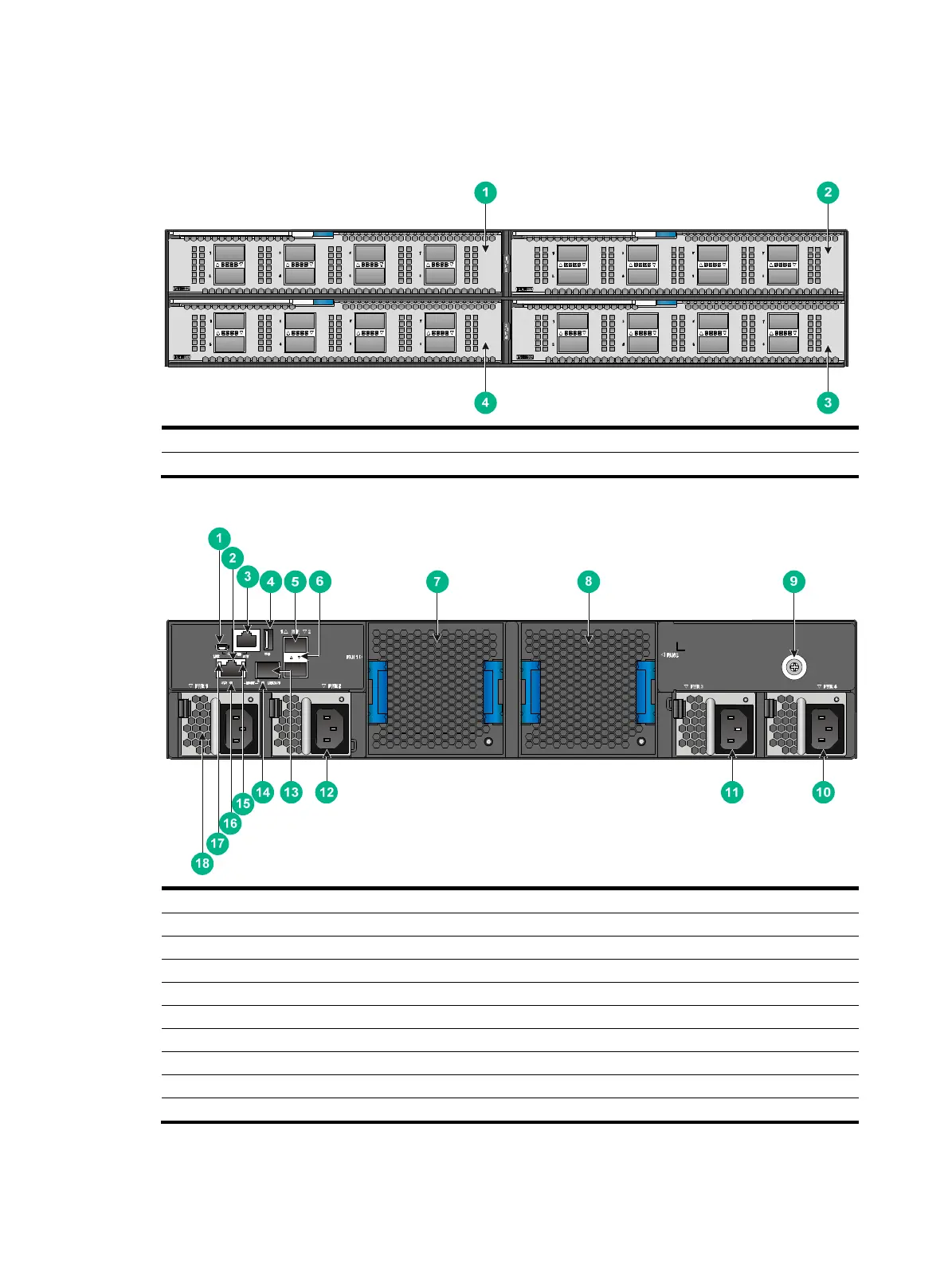

Figure 78 S9850-4C front panel
(1) Expansion module 1 (2) Expansion module 2
(3) Expansion module 4 (4) Expansion module 3
Figure 79 S9850-4C rear panel
(1) Mini USB console port (2) Copper management Ethernet port
(3) Serial console port (4) USB port
(5) SFP port (6) SFP port LED
(7) Fan tray 1 (8) Fan tray 2
(9) Grounding screw (auxiliary grounding point 2) (10) Power module 4
(11) Power module 3 (12) Power module 2
(13) Fiber management Ethernet port
(14) Fiber management Ethernet port LED (LINK/ACT)
(15) Copper management Ethernet port LED (ACT) (16) System status LED (SYS)
(17) Copper management Ethernet port LED (LINK) (18) Power module 1
