130
(Optional.) Locating drives
(Optional.) Erasing drives
(Optional.) Modifying storage controller settings
(Optional.) Clearing storage controller configuration
Accessing the storage controller configuration screen

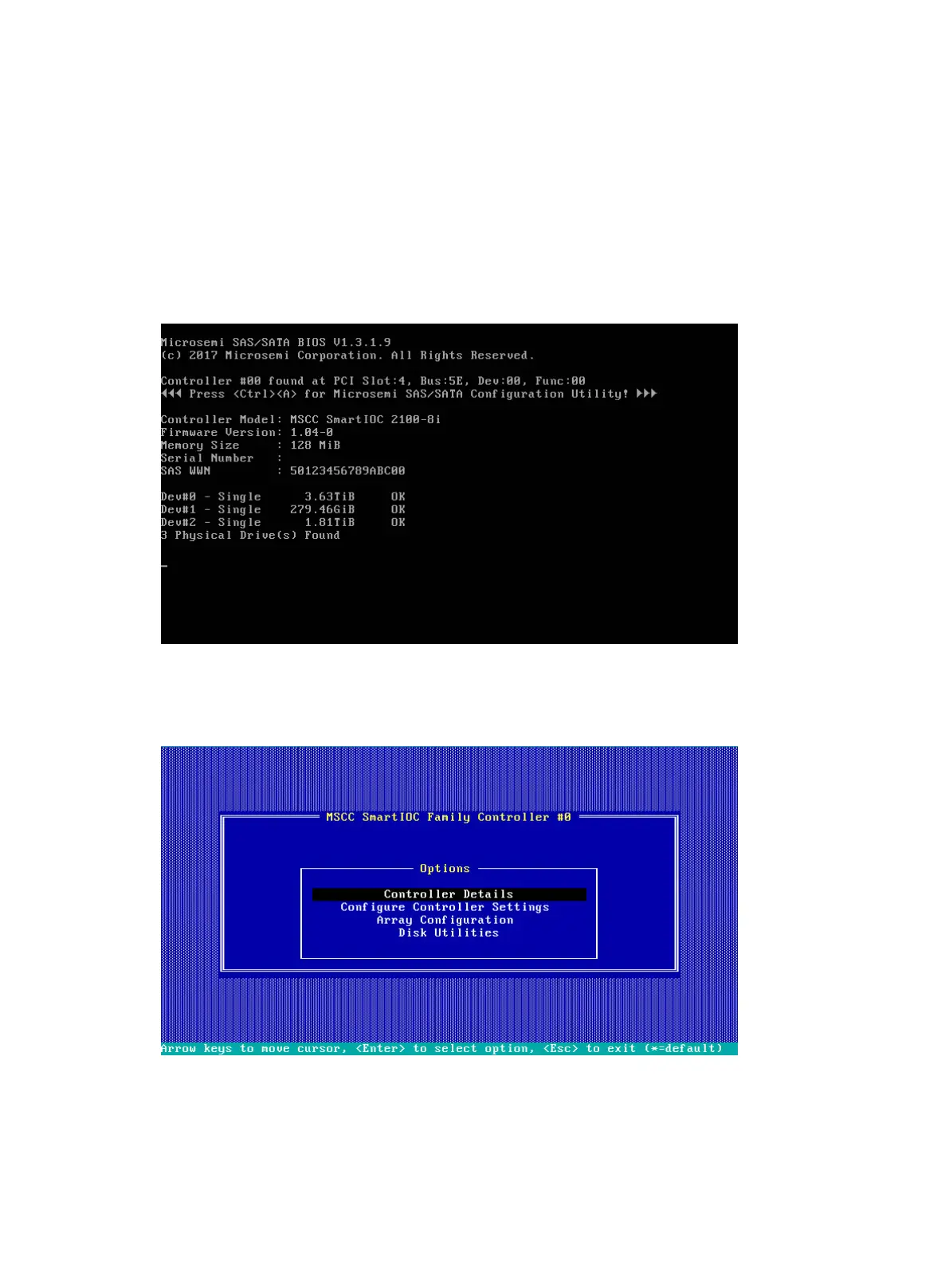

During server POST as shown in Figure 188, press Ctrl+A.
Figure 188 Pressing Ctrl+A
The storage controller configuration screen opens as shown in Figure 189. You can view basic
RAID array status and version information on the storage controller configuration screen.
Figure 189 Storage controller configuration screen
Switching the operating mode
1. On the storage controller configuration screen as shown in Figure 190, select Configure
Controller Settings and press Enter.
