H3C WX Series Configuration Guide

42
Hardware
Ethernet interface configuration prerequisites
WX5002
WX5002V2
WX5004
No special requirements. You can directly
configure a GE interface on the access
controller.
Trusted priority type configuration example
Network requirements
As shown in Figure 5 , the AC processes packets for AP 1, AP 2, and AP 3.
Configure the AC to enqueue packets according to their 802.1p priority and use the
user-defined priority mapping tables for priority mappings.

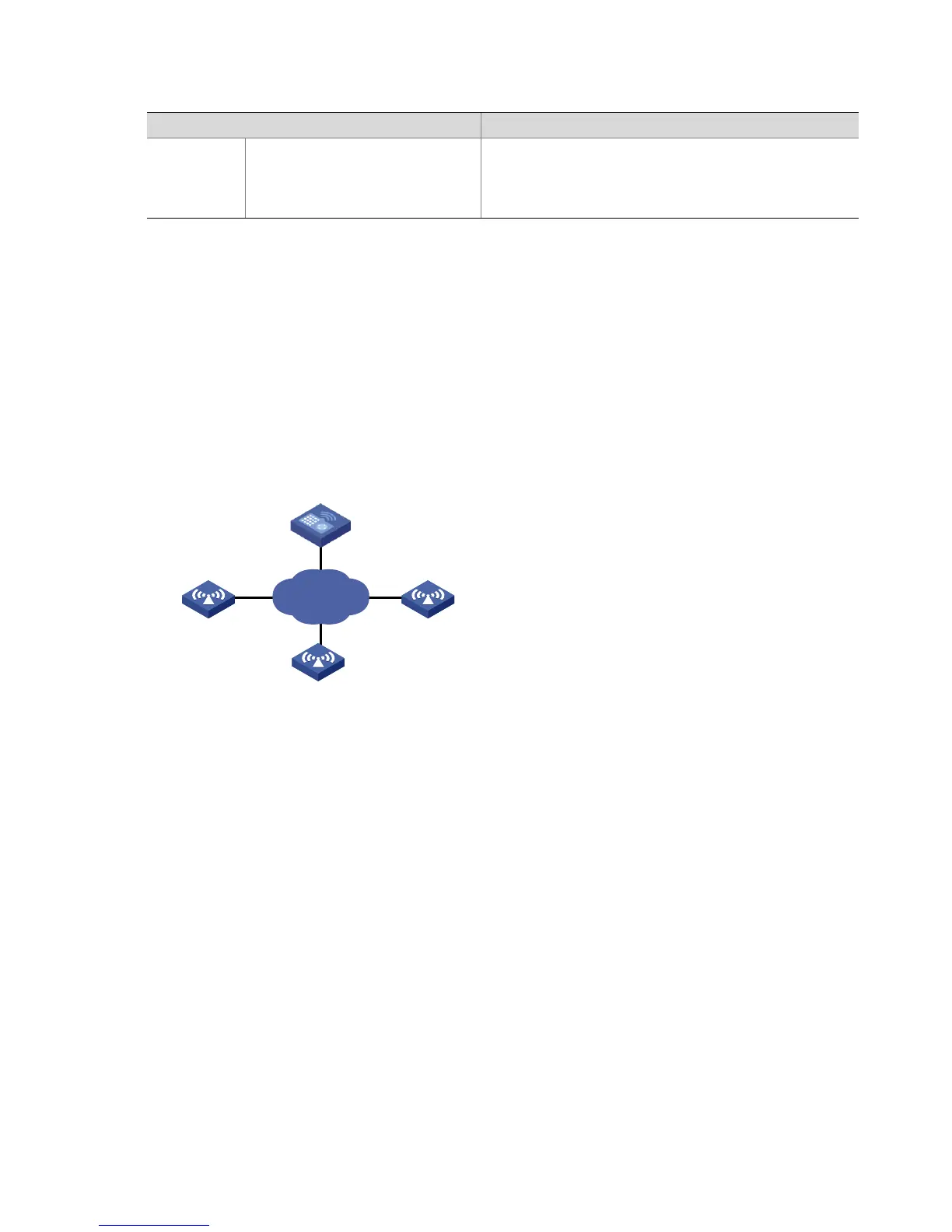

Figure 5 Network diagram for trusted priority type configuration
AC
GE 1/0/1
IP network
AP 1
AP 3
AP 2
Configuration procedure
1. Enter system view:
<AC> system-view
2. Enter dot1p-lp priority mapping table view and modify the priority mapping table
parameters:
[AC] qos map-table dot1p-lp
[AC-maptbl-in-dot1p-lp] import 0 1 export 0
[AC-maptbl-in-dot1p-lp] import 2 3 export 1
[AC-maptbl-in-dot1p-lp] import 4 5 export 2
[AC-maptbl-in-dot1p-lp] import 6 7 export 3
[AC-maptbl-in-dot1p-lp] quit
3. Configure GigabitEthernet 1/0/1 to use the 802.1p priority of incoming packets for
priority mapping:
[AC] interface gigabitethernet 1/0/1
[AC-GigabitEthernet1/0/1] qos trust dot1p
