Installation
3.2 Installation overview
The tasks that follow are necessary to install the particle counter (refer to Figure 6):
1. Install the counter on a flat surface or a wall (section 3.4.1 on page 13)
2. Install the vacuum tubing (section 3.4.2 on page 14)
3. Install the sample probe and tubing (section 3.4.3 on page 16)
4. Install the wires for power and communications (section 3.6 on page 18)

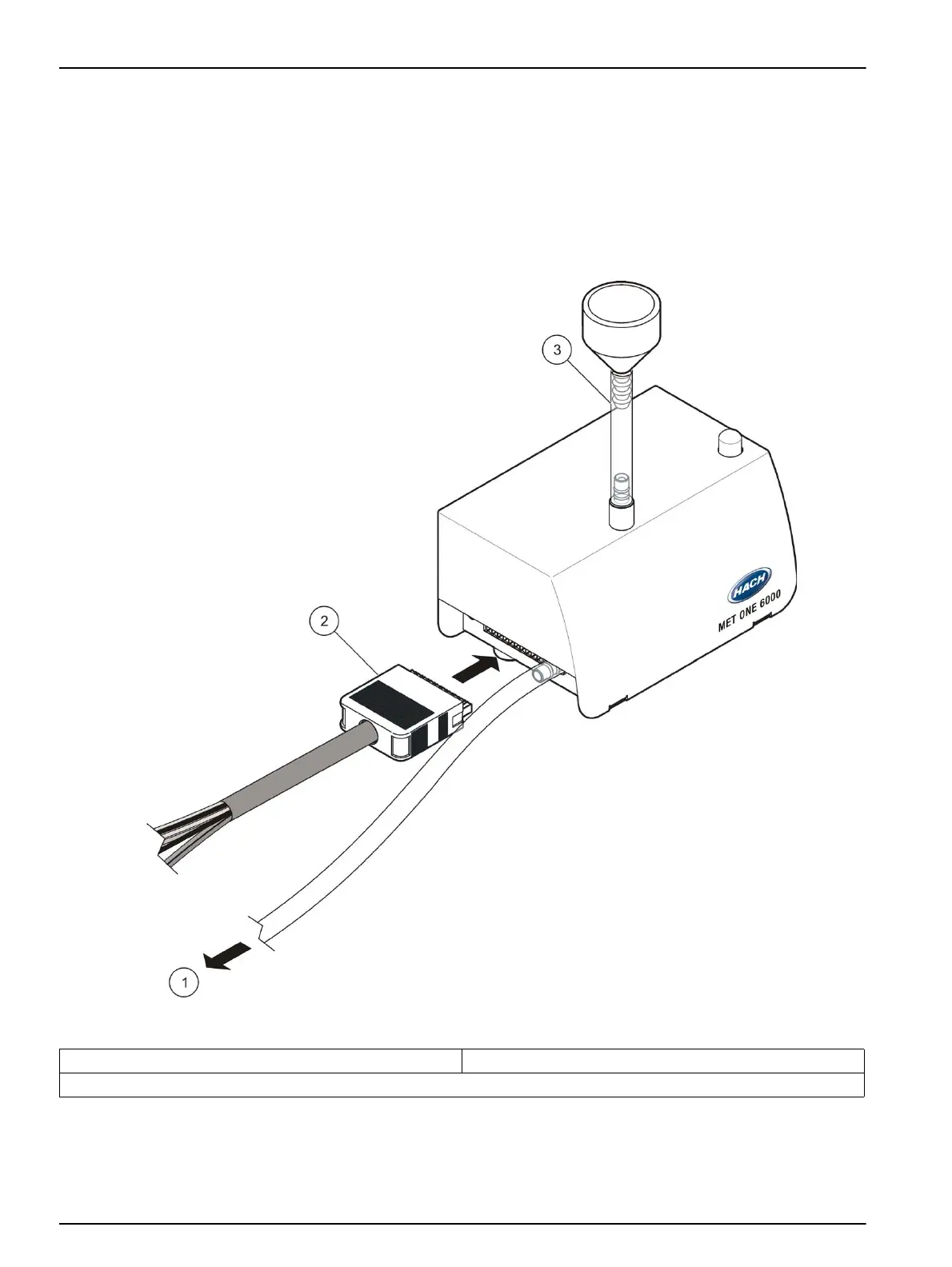

Figure 6 Installation overview
1 To vacuum pump 3 Isokinetic probe—direct mount
2 Connector for power and communications
