4.2.2.1 LAN setup
For configuration through a network, only the LAN settings can be changed. All other
settings must be changed through local setup by direct connection to the service port on
the counter or through a ModbusTCP connection.
1. In the utility program, select
LAN SETUP. The LAN Based Setup window will be
shown (Figure 24). The software will search for LAN instruments.
2. If LAN instruments are found, the instruments will be listed as shown in Figure 24.
Select an instrument to show the LAN Instrument Settings.
3. Change the instrument settings if necessary. Refer to Figure 23 and Table 9 for a
description of the settings. When configured as necessary, click
SAVE SETTINGS.
A ModbusTCP connection can be made where all the Modbus registers are available.
The user can then access all configuration options in the Modbus register map (refer
to Appendix A on page 53).
Error messages
If an error message such as “Invalid IP setting” is shown, refer to Table 9 to find the
values that can be used. Enter a value in the range for the setting.

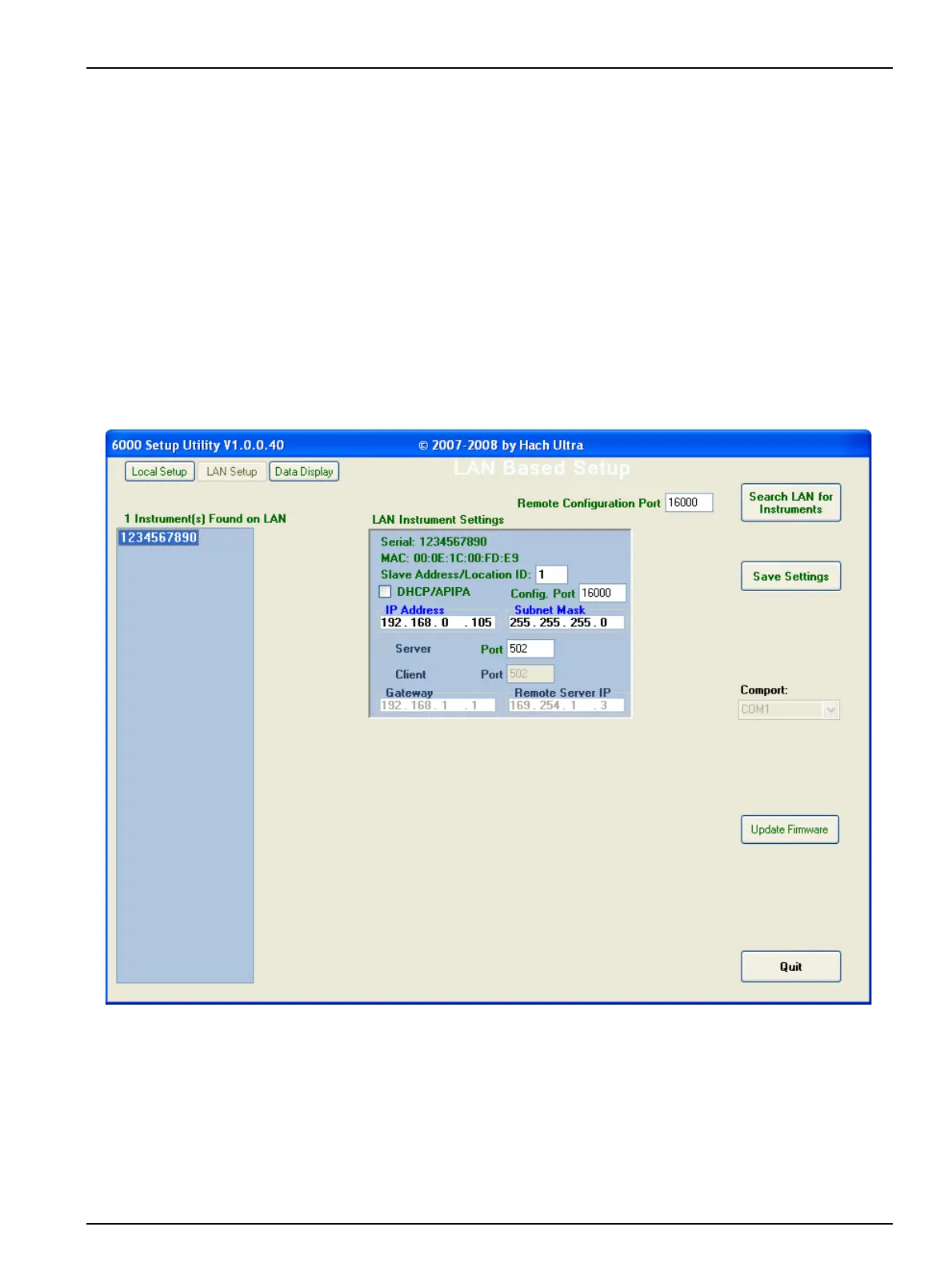

Figure 24 LAN setup for Ethernet units
